CB-TOUCH7-T: 7"
Photo may vary from actual product
CB-TOUCH12-T: 12"
CB-TOUCH12-T: 12"

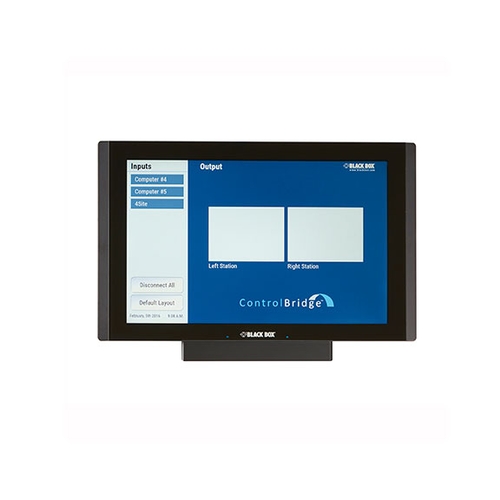

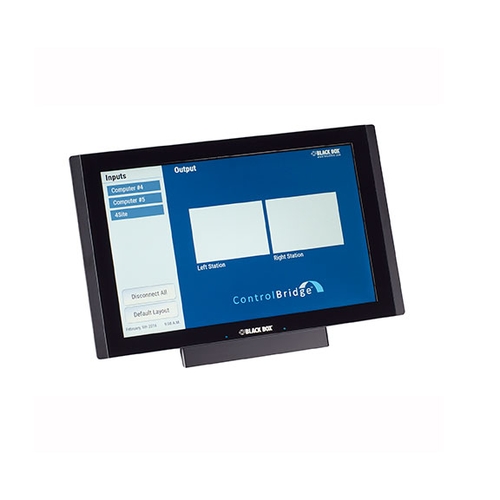

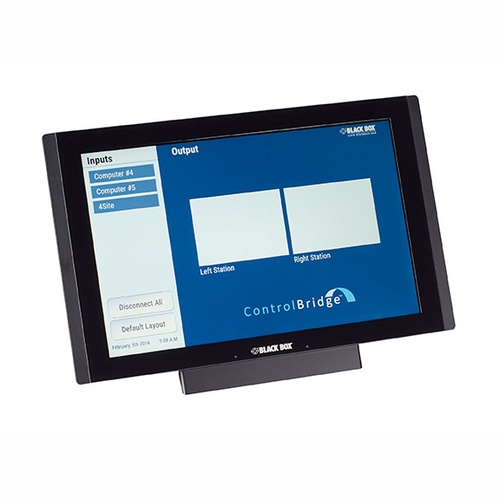

ControlBridge® Touch Panel


Manage conference room, control room, and room automation systems with this Ethernet IP enabled touch panel.


  • Use alone to control Ethernet-enabled devices in conference rooms, classrooms, and control rooms.
  • Or pair with the ControlBridge® Processor to control other I/O devices.
  • Use one panel for multimedia integration, presentation control, as well as control of lighting, window shades, and other room systems.
  • Or use our ControlBridge® Control Room Application for KVM with an active matrix touch-screen display that make makes your life easier.
  • Provides bidirectional control of any IP enabled device through the Ethernet port.
  • Projected capacitive touch (PCT) is impervious to light interference so it works in any setting.
  • Active matrix touch-screen display offers resolutions of 1280 x 800.
  • View stunning 32-bit (True Color) images.
  • Full-motion streaming video preview.
  • Video preview enables streaming or downloaded video to be viewed anywhere on the display.
  • Sleek design features edge-to-edge glass.
  • Includes built-in microphone, speakers, and light and motion sensors.
  • Provides a single-cable Ethernet connection as well as a PoE power supply.
  • Set up through a standard web browser.
  • A real-time clock enables scheduling applications.
  • Choose between 7” or 12” displays.
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code


7"
  ControlBridge® Touch Panel
ControlBridge® Touch Panel
  CB-TOUCH7-T

12"
  ControlBridge® Touch Panel
ControlBridge® Touch Panel
  CB-TOUCH12-T

Accessories

  Product     Code

  ControlBridge® License for Mobile Device
ControlBridge® License for Mobile Device
  CB-APP-LIC
  ControlBridge® Processor - Small to Mid-size
ControlBridge® Processor
  CB-CP100

This wired, tabletop panel provides an elegant one-touch solution for controlling Ethernet-enabled systems in meeting rooms, class rooms, and control rooms. Use the touch panel alone or with a ControlBridge® Processor to control devices with I/O interfaces. You can program the panel with the included ControlBridge Builder software.

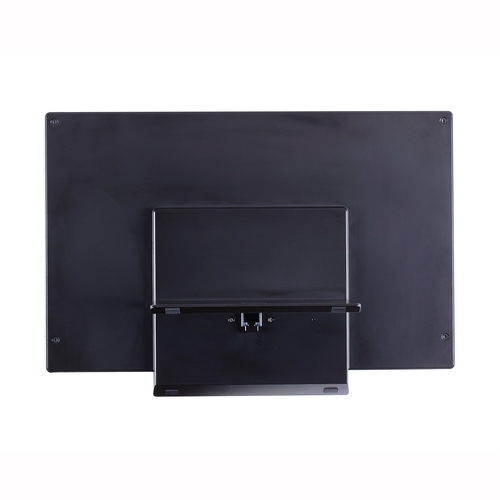

The touch panel features a clean, modern design with an edge-to-edge glass front. The slim, low profile aluminum body includes a tabletop stand. It’s designed to sit on tables without obstructing views. And, the Ethernet cable connection is hidden in the back.

The video preview feature enables streaming or downloaded video to be viewed anywhere on the display. The color touch-screen panel offers stunning true-color images with resolutions of 1280 x 800 pixels. The projected capacitive touch overlay enables the panels to be used in any light setting. And it’s easy to keep clean.

The panel includes a light sensor for automatic backlight dimming. A proximity sensor enables the backlight to be automatically turned on. A single Ethernet cable connection provides easy network integration. And, PoE eliminates the need for separate power cables.

ControlBridge® in KVM Applications
ControlBridge® Control Room Application for KVM is an active matrix touch-screen display for control rooms that will save you money and make your life easier — . Forget about expensive custom programming. The ControlBridge® Control Room touch-screen command center does the work for you by auto-discovering all devices on your Black Box DKM or Agility KVM networks.

Complete your ControlBridge® Touch Panel solution with:

Use your ControlBridge® Touch Panel with these solutions:
