Store home > KVM > Desktop KVM > IP Enabled KVM Switches > Digital Video > Emerald® SE KVM-over-IP - DisplayPort, USB 2.0, Audio, RJ45

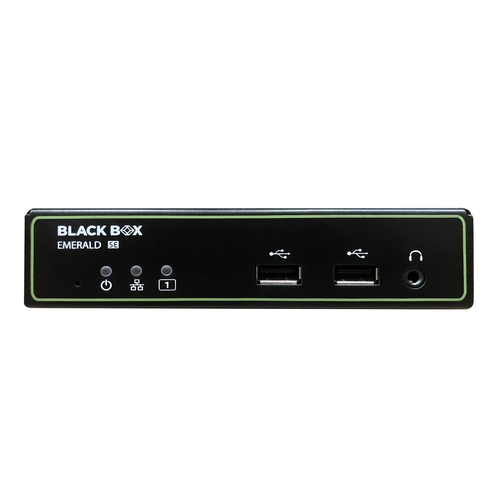

Emerald® SE KVM-over-IP - DisplayPort, USB 2.0, Audio, RJ45
Photo may vary from actual product
EMD2000SE-DP-T: Single-Monitor, V-USB 2.0, Audio, Transmitter
EMD2000SE-DP-T: Single-Monitor, V-USB 2.0, Audio, Transmitter
EMD2002SE-DP-T: Dual-Monitor, V-USB 2.0, Audio, Transmitter
EMD2002SE-DP-T: Dual-Monitor, V-USB 2.0, Audio, Transmitter
EMD2000SE-DP-R: (1) DisplayPort, V-USB 2.0, Audio, Receiver
EMD2000SE-DP-R: (1) DisplayPort, V-USB 2.0, Audio, Receiver
EMD2000SE-DP-R: (1) DisplayPort, V-USB 2.0, Audio, Receiver
EMD2002SE-DP-R: Dual-Monitor, V-USB 2.0, Audio, Receiver
EMD2002SE-DP-R: Dual-Monitor, V-USB 2.0, Audio, Receiver


Emerald® SE KVM-over-IP - DisplayPort, USB 2.0, Audio, RJ45


Full HD KVM extension and switching for physical and virtual machines over IP


  • Next-generation KVM extension and matrix switching simplifies access to both physical and virtual servers
  • Visually lossless HD DisplayPort video up to 1920 x 1200 at 60 Hz resolution
  • Low IP bandwidth requirements of 120-Mb or less required for 1080p video
  • Supports USB HID, transparent USB 2.0, and audio
  • Manage bandwidth and user access, deploy new endpoints, update firmware, and more from the receiver’s OSD
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)

  Product       Code
(1) DisplayPort
V-USB 2.0, Audio

Receiver
  KVM-over-IP Receiver - Single-Monitor, DisplayPort, USB 2.0, Audio, RJ45
KVM-over-IP Receiver - Single-Monitor, DisplayPort, USB 2.0, Audio, RJ45
  EMD2000SE-DP-R
Single-Monitor
V-USB 2.0, Audio

Transmitter
  KVM-over-IP Transmitter - Single-Monitor, DisplayPort, USB 2.0, Audio, RJ45
KVM-over-IP Transmitter - Single-Monitor, DisplayPort, USB 2.0, Audio, RJ45
  EMD2000SE-DP-T
Dual-Monitor
V-USB 2.0, Audio

Receiver
  KVM-over-IP Receiver - Dual-Monitor, DisplayPort, USB 2.0, Audio, RJ45
KVM-over-IP Receiver - Dual-Monitor, DisplayPort, USB 2.0, Audio, RJ45
  EMD2002SE-DP-R

Transmitter
  KVM-over-IP Transmitter - Dual-Monitor, DisplayPort, USB 2.0, Audio, RJ45
KVM-over-IP Transmitter - Dual-Monitor, DisplayPort, USB 2.0, Audio, RJ45
  EMD2002SE-DP-T

Accessories

  Product     Code

Rack/Mount Kit
  Emerald® SE/PE Rackmount Bracket for SE or PE DVI models
Emerald® SE/PE Rackmount Bracket for SE or PE DVI models
  EMD2000-RMK2
  Emerald® Spare PSU for Emerald 4K and PE KVM-over-IP Transmitter & Receiver - 12-VDC
Emerald® Spare PSU for Emerald 4K and PE KVM-over-IP Transmitter & Receiver - 12-VDC
  EMD4000-PSU
  Emerald® Rackmount Bracket for (3) SE or PE Unit KVM Extenders
Emerald® Rackmount Bracket for (3) SE or PE Unit KVM Extenders
  EMD2000-RMK3
  Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access - (1) Single link DVI-D, 4x V-USB 2.0, audio, VM-access, Receiver
Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access
  EMD2000SE-R
  Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access - (2) Single link DVI-D, 4x V-USB 2.0, audio, VM-access, Receiver
Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access
  EMD2002SE-R
  Emerald® Remote Access App Connection Licenses - 1 Connection License
Emerald® Remote Access App Connection Licenses
  EMDRM1-LIC
  Emerald® Remote Access App Connection Licenses - 10 Connection Licenses
Emerald® Remote Access App Connection Licenses
  EMDRM10-LIC
  Emerald® Remote Access App Connection Licenses - 20 Connection Licenses
Emerald® Remote Access App Connection Licenses
  EMDRM20-LIC
  Emerald® Remote Access App Connection Licenses - 5 Connection Licenses
Emerald® Remote Access App Connection Licenses
  EMDRM5-LIC

High-Performance KVM
Emerald SE provides users with a seamless desktop experience anywhere on a TCP/IP network while allowing the actual hardware to be housed in a corporate data center or in the cloud. The performance of Emerald SE allows easy deployment on standard corporate networks and even across WANs. The solution enables the same experience of a desktop PC even for media-rich applications, like video and photo editing.

Emerald SE supports DisplayPort video with resolutions up to 1920 x 1200, transparent USB 2.0, and analog audio. Link them in a point-to-point KVM extension over CATx up to 328 ft./100 m or even farther using an IP or WAN connection. Or connect multiple transmitters and receivers to an Emerald or IP switch to create a matrix switching setup.

Virtualization Support
Emerald SE simplifies access to both physical and virtual servers with high-performance connectivity to virtual machines, supporting VMware®, Microsoft®; HyperV®, and Citrix®, using RDP 8.1/RemoteFX.

Limitless Scaling
Your Emerald KVM network may start small, but is scalable to meet your future needs just by adding endpoints. Connect up to 32 endpoints; no additional KVM management appliance, cards, or chassis is required. For larger deployments, use our Boxilla KVM management solution.

A welcome addition to the Emerald product family, Emerald SE works seamlessly with the rest of the Emerald product family and these popular Black Box KVM product families:

  • DKM proprietary, direct-connect KVM system
  • Freedom II Multi-Monitor Switch with Glide-and-Switch technology
  • ControlBridge, our system for one-touch, multisystem control
  • Boxilla KVM manager
