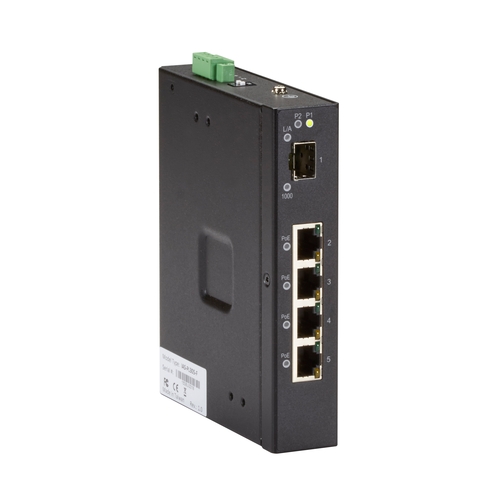

Industrial Gigabit Ethernet PoE+ Switch - Extreme Temperature, 5-Port
Photo may vary from actual product
LIE401A: -40 to +75° C, (4) RJ45 PoE+ + (1) SFP, 12-58 VDC
LIE401A: -40 to +75° C, (4) RJ45 PoE+ + (1) SFP, 12-58 VDC


Industrial Gigabit Ethernet PoE+ Switch - Extreme Temperature, 5-Port


Compact switch with fiber-uplink for harsh environments.

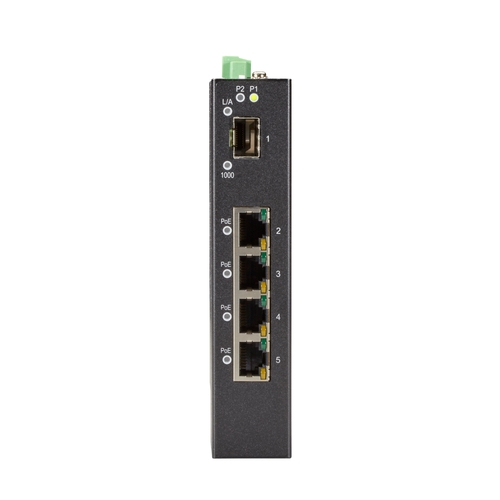

  • One SFP port and 4 10-/100-/1000-Mbps RJ45 PoE+ switch ports.
  • 4 ports support 802.3at PoE+, power sourcing equipment up to 30W per port.
  • The SFP interface supports 100/1000 Mbps fiber SFPs.
  • Suitable for dusty or dirty environments with a temperature range between -40 to +75º C.
  • Includes DIN rail mount kit.
  • Switch delivers features normally found in more expensive switches.
  • PoE+ 802.3af and at compliant. Provides up to 30 W per port.
  • Use in harsh applications, including factories, oil/gas fields, military vehicles/ships, HVAC controls, security and surveillance, and more.
  • Rated for extreme temperatures of -40 to +75° C.
  • 10-/100-/1000-Mbps ports are autosensing for speed and duplex.

  Product       Code
-40 to +75° C
(4) RJ45 PoE+ + (1) SFP

12-58 VDC
  Industrial Gigabit Ethernet PoE+ Switch - Extreme Temperature, 5-Port
Industrial Gigabit Ethernet PoE+ Switch - Extreme Temperature, 5-Port
  LIE401A
This industrial switch does not include a power supply. Use it with the MDR-40-12, MDR-40-24, SDR-120-48, or the SDR-240-48.

Accessories

  Product     Code

  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403

  • IP30-rated, fanless housing.
  • Plug-and-play setup.
  • Built-in smart alarm warns of power or port failures.
  • LEDs indicate power, alarm, speed, and link/activity.
  • DIN rail or wall mount.

Compact industrial gigabit Ethernet switch with 4 10/100/1000 Mbps RJ45 PoE+ ports and 1 SFP port. The 4 RJ45 ports support 802.3at PoE+, power sourcing equipment up to 30W per port. The SFP interface supports 100/1000 Mbps fiber SFPs. Typical applications include IP security camera and wireless access point backhaul. The switch is ideal for security/suveillance or for enabling WLAN in challenging environments such as distributon centers or warehouses. These heavy-duty switches feature an extended operating temperature range. Their rugged metal cases serve as heat sinks to dissipate heat, so there are no fans to go bad. The case is sealed to resist environmental contaminants such as dust, dirt, moisture, smoke, and insects. They're an ideal choice for demanding industrial applications such as factory floors. This switch delivers line rate, non blocking throughput with a 2K MAC address table. Ports are autonegotiating for speed and half/full duplex and include LED indicators to view port status. This unmanaged switch is plug and play and does not require any configuration.

Reliable and scalable.

The very reliable LIG401A Industrial Ethernet Switch, (4) 10/100/1000-Mbps, (1) GE SFP, is designed for the far edges of your network. Use it in harsh, indoor environments with temperature extremes of -40° to +75°C, such as loading docks or monitoring stations. This rugged switch comes in an IP30-rated enclosure that can be DIN-rail or wall mounted.

The Gigabit Ethernet SFP port gives you networking flexibility and scalability. You can extend your network over multimode or single-mode fiber at distances up to 80 kilometers, depending on the SFP you choose. Black Box SFPs are recommended.

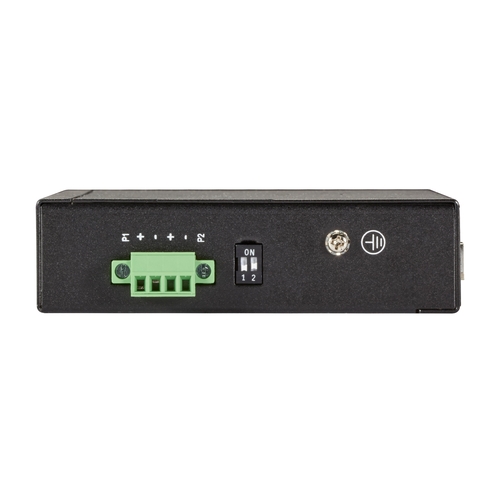

For redundancy, the switch has two DC power inputs. If one power source fails, the switch automatically falls over to the second power source. In addition, an alarm will alert you in case of a power failure.

PoE+ PSE.

The switch is ideal for powering PDs such as security cameras, wireless access points, building access devices, and automation equipment in harsh environments. It's particularly useful for powering devices in hard-to-reach locations with limited access to AC power outlets, such a ceilings, closets, loading docks, factory floors, and more.

A multitude of applications.

This switch can be used in a wide variety of applications, such as:
  • Security and surveillance, particularly to backhaul IP security camera data.
  • Military applications, especially in ships and other vehicles.
  • Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
  • Oil and gas fields or remote equipment monitoring and control.
  • Building automation for controlling HVAC and lighting systems.
