LB512A-KIT-R2: Extender Kit, 2 wires, 15Mbps, 90 - 260 VAC
Photo may vary from actual product

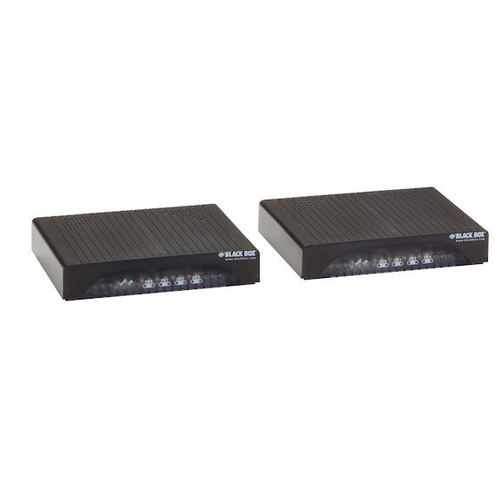

G-SHDSL Ethernet Extender Kit, 2-Wire 15-Mbps


Get cost-effective Ethernet extension up to 15 Mbps over voice-grade cable.


  • An advanced auto-rate algorithm automatically determines the best possible baud rate for each connection and sets up the extender without the need for user interface.
  • Plug-and-play! Just plug it in, power it on, and it's up and running.
  • Max line rate of 15 Mbps.
  • Max reach of 10 Kilometers
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code
Extender Kit
2 wires
15Mbps

90 - 260 VAC
  G-SHDSL Ethernet Extender Kit, 2-Wire 15-Mbps
G-SHDSL Ethernet Extender Kit, 2-Wire 15-Mbps
  LB512A-KIT-R2

This kit includes a pair of auto-rate Ethernet extenders and uses a standard 2-wire connection, which simplifies your life and provides a cost-effective network extension by enabling you to make the most of your pre-existing twisted-pair infrastructure.

You'll be able to connect remote LANs across distances and at speeds previously unheard of. An auto-rate feature ensures that you achieve the highest possible speed on each connection.

It's easy to use, too. Plug-and-play means that you'll be up and running in seconds, and built-in MDI-X works with either a straight-through or crossover cables.

The pair auto senses the data rate up to 15 Mbps at a distance of 0.7 miles (1.2 km) to provide reliable broadband connectivity with full-duplex symmetric rates, with lower speeds at longer distances of up to about 6.4 miles (10.4 km).

Distance on 24 AWG (0.5 mm)

Reach Table:
192kbps - 6.9km
256kbps - 6.9km
512 kbps - 6.7km
768 kbps - 5.9km
1024 kbps - 5.6km
1280 kbps - 5.6km
1536 kbps - 5.6km
2048 kbps - 5.03km
2304 kbps - 5.03km
4608 kbps - 3.35km
5696 kbps - 2.74km
