Compact Media Converters

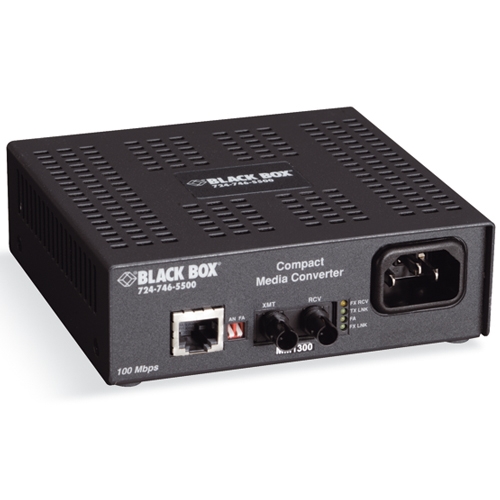

Photo may vary from actual product


Compact Media Converters


All the features you're looking for in a space-saving chassis


  • 100-Mbps fibre versions provide seamless integration of copper with fibres
  • Forget the bulky external power supply - integral universal power supply autosenses 95-240 VAC for use around the world
  • Standard multimode 1300nm models support distances up to 2 kilometres; Single-Mode Plus models give you eight times that distance!
  • Feature externally accessible port settings
  • Auto MDI/MDIX on each twisted-pair port
  • LinkLoss and FiberAlert automatically notify you of 'silent failures' on the fibre side
  • Half- or full-duplex operation
  • Warranty: 6 Year Double Diamond™ Warranty (Standard)

  Product       Code
(1) 100 Mbps RJ45
(1) 100BaseFX MM SC
2km
Multimode
SC

AC
  Compact Media Converters
Compact Media Converters
  LHC002A-R4

Compact Media Converters are only 1U high, making them an ideal choice when space is at a premium. Plus, they feature internal power supplies so you don't need to make space for bulky external transformers. Because the power supplies are autosensing 95-240 VAC, you can use these converters internationally.

Port settings are externally accessible, and each port includes diagnostic LEDs. Twisted-pair ports feature a straight-through/cross switch. BNC ports feature a termination switch.

LinkLoss and FiberAlert notify you automatically of connection failures on the fibre side. You can enable or disable LinkLoss/FiberAlert with a DIP switch.
Multimode 100BASE-FX models send data up to 2 kilometres or 10 kilometres. Single-mode models send data up to 20 kilometres. Powerful Plus models run up to 40 kilometres.

The converters are fully compliant with IEEE 802.3 10BASE-T, 100BASE-FL, 10BASE2, 100BASE-TX and 100BASE-FX protocols and cabling standards.
