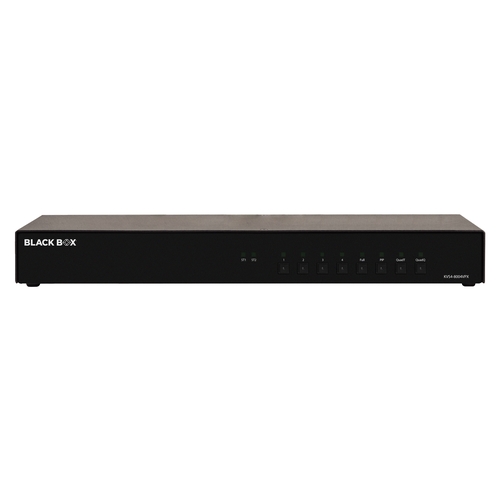

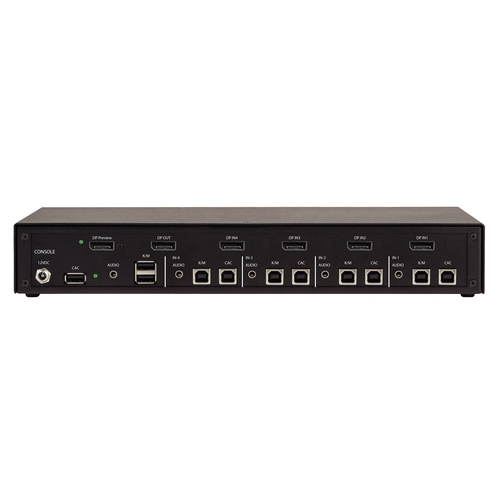

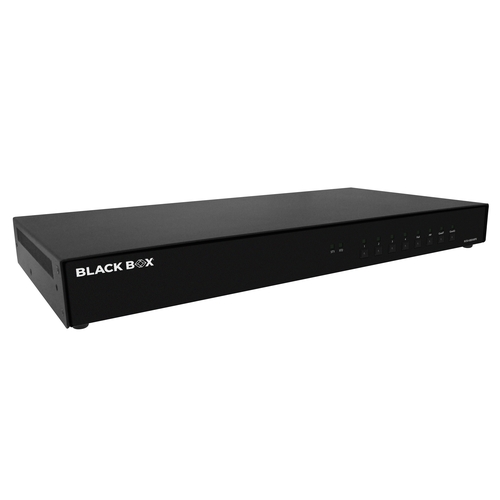

Secure NIAP 4.0 Certified KVM MultiViewer - 4-Port, Single-Monitor, DisplayPort, CAC
Photo may vary from actual product
KVS4-8004VPX: Dual Monitor DisplayPort Multiview, 4 ports, (2) USB 1.1/2.0, audio, CAC
KVS4-8004VPX: Dual Monitor DisplayPort Multiview, 4 ports, (2) USB 1.1/2.0, audio, CAC


Secure NIAP 4.0 Certified KVM MultiViewer - 4-Port, Single-Monitor, DisplayPort, CAC


Displays up to four secure DisplayPort computers on a single screen. Complies with NIAP PP PSD version 4.0


  • Tested and certified to NIAP Protection Profile version 4.0
  • Supports DisplayPort video up to 3840 x 2160 at 60 Hz (Dual-Link), USB HID, and stereo audio
  • Equipped with anti-tampering protection such as tamper evident hologram seals, chassis intrusion, fixed firmware, and automatic keyboard data clearing
  • Absolute secure isolation between data paths
  • Secure EDID learning and emulation
  • Non-reprogrammable ROM
  • Fully configurable CAC port
  • Supports balanced speaker outputs and switching

  Product       Code
Dual Monitor DisplayPort Multiview
4 ports

(2) USB 1.1/2.0, audio, CAC
  Secure NIAP 4.0 Certified KVM MultiViewer - 4-Port, Single-Monitor, DisplayPort, CAC
Secure NIAP 4.0 Certified KVM MultiViewer - 4-Port, Single-Monitor, DisplayPort, CAC
  KVS4-8004VPX

Accessories

  Product     Code

Adaptors & Adaptor Cables
  KVM Cable - Each end (1) USB, (2) DisplayPort, (1) 3.5mm Audio, 6-ft. (1.8-m)
KVM Cable - Each end (1) USB, (2) DisplayPort, (1) 3.5mm Audio, 6-ft. (1.8-m)
  SKVMCBL-2DP-06
  KVM Cable - Each end (1) USB, (2) DisplayPort, (1) 3.5mm Audio, TAA Compliant, 6-ft. (1.8-m)
KVM Cable - Each end (1) USB, (2) DisplayPort, (1) 3.5mm Audio, TAA Compliant, 6-ft. (1.8-m)
  SKVMCBL-2DP-06TAA
  Secure KVM Analog Remote Controller - Remote Controller
Secure KVM Analog Remote Controller
  KVSC-4
  Secure KVM Touchscreen Controller - Touchscreen Controller
Secure KVM Touchscreen Controller
  KVSC-16

The Secure KVM Multiviewer allows displaying up to four secure DisplayPort computers on a single screen. Using a single set of keyboards and mice, operators can control all connected sources right from their desktops. Multiple modes such as Quad-View, T-Quad, and PiP, enable you to display the video from those four computers in a 4 x 4 matrix view on one monitor, all at the same time, and in real-time. The Secure KVM Multiviewer is the perfect solution for operators or analysts in defense or intelligence who need to access and control multiple sources with different security levels.

The multiviewer has isolated channels to ensure that data is not leaked between secure ports and the outside world. To prevent eavesdropping attempts through vulnerable devices, the multiviewer supports uni-directional data flow from computer to peripheral. Mechanical, electrical, and optical isolation stop hacking and data leaks in environments where security is critical. Plus, secure EDID learning prevents unwanted and unsecure data from being transmitted through DDC lines. The Secure KVM Multiviewer uses protected firmware to keep intruders from re-programming or reading the firmware. Keyboard/internal cache wiping and chassis intrusion protection provide even more security. The Secure KVM Multiviewer also uses anti-tamper switches and tamper-evident seals to shield your confidential data.

Why Secure KVM
The Secure KVM Multiviewer is designed for use in any application where sensitive data must be protected, including defense, government agencies, and intelligence. The multiviewer is NIAP PP 4.0 certified and equipped with the highest security features that meet today’s Information Assurance safe control standards. Unique hardware configurations prevent data leakage between PCs and connected peripherals, eliminating potential cyber threats.
