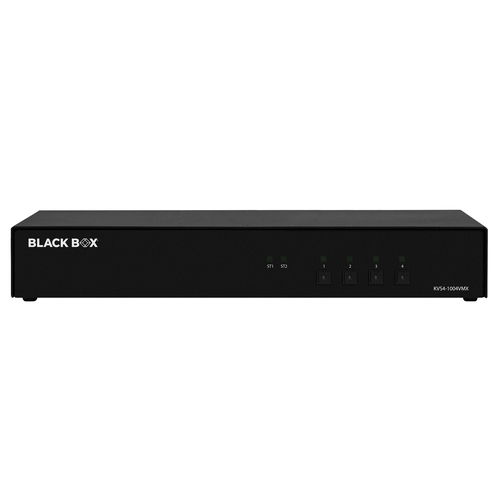

Secure NIAP 4.0 Certified KVM Switch - DisplayPort with MST, HDMI Out
Photo may vary from actual product

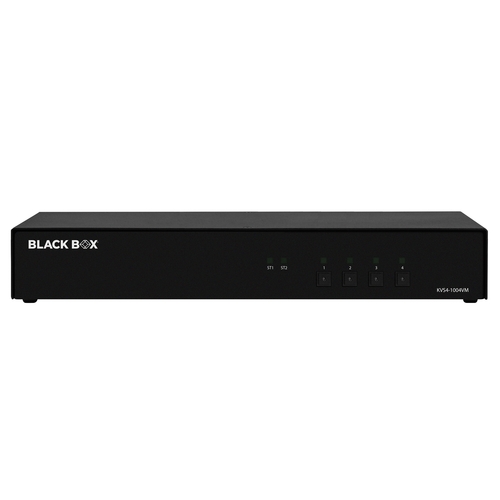

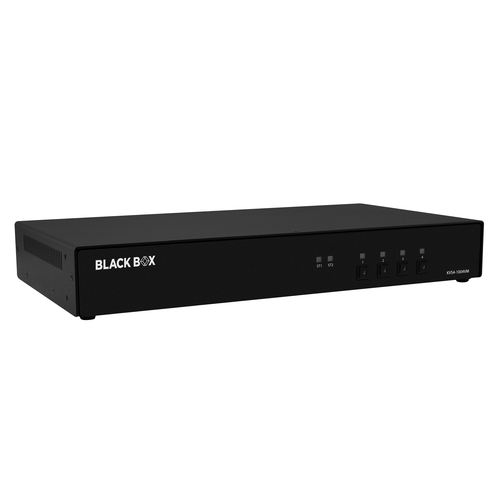

KVS4-1004VM: Single Monitor DisplayPort MST in, HDMI Out, 4 ports, (2) USB 1.1/2.0, audio
KVS4-1004VM: Single Monitor DisplayPort MST in, HDMI Out, 4 ports, (2) USB 1.1/2.0, audio

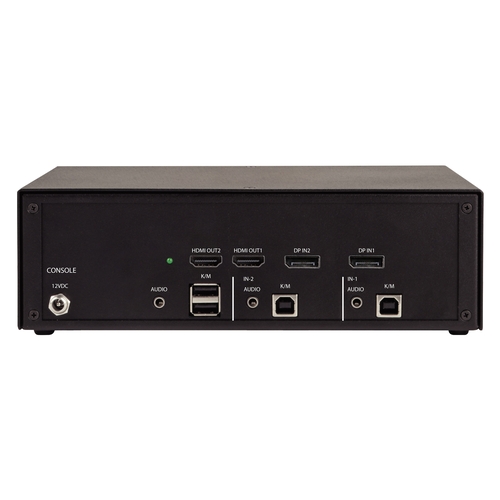

KVS4-1002VM: Single Monitor DisplayPort MST in, HDMI Out, 2 port, (2) USB 1.1/2.0, audio
KVS4-1002VM: Single Monitor DisplayPort MST in, HDMI Out, 2 port, (2) USB 1.1/2.0, audio

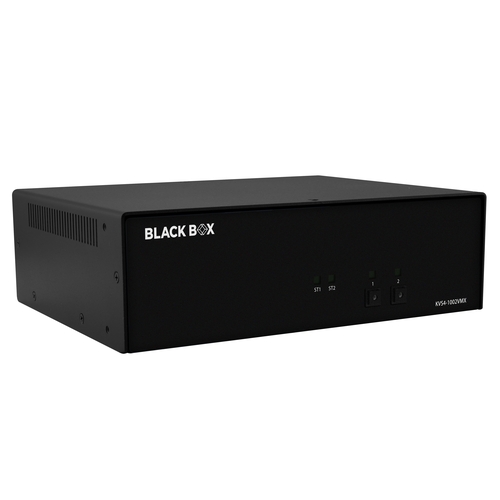

KVS4-1002VMX: Single Monitor DisplayPort MST in, HDMI Out, 2 port, (2) USB 1.1/2.0, audio
KVS4-1002VMX: Single Monitor DisplayPort MST in, HDMI Out, 2 port, (2) USB 1.1/2.0, audio
KVS4-1002VMX: Single Monitor DisplayPort MST in, HDMI Out, 2 port, (2) USB 1.1/2.0, audio

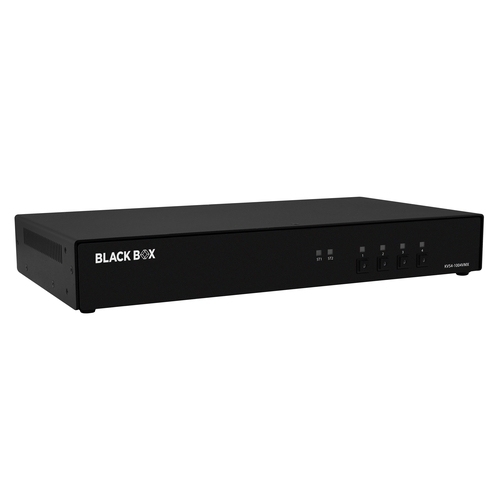

KVS4-1004VMX: Single Monitor DisplayPort MST in, HDMI Out, 4 ports, (2) USB 1.1/2.0, audio
KVS4-1004VMX: Single Monitor DisplayPort MST in, HDMI Out, 4 ports, (2) USB 1.1/2.0, audio
KVS4-1004VMX: Single Monitor DisplayPort MST in, HDMI Out, 4 ports, (2) USB 1.1/2.0, audio

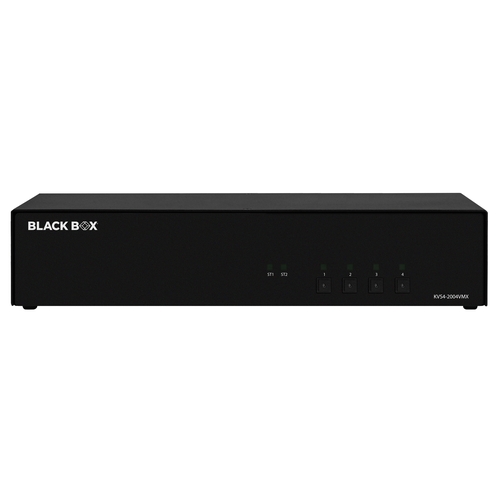

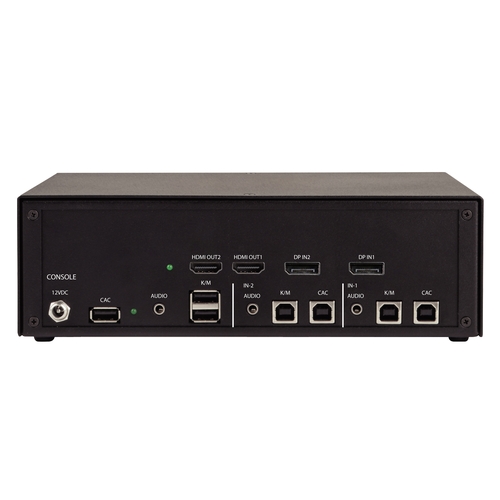

KVS4-2004VMX: Dual Monitor DisplayPort MST to HDMI, 4 ports, (2) USB 1.1/2.0, audio, CAC


Secure NIAP 4.0 Certified KVM Switch - DisplayPort with MST, HDMI Out


Control up to 2 or 4 DisplayPort computers from a single workplace using 1 set of keyboard and mouse and 1 or 2 HDMI monitors, with or without CAC


  • Certified for NIAP Protection Profile for Peripheral Sharing Device Version 4.0
  • Connects via Single-Monitor or Dual-Monitor HDMI video interface at the user side
  • Drives DisplayPort with MST signals at the source side
  • Made in the USA - TAA Compliant
  • Uses an external power supply
  • Choose models with or without CAC
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code
Single Monitor DisplayPort MST in, HDMI Out
2 port

(2) USB 1.1/2.0, audio
  Secure NIAP 4.0 Certified KVM Switch - DisplayPort with MST, HDMI Out
Secure NIAP 4.0 Certified KVM Switch - DisplayPort with MST, HDMI Out
  KVS4-1002VM

(2) USB 1.1/2.0, audio
  Secure NIAP 4.0 Certified KVM Switch - DisplayPort with MST, HDMI Out
Secure NIAP 4.0 Certified KVM Switch - DisplayPort with MST, HDMI Out
  KVS4-1002VMX
4 ports

(2) USB 1.1/2.0, audio
  Secure NIAP 4.0 Certified KVM Switch - DisplayPort with MST, HDMI Out
Secure NIAP 4.0 Certified KVM Switch - DisplayPort with MST, HDMI Out
  KVS4-1004VM

(2) USB 1.1/2.0, audio
  Secure NIAP 4.0 Certified KVM Switch - DisplayPort with MST, HDMI Out
Secure NIAP 4.0 Certified KVM Switch - DisplayPort with MST, HDMI Out
  KVS4-1004VMX
Dual Monitor DisplayPort MST to HDMI
4 ports

(2) USB 1.1/2.0, audio, CAC
  Secure NIAP 4.0 Certified KVM Switch - DisplayPort with MST, HDMI Out
Secure NIAP 4.0 Certified KVM Switch - DisplayPort with MST, HDMI Out
  KVS4-2004VMX

Accessories

  Product     Code

  Secure KVM Analog Remote Controller - Remote Controller
Secure KVM Analog Remote Controller
  KVSC-4
  Secure KVM Touchscreen Controller - Touchscreen Controller
Secure KVM Touchscreen Controller
  KVSC-16

Guard sensitive data in defense applications, secure control rooms, server operations, corporate, educational, medical, banking, insurance, transit, or industrial applications, and more. This switch uses mechanical, electrical, and optical signal isolation to prevent hacking and data leakage. Control KVM (Keyboard, Video, and Mouse) operation on up to 2 or 4 DisplayPort computers with 1 or 2 HDMI displays.

Complies with NIAP Protection Profile for Peripheral Sharing Device Version 4.0
The switches are tested and certified under the USA scheme for NIAP Protection Profile 4.0.

Front-Panel Buttons
Securely switch between sources.

Maximum Security
Inverted signals control data relays to guard connections against outside intrusion. Each port has an isolated data channel and each unit uses non-reprogrammable ROM with no data leakage between ports. Isolated connections also prevent data leaks between secure ports and the outside world when accessing classified and public networks over the internet.

Secure EDID Learn and Video Emulation
The switch emulates a keyboard and mouse for each attached computer via a USB cable. Selected and non-selected computers maintain a connection with the unit's keyboard-mouse emulation controllers, allowing for ultra-fast switching and restricting the discovery of newly connected peripherals during switching. Emulation also prevents the direct connection between peripherals and connected computers.

Tamperproof Seals
Built-in tamperproof seals and a long-life internal anti-tamper battery keep devices secure.

MST Transmits DP Signals
Multi-Stream Transport (MST) on DisplayPort 1.2 connectors provide a direct source-to-screens connection and enable a source PC or laptop to display signals on extra displays. With MST, duplicate your primary display, extend your display across several monitors, or create a video wall, without running more cables.

Optional CAC Port
Add a Common Access Card (CAC) reader at point-of-sale in retail or for access in other industries.
