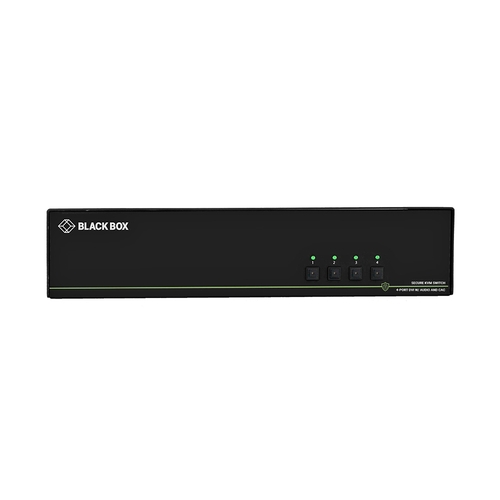

Secure KVM Switch, NIAP 3.0, DVI-I quad head
Photo may vary from actual product
SS4P-QH-DVI-UCAC: (4) DVI-I: Single/Dual Link DVI, VGA, 4 ports, USB Keyboard/Mouse, Audio, CAC
SS4P-QH-DVI-UCAC: (4) DVI-I: Single/Dual Link DVI, VGA, 4 ports, USB Keyboard/Mouse, Audio, CAC


Secure KVM Switch, NIAP 3.0, DVI-I quad head


Control four computers through a single user console with up to four monitors, while keeping full information assurance.


  • Reliable way to access up to four computers connected to different networks and security levels.
  • Isolated data channels keep sensitive data confidential and prevent from data leakage.
  • Control the systems through a single user console with up to four DVI-I monitors.
  • Native DVI-I resolution up to 2560x1600 @ 60Hz.
  • 4K Ultra-HD resolution up to 3840 x 2160 @ 30Hz via adapter.
  • Secure EDID learning and emulation allows connection to most monitors.
  • Supports balanced speakers output and switching.
  • Connect a USB or legacy PS/2 keyboard and mouse.
  • Fully advanced and configurable CAC port allow users to assign specific peripheral devices to the switch.
  • Works with Windows, Mac and Linux OS.
  • Front panel tactile buttons with LED indicator for the active system.
  • Features external locking AC power supply with Level VI efficiency.
  • See the In-depth information for additional security features.
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code
(4) DVI-I: Single/Dual Link DVI, VGA
4 ports

USB Keyboard/Mouse, Audio, CAC
  Secure KVM Switch, DVI-I, 4-Port, CAC NIAP 3.0 (quad head)
Secure KVM Switch, DVI-I, 4-Port, CAC NIAP 3.0 (quad head)
  SS4P-QH-DVI-UCAC

Accessories

  Product     Code

Adaptors & Adaptor Cables
  Secure KVM Switch Cable, DVI, USB, 3.5mm Audio, 3m
Secure KVM Switch Cable, DVI, USB, 3.5mm Audio, 3m
  SKVMCBL-DVI-10
  Secure KVM Switch Cable, DVI, USB, 3.5mm Audio, 1.8m
Secure KVM Switch Cable, DVI, USB, 3.5mm Audio, 1.8m
  SKVMCBL-DVI-06
  DVI-I Dual-Link Cable - Video Cable, DVI-I to DVI-I, M/M, 1.5m
DVI-I Dual-Link Cable
  DVI-I-DL-001.5M
  DVI-I Dual-Link Cable - Video Cable, DVI-I to DVI-I, M/M, 1m
DVI-I Dual-Link Cable
  DVI-I-DL-001M
  DVI-I Dual-Link Cable - Video Cable, DVI-I to DVI-I, M/M, 2m
DVI-I Dual-Link Cable
  DVI-I-DL-002M
  DVI-I Dual-Link Cable - Video Cable, DVI-I to DVI-I, M/M, 3m
DVI-I Dual-Link Cable
  DVI-I-DL-003M
  DVI-I Dual-Link Cable - Video Cable, DVI-I to DVI-I, M/M, 5m
DVI-I Dual-Link Cable
  DVI-I-DL-005M
  DVI-I Dual-Link Cable - Video Cable, DVI-I to DVI-I, M/M, 10m
DVI-I Dual-Link Cable
  DVI-I-DL-010M
  Stereo Audio Cable - 3.5-mm - M/M, 1.5m
Stereo Audio Cable - 3.5-mm
  EJ110-0005
  DVI-VGA Adapter - Video Adapter, DVI-I to VGA, M/F, none
DVI-VGA Adapter
  FA461
  HDMI to DVI Adapter - Video Adapter, HDMI to DVI, F/M, none
HDMI to DVI Adapter
  FA795-R2
  DVI-D to HDMI Adapter - Video Adapter, DVI-D to HDMI, M/F, 20.3 cm
DVI-D to HDMI Adapter
  VA-DVID-HDMI

Security Highlights:
  • Tested and certified to NIAP Protection Profile version 3.0.
  • Safeguards critical data from accidental transfers, unauthorized access, or compromised data.
  • Each port uses its own isolated data channel to ensure that data is not leaked between secure ports and outside world.
  • Mechanical, electrical, and optical isolation to prevent hacking and data leaks in environments where security is critical.
  • Protected firmware keeps intruders from re-programming or reading the firmware.
  • Keyboard, Mouse and Video emulation.
  • Keyboard/internal cache wiping.
  • Chassis intrusion protection.
  • Equipped with internal anti-tamper switches and Tamper-evident seals.
  • Perfect for any organization that handle sensitive or confidential data on separate networks with different levels of security.

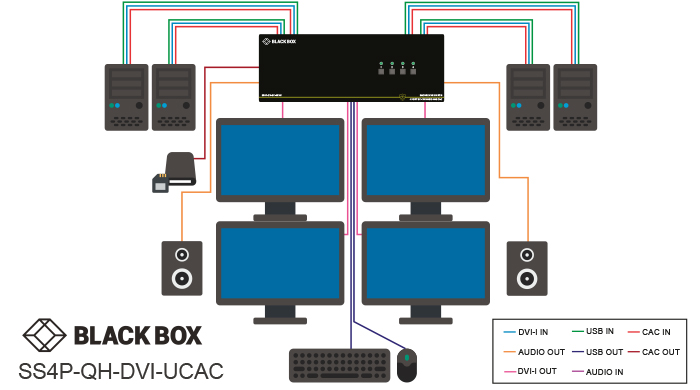

4-Port Secure KVM Switch for a single user console with quad DVI-I video
The Secure KVM Switch -featured on this page- supports one user console with up to four DVI- or VGA- monitors, USB keyboard and mouse, audio from the connected computer. Connections with legacy PS/2 keyboard and mouse are also supported via adapters. The additional CAC-port supports not only CAC devices, such as smart-card and biometric readers, you may also assign specific peripheral devices to this port, bolstering security. Once a peripheral device has been registered by an authenticated admin, users can then switch the connection between that device and the PC’s along with KVM switching. Tactile front-panel buttons with LED indicators allow you to change the active computer connection in simple and safe way while eliminating the need for unsecure hotkeys.

About Secure KVM
NIAP PP3.0 certified Secure KVM Switches from Black Box offer a secure desktop access solution to safeguard against cyber intrusion for government/military agencies, finance, healthcare, traffic control and educational facilities alike. The Black Box NIAP PP3.0 certified Secure KVM Switches provide ultra-secure switching between up to 16 standard personal/portable computers, servers or thin clients running operating systems such as Windows or Linux from an ergonomic workspace.

Broad Secure KVM Switch portfolio for every application and every industry
The Secure KVM Switch range from Black Box is one of the widest in the industry. Different applications and industry have differing requirements of centralized computer access. This portfolio has a suitable solution for every configuration:
  • KVM Switches with 2-,4, 8- or 16- computer ports
  • 4K digital and analogue video options featuring consoles with up to four monitors
  • Single User or Matrix Switches for up to four users
  • KM switches with dedicated computer-monitor connections and mouse switching
  • 4-Port Multiviewer KVM Switch featuring a full screen and a 4-in-1 windowing display
  • Single-Port KVM Protector

Why secure KVM
Connecting peripherals such as keyboard, mouse and speakers to a PC introduces potential data leakage and hacking risks. There are no filters nor is there data detection and protection features between the PC and peripherals using traditional KVM Switches.

Tested to the latest NIAP PP3.0 security profile
Secure KVM Switches are designed for use in secure defense and intelligence applications where sensitive data must be protected. The Secure KVM Switches from Black Box are NIAP PP 3.0 certified and equipped with the highest security features that meet today’s Information Assurance safe control standards. The switches contain unique hardware configurations that prevent data leakage between PCs and connected peripherals that eliminates any potential cyber threat.

Multi-level security for strict information assurance
An absolute isolation of the mechanical, electrical and optical signals including air gapping prevents hacking and data leakage between the ports and outside world. Each port of the Secure KVM Switch uses its own isolated data channels. Upfront switching on another target computer, the KVM switch erases the internal cache and keyboard data to ensure that no residual data remains in the channel. The fixed secure firmware/ROM is non-reprogrammable and keeps intruders from reading, reprogramming via unwanted firmware upgrades, or physically removing.

Always-on Tamper-proof design
The Secure KVM Switches feature active Anti-tamper switches, external hologram tamper-evident seals and a long-life internal Anti-tampering battery. If the cover is removed from the chassis, the KVM Switch becomes inoperable to protect against any attempt of physical intrusion.

Common Access Card (CAC Support)
The Secure KVM Switches are available with a fully advanced and configurable CAC port that supports CAC devices like smart cards and biometric readers. Even further, authenticated admins can register and assign specific peripheral devices to the CAC port. Users can then switch the assigned device along with the KVM switching of the connected computers.

Ultra-fast Switching
Secure Video & Aux emulation allows for ultra-fast switching and restricts discovery of newly connected displays during switching operations this prevents unwanted and unsecure data from getting transmitted between the computers and the display. This shields systems from potential vulnerabilities

SECURE EDID LEARN AND VIDEO EMULATION
The Secure KVM Switches simulate a generic EDID as default, allowing it to operate most of the connected monitors. Both selected and non-selected computers maintain a constant connection with the unit’s video emulation controllers, allowing for ultra-fast switching and restricting discovery of newly connected monitors during switching operations. Upon activating the KVM, the unit will quickly and automatically learn new EDID for specific monitors. The unit then prevents unwanted and unsecure data from getting transmitted through DDC lines by means of secure EDID learning and emulation.
