Radian Video Wall Controller Capture Card - HDMI 1.4, 4K60/1080p, 4-Channel

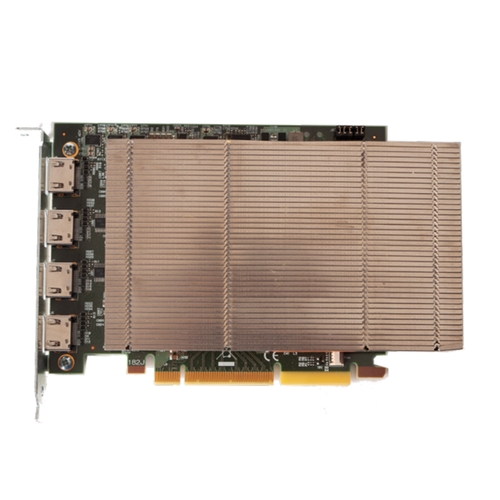

Photo may vary from actual product
VCC-HD-4-H: HD, HDMI, (4) channels HD capture card with HDMI splitter cables


Radian Video Wall Controller Capture Card - HDMI 1.4, 4K60/1080p, 4-Channel


Capture four channels of HDMI video, with two channels up to 4K60, and two up to 1080p60


  • For use with Radian Video Wall Controller Solutions
  • Four channels of HDMI 1.4 capture with HDCP support
  • 2x297 Mhz channels support up to 4K60
  • 2x165 Mhz channels support up to 1080p60
  • PCIe Gen3 x8 with 6.4 Gbps of capture bandwidth
  • 768MB Frame Buffer Memory
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code
HD, HDMI

(4) channels HD capture card with HDMI splitter cables
  Radian Video Wall Controller Capture Card - HDMI 1.4, 4K60/1080p, 4-Channel
Radian Video Wall Controller Capture Card - HDMI 1.4, 4K60/1080p, 4-Channel
  VCC-HD-4-H

When building a video wall system, high performance video content is a must to ensure vibrant and effective display. This Radian Video Wall Controller Capture Card provides four HDMI 1.4 capture channels with HDCP support, with two supporting inputs up to 4K60 and two supporting up to 1080p60, offering the highest quality of video capture performance.

In addition, it contains built-in Windows® WDM support, and can be used for streaming applications with Windows Media Encoder to compress and stream captured video, and then replay the video using Windows® Media Player. This capture card can be used with any application compatible with Windows® DirectShow technology.

DirectShow drivers for WDM Streaming support the following applications to encode, record, and stream video: Microsoft Media Encoder®, VLC, VirtualDub, and any other DirectShow encoding software.
