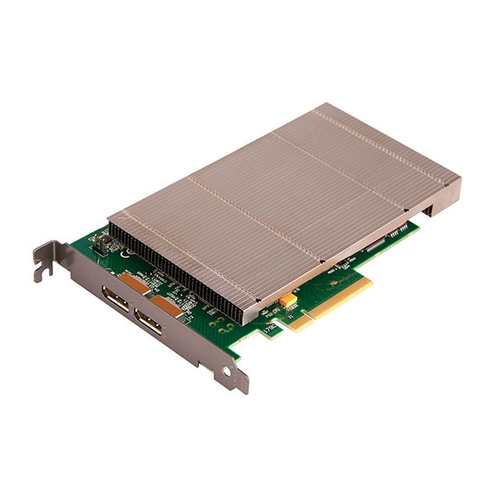

Radian Video Wall Controller Capture Card - DisplayPort 1.2 4K60, 2-Channel
Photo may vary from actual product


Radian Video Wall Controller Capture Card - DisplayPort 1.2 4K60, 2-Channel


Capture two channels of DisplayPort 1.2 video input with HDCP support at up to 4K60 for use on your video wall


  • For use with Radian Video Wall Controller Solutions
  • Two channels of DisplayPort 1.2 capture with HDCP support
  • Supports input video resolutions up to 4K60
  • Supports up to 8K x 8K capture resolution
  • PCIe Gen3 x8 with 6 Gbps of capture bandwidth
  • 768MB Frame Buffer Memory
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code
DisplayPort 4K

(2) channels DisplayPort 4K card
  Radian Video Wall Controller Capture Card - DisplayPort 1.2 4K60, 2-Channel
Radian Video Wall Controller Capture Card - DisplayPort 1.2 4K60, 2-Channel
  VCC-DP-2

When building a video wall system, high performance video content is a must to ensure vibrant and effective display. This Radian Video Wall Controller Capture Card provides two channels of DisplayPort 1.2 capture input with HDCP support at resolutions up to 4K60, offering the highest quality of video capture performance.

In addition, it contains built-in Windows® WDM support, and can be used for streaming applications with Windows Media Encoder to compress and stream captured video, and then replay the video using Windows® Media Player. This capture card can be used with any application compatible with Windows® DirectShow technology.

DirectShow drivers for WDM Streaming support the following applications to encode, record, and stream video: Microsoft Media Encoder®, VLC, VirtualDub, and any other DirectShow encoding software.
