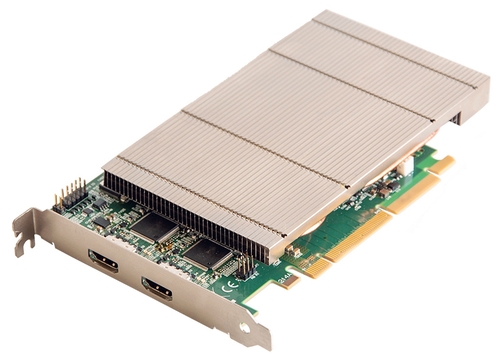

Radian Video Wall Controller Capture Card - HDMI 2.0 4K60 4:4:4, HDCP 2.2, 2-Channel
Photo may vary from actual product


Radian Video Wall Controller Capture Card - HDMI 2.0 4K60 4:4:4, HDCP 2.2, 2-Channel


Capture two channels of HDMI 2.0 video input with HDCP 2.2 support at up to 4K60 4:4:4 for use on your video wall


  • For use with Radian Video Wall Controller Solutions
  • Two channels of HDMI 2.0 capture with HDCP 2.2 support
  • Supports up to 4K60 with full 4:4:4 color sampling
  • PCIe Gen3 x8 with 6 Gbps of capture bandwidth
  • Full 10-bit processing pipeline
  • 2GB Frame Buffer Memory
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code
HDMI 4K, HD

(2) channel HDMI 4K capture (4 channel HDMI 1080 capture w/adapter)
  Radian Video Wall Controller Capture Card - HDMI 2.0 4K60 4:4:4, HDCP 2.2, 2-Channel
Radian Video Wall Controller Capture Card - HDMI 2.0 4K60 4:4:4, HDCP 2.2, 2-Channel
  VCC-HDMI2-2

When building a video wall system, high performance video content is a must to ensure vibrant and effective display. This Radian Video Wall Controller Capture Card provides two channels of HDMI 2.0 capture input with HDCP 2.2 support, at resolutions up to 4K60 with full 4:4:4 color sampling, offering the highest quality of video capture performance.

In addition, it contains built-in Windows® WDM support, and can be used for streaming applications with Windows Media Encoder to compress and stream captured video, and then replay the video using Windows® Media Player. This capture card can be used with any application compatible with Windows® DirectShow technology.

DirectShow drivers for WDM Streaming support the following applications to encode, record, and stream video: Microsoft Media Encoder®, VLC, VirtualDub, and any other DirectShow encoding software.
