Intelligent Movement Sensors


Monitor doors or detect airflow and motion remotely.


  • Security Contact: Open/closed contact switch indicates Alarm or Normal.
  • Motion Dection Sensor: 60° detection angle; temperature range of -20 to +50° C; max. distance of 3m.
  • Airflow Sensor: Thermistor sensor with disconnect alarm.
  • Warranty: 25 Year Double Diamond™ Warranty (Standard)

  Product       Code
Airflow Sensor

1.5m
  Intelligent Airflow Sensor
Intelligent Airflow Sensor
  EME1F1-005-R2
Motion Detection Sensor

1.5m
  Intelligent Motion Dection Sensor
Intelligent Motion Dection Sensor
  EME1M1-005-R2
Magnetic Door Contact

4.5m
  Intelligent Security Contact
Intelligent Security Contact
  EME1Y1-015

18.2m
  Intelligent Security Contact
Intelligent Security Contact
  EME1Y1-060

Accessories

  Product     Code

  DIN rail mounting brackets for sensors
DIN rail mounting brackets for sensors
  EMESMB
  Split 1U DIN Rail Rackmount kit
Split 1U DIN Rail Rackmount kit
  EMESDIN

For use with AlertWerks II sensor hubs as part of the AlertWerks II environmental monitoring system.

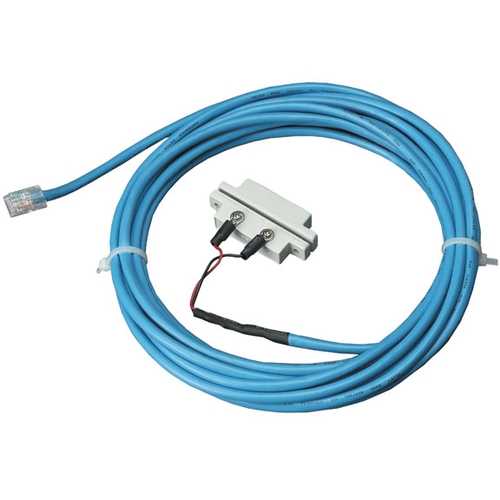

The Security Contact (Magnetic Door Contact
is an open/closed contact switch that indicates Alarm or Normal. A disconnect alarm alerts you when doors to secure areas have been opened. The contact switch can be used in a series with multiple sensors sharing a single port.

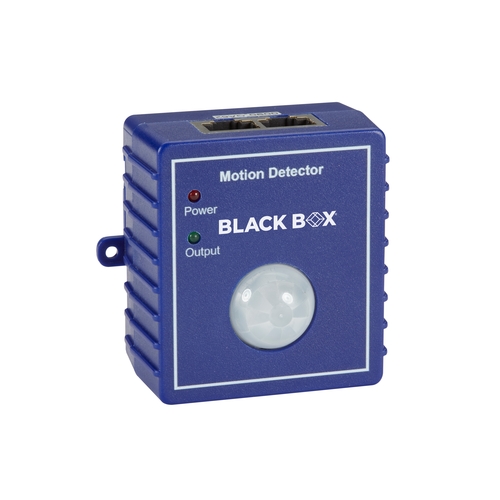

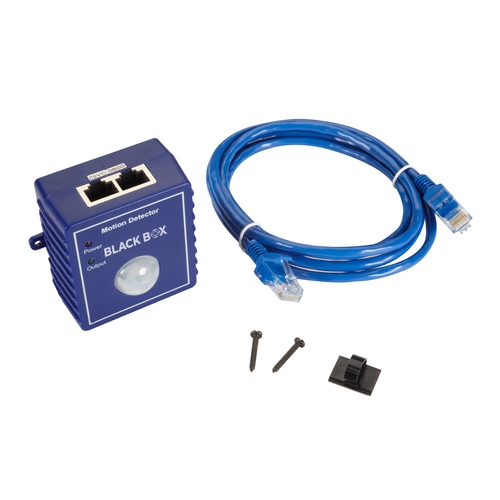

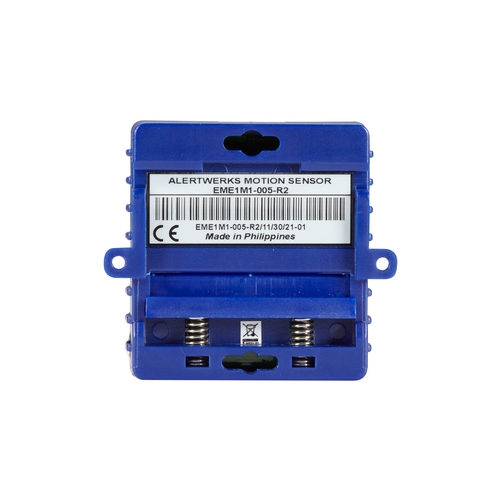

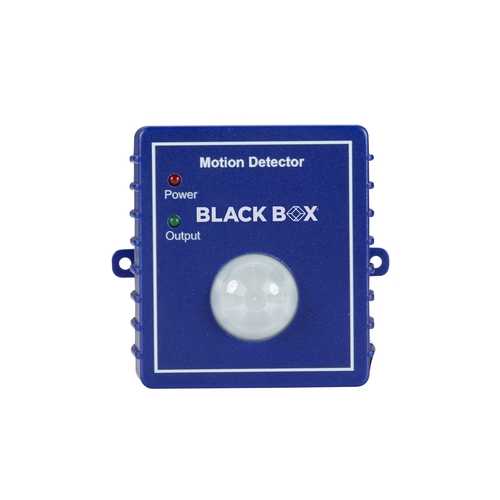

The Motion Detection Sensor
detects motion in a 60° angle within maximum distance of 3 m. Connect up to 10 motion detectors on a single sensor port.

The Airflow Sensor
provides an On/Off alarm signal for airflow. Two LEDs indicate the status of airflow and that the sensor is properly plugged into the ServSensor.
