MCX Gen2 AV over IP Encoders and Decoders – 4K60, Copper or Fiber

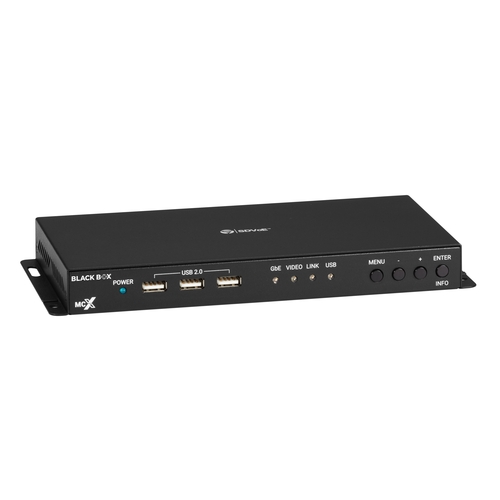

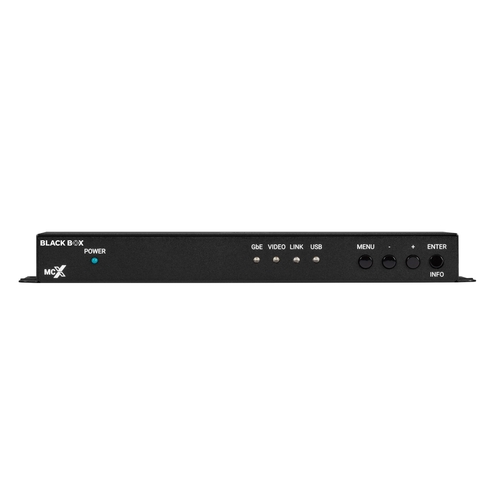

Photo may vary from actual product
MCXG2DC01: HDMI Type A 2.0, Decoder - Copper
MCXG2DC01: HDMI Type A 2.0, Decoder - Copper
MCXG2DC01: HDMI Type A 2.0, Decoder - Copper
MCXG2DC01: HDMI Type A 2.0, Decoder - Copper
MCXG2DC01: HDMI Type A 2.0, Decoder - Copper
MCXG2DC01: HDMI Type A 2.0, Decoder - Copper
MCXG2DF01: HDMI Type A 2.0, Decoder - Fiber
MCXG2DF01: HDMI Type A 2.0, Decoder - Fiber
MCXG2DF01: HDMI Type A 2.0, Decoder - Fiber
MCXG2DF01: HDMI Type A 2.0, Decoder - Fiber
MCXG2DF01: HDMI Type A 2.0, Decoder - Fiber
MCXG2EC01: HDMI Type A 2.0, USB Type C, Encoder - Copper
MCXG2EC01: HDMI Type A 2.0, USB Type C, Encoder - Copper
MCXG2EC01: HDMI Type A 2.0, USB Type C, Encoder - Copper
MCXG2EC01: HDMI Type A 2.0, USB Type C, Encoder - Copper
MCXG2EC01: HDMI Type A 2.0, USB Type C, Encoder - Copper
MCXG2EC01: HDMI Type A 2.0, USB Type C, Encoder - Copper
MCXG2EF01: HDMI Type A 2.0, USB Type C, Encoder - Fiber
MCXG2EF01: HDMI Type A 2.0, USB Type C, Encoder - Fiber
MCXG2EF01: HDMI Type A 2.0, USB Type C, Encoder - Fiber
MCXG2EF01: HDMI Type A 2.0, USB Type C, Encoder - Fiber


MCX Gen2 AV over IP Encoders and Decoders – 4K60, Copper or Fiber


Advanced, TAA-Compliant AV Distribution and Control for Modern Networks


  • HDMI connectivity, 10-Gbps Ethernet, and analog audio
  • IP switchable with zero latency (requires optional MCX Gen2 Controller)
  • Ultra-light compression, lossless for most content
  • Extension up to 30 km over fiber (maximum distance depends on the SFP+ module and type of fiber used)
  • AV, IR, RS-232, and USB 2.0 extension
  • Basic configuration via front-panel buttons with an OSD
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)

  Product       Code
HDMI Type A 2.0

Decoder - Copper
  MCX G2 HDMI Decoder - 4K60, Copper
MCX G2 HDMI Decoder - 4K60, Copper
  MCXG2DC01

Decoder - Fiber
  MCX G2 HDMI Decoder - 4K60, Fiber
MCX G2 HDMI Decoder - 4K60, Fiber
  MCXG2DF01
HDMI Type A 2.0, USB Type C

Encoder - Copper
  MCX G2 HDMI Single Encoder - 4K60, Copper
MCX G2 HDMI Single Encoder - 4K60, Copper
  MCXG2EC01

Encoder - Fiber
  MCX G2 HDMI Single Encoder - 4K60, Fiber
MCX G2 HDMI Single Encoder - 4K60, Fiber
  MCXG2EF01

Accessories

  Product     Code

  AVoIP Management Controller - Up to 24 Endpoints - Controller, 24 endpoints
AVoIP Management Controller - Up to 24 Endpoints
  MCX-G2-CTRL-24
  Premium High-Speed HDMI Cable with Ethernet and Gripping Connectors – HDMI 2.0, 4K 60Hz UHD, 6-ft. (1.8-m) - Video Cable, HDMI 2.0, M/M, 1.8m
Premium High-Speed HDMI Cable with Ethernet and Gripping Connectors – HDMI 2.0, 4K 60Hz UHD, 6-ft. (1.8-m)
  VCB-HD2L-006
  QSFP+ 40-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible - 1m
QSFP+ 40-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible
  QSFP-H40G-CU1M-BB
  SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible - 10m
SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible
  SFP-10G-AOC10M-BB

MCX Gen2 Encoders and Decoders extend and switch video, audio, RS-232, and USB 2.0 signals, or display all of your sources via built-in video wall management. Ideal for point-to-point secure video conferencing, hotel or convention center displays, multi-monitor broadcasts, distributed video matrix or video wall systems, and remote KVM system control, the encoders/decoders comply with TAA specifications.

Easy Setup - Easy Management
Connect each encoder to an AV source (computer, content player) and connect it to a managed 10-GbE network switch. Connect a decoder to each screen you want to display content on and connect it to the same switch. Use the MCX Gen2 Manager for switching or to build and manage a video wall.

Uncompressed 4K 60 Hz 4:4:4 Video
MCX extends uncompressed 4K 60 Hz 4:4:4 video to an unlimited number of displays without sacrificing video quality, or frame rate. It supports up to 10-bit HDR using Software-Defined Video over Ethernet (SDVoE), allowing AV and data to exist on the same network without reducing network performance, functionality, or capability.

Create Ergonomic Workflows for Operators
Front-panel configuration buttons and On-Screen Display (OSD) streamline workflows.

Choose Copper or Fiber Versions to Suit Your Application
Fiber and copper versions are available.

Zero Latency
Data transfer delay is undistinguishable; encoding and decoding happens in real-time (0.03 milliseconds).

HDMI and USB-C Encoding and Decoding
Connect a variety of devices to your MCX Gen2 units through the HDMI and USB-C ports. Transmit multiple control and data signals with the audio and video, including IR and RS-232.

Local Video Out
Show the input source on a local monitor.

Works with MCX Gen2 Controller
The MCX Gen2 Controller, Ethernet switches, and the encoders/decoders form a distributed video matrix, a multi-viewer system, or a video wall system.
