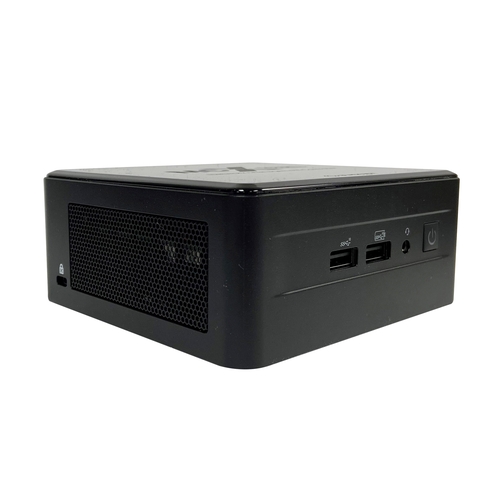

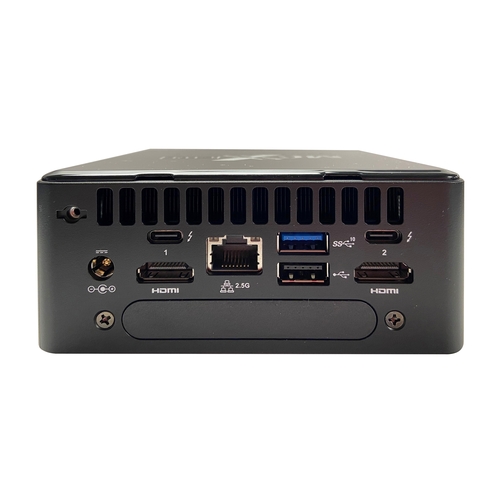

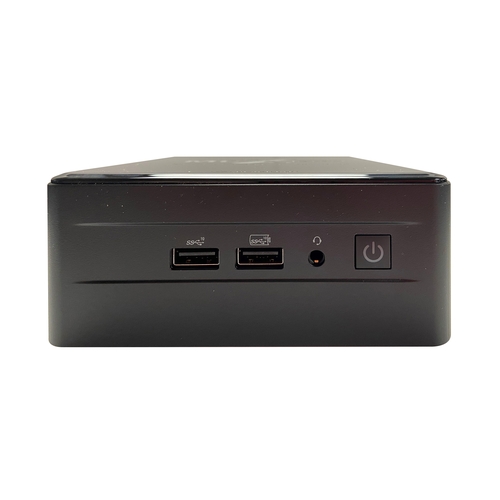

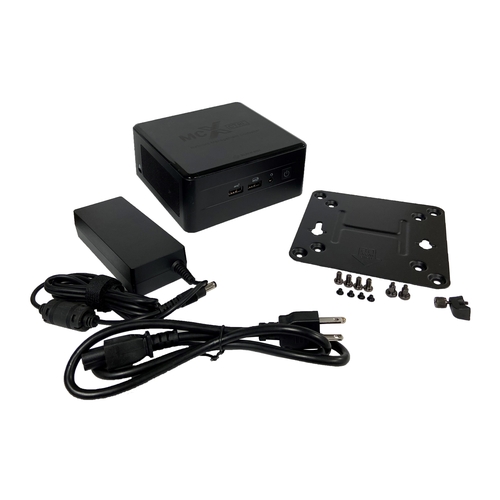

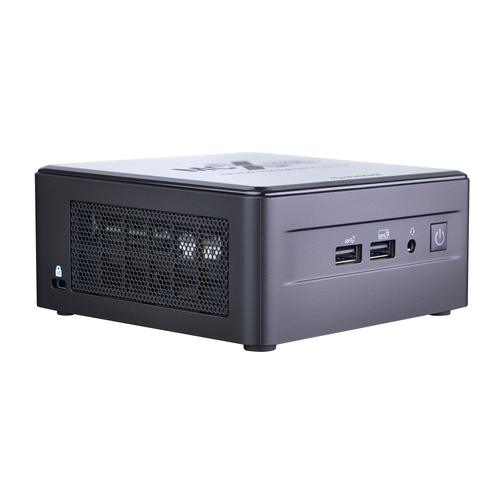

MCX Gen 2 AVoIP Management Controller
Photo may vary from actual product
MCX Gen 2 AVoIP Management Controller
MCX Gen 2 AVoIP Management Controller
MCX-G2-CTRL-12: Controller, 12 endpoints
MCX-G2-CTRL-12: Controller, 12 endpoints
MCX-G2-CTRL-48: Controller, 48 endpoints


MCX Gen 2 AVoIP Management Controller


Complete configuration, management, and control of your MCX AV-over-IP system


  • Configure, manage and control your MCX AV-over-IP system
  • Seamless matrix switching of video, audio, USB and control signals
  • Switch all signals at once or individually with independent breakaway switching
  • Advanced Video Wall capabilities with drag-and-drop display configuration
  • Simple-to-use Multiview functionality for enhanced content monitoring
  • Security that protects against unauthorized content viewing
  • Real-time status monitoring
  • Automate events and schedule preset commands with ease

  Product       Code
Controller

12 endpoints
  AVoIP Management Controller - Up to 12 Endpoints
AVoIP Management Controller - Up to 12 Endpoints
  MCX-G2-CTRL-12

24 endpoints
  AVoIP Management Controller - Up to 24 Endpoints
AVoIP Management Controller - Up to 24 Endpoints
  MCX-G2-CTRL-24

48 endpoints
  AVoIP Management Controller - Up to 48 Endpoints
AVoIP Management Controller - Up to 48 Endpoints
  MCX-G2-CTRL-48

120 endpoints
  AVoIP Management Controller - Up to 120 Endpoints
AVoIP Management Controller - Up to 120 Endpoints
  MCX-G2-CTRL-120

250 endpoints
  AVoIP Management Controller - Up to 250 Endpoints
AVoIP Management Controller - Up to 250 Endpoints
  MCX-G2-CTRL-250

500 endpoints
  AVoIP Management Controller - Up to 500 Endpoints
AVoIP Management Controller - Up to 500 Endpoints
  MCX-G2-CTRL-500

Accessories

  Product     Code

  MCX G2 HDMI Decoder - 4K60, Copper - HDMI Type A 2.0, Decoder - Copper
MCX G2 HDMI Decoder - 4K60, Copper
  MCXG2DC01
  MCX G2 HDMI Decoder - 4K60, Fiber - HDMI Type A 2.0, Decoder - Fiber
MCX G2 HDMI Decoder - 4K60, Fiber
  MCXG2DF01
  MCX G2 HDMI Single Encoder - 4K60, Copper - HDMI Type A 2.0, USB Type C, Encoder - Copper
MCX G2 HDMI Single Encoder - 4K60, Copper
  MCXG2EC01
  MCX G2 HDMI Single Encoder - 4K60, Fiber - HDMI Type A 2.0, USB Type C, Encoder - Fiber
MCX G2 HDMI Single Encoder - 4K60, Fiber
  MCXG2EF01
  MCX G2 Transcoder Endpoint - DisplayPort, 4K60, Copper/Fiber - HDMI Type A 2.0, DisplayPort Transcoder
MCX G2 Transcoder Endpoint - DisplayPort, 4K60, Copper/Fiber
  MCXG2TD11
  USB-C Adapter - USB-C to Gigabit Ethernet Adapter with Power Delivery, 10/100/1000 Mbps, 1 Gbps, 100W (20V 5A) PD 3.0 - USB 3.1 to DVI-D
USB-C Adapter - USB-C to Gigabit Ethernet Adapter with Power Delivery, 10/100/1000 Mbps, 1 Gbps, 100W (20V 5A) PD 3.0
  VA-USBC31-RJ45C

The MCX Gen 2 Controller is an all-in-one SDVoE/AVoIP network controller and manager for the MCX AVoIP system. The controller features an easy-to-use, intuitive user interface, and it makes setting up and managing your MCX AVoIP system a breeze. The Gen 2 Controller also offers strong security that ensures your data and content are always protected.

Simplified Setup
The MCX Gen 2 Controller makes setting up your AVoIP system easy and features a CSV import capability to accommodate large deployments. You can also assign icons to both source and display endpoints to assist in identification.

Complete Control UI
Create browser-based interfaces to control your projects' essential functions with our "no programming" approach to GUI design. Control matrix, video wall, and multiview functions as well as external devices like displays and media players. You can also create no-touch UIs with our pin coded QR system. This makes setting up touchpanels and control boards simple and cost-free.

System Design Testing
With the controller, you get granular testing of all encoder and decoder functionality as well as any attached IR or RS-232 devices. It also gives you reboot and reset options for individual endpoints or groups of endpoints.

Status Monitoring
The Gen 2 Controller provides real-time data on encoder and decoder operations plus insight into source and display operations.

Extensive Firmware Management
The controller features extensive firmware management that provides high-level admin access to individual endpoints or groups of endpoints.

Strong Security
Individual encrypted encoder and decoder pairings protect against unauthorized content viewing. Additional permission settings can allow or disallow routing.

EDID Management
The MCX Gen 2 Controller offers flexible EDID handling with full reporting of monitor information. And the EDID validation process ensures the integrity of information.

Automate Events
Automate actions like turning on displays upon source detection or initiating room off procedures after source disconnection. You can even combine the controller with multiple encoders to create a priority auto switching system.

Schedule Preset Commands
Schedule any number of preset commands for unattended operation. From ensuring all displays are turned off at end of day to changing source content on the lobby video wall, the possibilities are endless.

Track Your AV Devices
Get full asset tracking of devices. The MCX Gen 2 Controller logs the entire history of every device it manages, no matter the length of service.

SLA Adherence
Time-stamped logging of devices to meet system integrator SLA commitments. You can create reports that show when and how long devices were out of service as well.

Advanced Analytics
Better understand AV behavior by studying user AV interactions. Create reports to show when AV was used, how long it was used, and even how long it took to start AV in any meeting.
