Store home > Audio Video > Video Extenders > SDVoE AV over IP > MCX S9 4K60 Network AV Decoder - HDMI 2.0, Scaling, USB, 10-GbE Copper or Fiber
MCX-S9-DEC: HDMI 2.0, Decoder
Photo may vary from actual product
MCX-S9-DEC: HDMI 2.0, Decoder
MCX-S9-DEC: HDMI 2.0, Decoder


MCX S9 4K60 Network AV Decoder - HDMI 2.0, Scaling, USB, 10-GbE Copper or Fiber


Advanced AV Distribution and Control for Modern Networks


  • True 4K 60 Hz 4:4:4 video and uncompressed 10-bit HDR.
  • Distributes AV, Ethernet and peripheral signals over an Ethernet network
  • Zero source to display latency.
  • Seamless switching with no artifacts or screen blink.
  • Intuitive control through MCX Web UI.
  • Advanced scaling options like multi-view, pip and more for video walls.

  Product       Code
HDMI 2.0

Decoder
  MCX S9 4K60 Network AV Decoder - HDMI 2.0, Scaling, USB, 10-GbE Copper or Fiber
MCX S9 4K60 Network AV Decoder - HDMI 2.0, Scaling, USB, 10-GbE Copper or Fiber
  MCX-S9-DEC

Accessories

  Product     Code

  DisplayPort Cable 4K 60Hz version 1.2, Male/Male with Latches - Video Cable, DisplayPort to DisplayPort, M/M, 1.8m
DisplayPort Cable 4K 60Hz version 1.2, Male/Male with Latches
  VCB-DP2-0006-MM-R2
  USB 2.0 Cable - Type A/Type B, M/M, 1.8m
USB 2.0 Cable
  USB05-0006
  AVoIP Management Controller - Up to 12 Endpoints - Controller, 12 endpoints
AVoIP Management Controller - Up to 12 Endpoints
  MCX-G2-CTRL-12
  AVoIP Management Controller - Up to 24 Endpoints - Controller, 24 endpoints
AVoIP Management Controller - Up to 24 Endpoints
  MCX-G2-CTRL-24
  AVoIP Management Controller - Up to 48 Endpoints - Controller, 48 endpoints
AVoIP Management Controller - Up to 48 Endpoints
  MCX-G2-CTRL-48
  AVoIP Management Controller - Up to 120 Endpoints - Controller, 120 endpoints
AVoIP Management Controller - Up to 120 Endpoints
  MCX-G2-CTRL-120
  AVoIP Management Controller - Up to 250 Endpoints - Controller, 250 endpoints
AVoIP Management Controller - Up to 250 Endpoints
  MCX-G2-CTRL-250
  AVoIP Management Controller - Up to 500 Endpoints - Controller, 500 endpoints
AVoIP Management Controller - Up to 500 Endpoints
  MCX-G2-CTRL-500
  SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible - 10m
SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible
  SFP-10G-AOC10M-BB
  SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible - 1m
SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible
  SFP-H10GB-CU1M-BB
  SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible - 0.5m
SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible
  SFP-H10GB-CU50CM-BB
  Premium High-Speed HDMI Cable with Ethernet and Gripping Connectors – HDMI 2.0, 4K 60Hz UHD, 6-ft. (1.8-m) - Video Cable, HDMI 2.0, M/M, 1.8m
Premium High-Speed HDMI Cable with Ethernet and Gripping Connectors – HDMI 2.0, 4K 60Hz UHD, 6-ft. (1.8-m)
  VCB-HD2L-006
  Stereo Audio Cable - 3.5-mm - M/M, 1.5m
Stereo Audio Cable - 3.5-mm
  EJ110-0005

MCX is a next-generation AV-over-IP solution from Black Box. MCX distributes and extends 4K 60 Hz video and audio over IP and is made for 10-Gbps network infrastructures.

Uncompressed 4K 60 Hz 4:4:4 Video
MCX delivers the video quality high-end AV applications require to display eye-catching content: It extends uncompressed 4K 60 Hz 4:4:4 video to an unlimited number of displays without sacrificing latency, video quality or bandwidth. Even better, it supports up to 10-bit HDR using Software-Defined Video over Ethernet (SDVoE) – the latest software-based AV-over-IP platform for extension and control of AV systems on Ethernet or fiber networks.

Easy, Flexible Deployment
This video extension system is designed to work with any modern network, making installation simple. MCXS9 can be deployed on 10G networks over Ethernet, fiber or both.

Advanced Video Wall Capabilities
MCXS9 allows you to display your video wall content any way you want. It offers advanced video scaling options, such as multi-view, picture-in-picture, split screen and more.

Zero Latency
This robust video distribution system’s glass-to-glass encoding and decoding happen in real time (0.03 milliseconds). This means you never deal with annoying lag or video delay.

Seamless Switching
MCX switches between video sources in less than 100 milliseconds with no artifacts or screen blink. This means you can switch video content super-fast without any noticeable distortion to your image.

Complete Control
The MCX Web UI gives you complete control over your AV network from your preferred web browser.

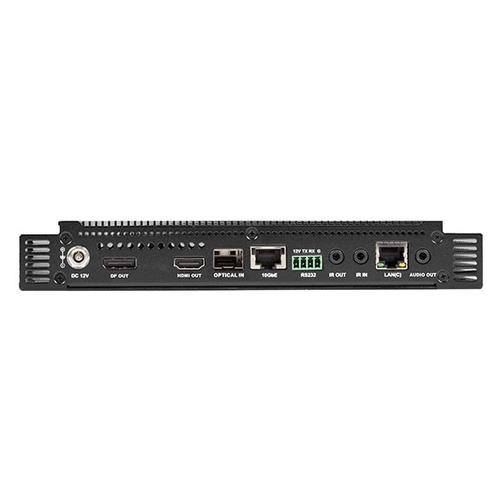

Comprehensive Connectivity
You can connect every essential AV distribution device to your MCX through its variety of ports: discrete RS-232, IR, secondary audio channel plus a separate 1-GbE connection.
