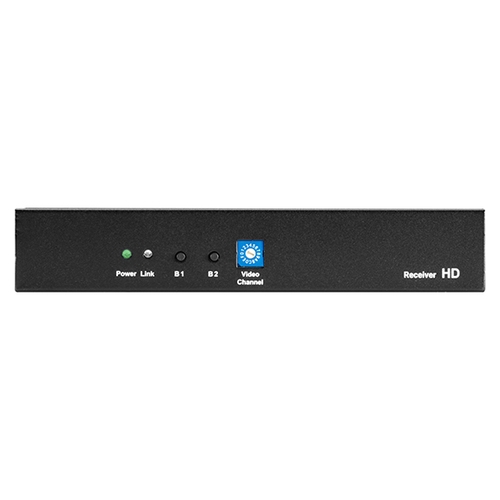

VX-HDMI-HDIP-RX: HDMI 1.4, unlimited (within a LAN), Receiver
Photo may vary from actual product
VX-HDMI-HDIP-RX: HDMI 1.4, unlimited (within a LAN), Receiver
VX-HDMI-HDIP-RX: HDMI 1.4, unlimited (within a LAN), Receiver
VX-HDMI-HDIP-TX: HDMI 1.4, unlimited (within a LAN), Transmitter
VX-HDMI-HDIP-TX: HDMI 1.4, unlimited (within a LAN), Transmitter
VX-HDMI-HDIP-TX: HDMI 1.4, unlimited (within a LAN), Transmitter


HDMI-over-IP Extender MediaCento IPX HD


Better video, compatibility, and control while extending HDMI video signals over a Gigabit Ethernet network.


  • Supports up to 1080p HD
  • Setup units using only the front panel interface, no additional configuration required
  • Intercompatible with the MediaCento 4k
  • Any source to any screen, over IP
  • Extend HDMI video signals over a Gigabit Ethernet network
  • Create eye-catching video walls of up to 8x8 displays
  • PoE power eliminates external power supplies
  • Use with the MediaCento Controller for matrix switching and video wall control
  • Maximum latency 2 frames or 33ms
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code
HDMI 1.4
unlimited (within a LAN)

Receiver
  HDMI-over-IP Extender MediaCento IPX HD
HDMI-over-IP Extender MediaCento IPX HD
  VX-HDMI-HDIP-RX

Transmitter
  HDMI-over-IP Extender MediaCento IPX HD
HDMI-over-IP Extender MediaCento IPX HD
  VX-HDMI-HDIP-TX
Note:
For the best performance, use with a Layer 2 or 3 switch with IGMP and Jumbo Frame support. For details, contact Black Box Tech Support. For a selection of switches, see our Networking section.

Compatible with former versions VX-HDMI-POE-MTX/MRX and VX-HDMI-4K TX/RX through free available firnware upgrade.

Accessories

  Product     Code

  Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (8) 10/100/1000-Mbps Copper RJ45 PoE+, (2) 1G/10G SFP+ - PoE+, (8) 10/100/1000M PoE+ (RJ45) + (2) dual media 1G/10G SFP+, Full SNMP + web GUI
Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (8) 10/100/1000-Mbps Copper RJ45 PoE+, (2) 1G/10G SFP+
  LPB3010A
  Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (24) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+ - PoE+, (24) 10/100/1000M PoE+ (RJ45) + (2) dual media 10/100/1000M RJ45/SFP, Full SNMP + web GUI
Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (24) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+
  LPB3028A
  Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (48) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+ - PoE+, (48) 10/100/1000M PoE+ (RJ45) + (4) dual speed SFP/SFP+ slots, Full SNMP + web GUI
Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (48) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+
  LPB3052A
  High-Speed HDMI Cable - Male - Video Cable, HDMI to HDMI, M/M, 2m
High-Speed HDMI Cable - Male
  EVHDMI01T-002M
  High-Speed HDMI Cable - Male - Video Cable, HDMI to HDMI, M/M, 3m
High-Speed HDMI Cable - Male
  EVHDMI01T-003M
  MediaCento IPX Controller
MediaCento IPX Controller
  VSW-MC-CTRL
Rack/Mount Kit
  VESA/Wallmount Kit for MediaCento IPX
VESA/Wallmount Kit for MediaCento IPX
  VX-HDMI-IP-VESA

HDMI HD video over IP
This IP-based audio/video distribution solution uses existing standards-based Ethernet technology and TCP/IP protocols to unicast HDMI HD video signals on your Gigabit Ethernet network. In a multicast configuration, one transmitter can drive multiple receivers with no extra network load. You need just one transmitter for every AV source and one receiver for each screen.

MediaCento IPX HD is great for:
  • Digital Signage applications using the iCOMPEL Digital Signage system.
  • Basic HDMI video and audio extension direct point to point, or point to multipoint over a gigabit *Ethernet network.
  • Streaming video to classrooms in schools.
  • Corporate video sharing and training.
  • Sharing video in command and control room setups.

HD means better video
The MediaCento IPX HD supports High Definition video for great pictures up to 1080p.

Plug-and-play setup
Whether you choose to utilize existing LAN infrastructure, or setup a dedicated video network, setup is easy. For a point-to-point extension (unicast setup), simply connect your source to a MediaCento transmitter, your display to a MediaCento receiver, and link both over a network switch, and you're ready go!

PoE support for remote powering
The MediaCento IPX HD is PoE powered eliminating the need for additional power supplies. Using a PoE network switch completely eliminates the need for external power supplies making installation easier and cost-efficient.

Multicasting video one-to-many or many-to-many
MediaCento IPX HD supports allows you easy system expansion at your own path. Share content on multiple screens just by connecting each screen through a MediaCento receiver to your video network. You can also add additional sources each connected via a MediaCento transmitter. For Multicasting, all MediaCento units need to be connected via the same network switch. To control a swithing matrix, you will also require a Media Cento Controller unit.

Create 16x8 video walls
Use the configurator on the remote unit and create video walls with up to 16 x 8 displays. For video streaming and multicasting video over a network to a video wall, combine MediaCento with the standalone MediaCento Controller (VSW-MC-CTRL) and create video walls with sizes up to 8x8.

Signals that go for kilometres
The MediaCento IPX HD system transmits signals up to 100 m point to point, but goes even further with a network switch added to the mix.

Optimal PC-to-screen performance
MediaCento IPX HD features EDID copy function and is HDCP 2.2-compliant supporting also protected contents from Blu-rays.

Digital signage and video wall applications:
  • Hospitality
  • Bars/restaurants
  • Retail
  • Venues/events
  • Corporate multi-room solutions
