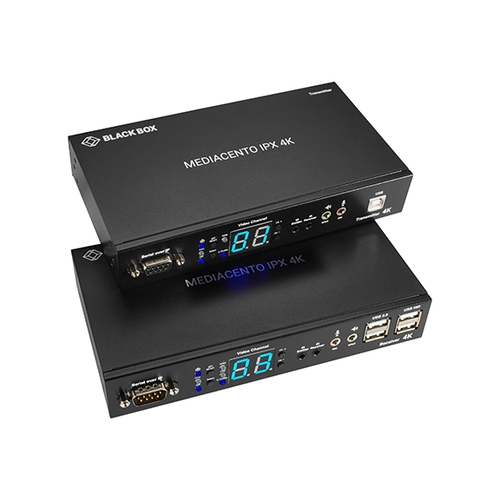

HDMI-over-IP Extender MediaCento IPX 4K, USB Audio Serial IR
Photo may vary from actual product
HDMI-over-IP Extender MediaCento IPX 4K, USB Audio Serial IR

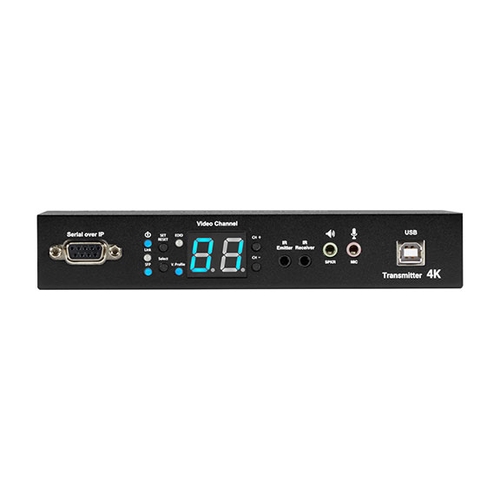

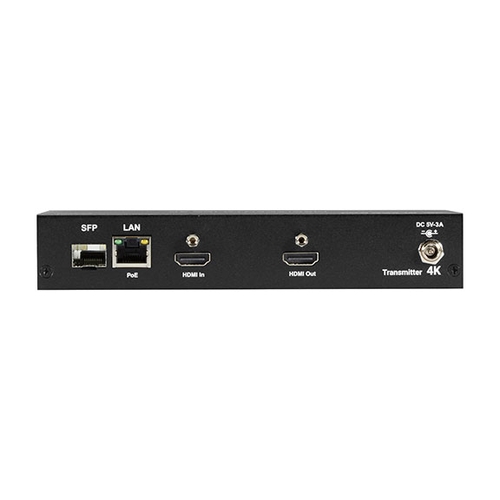

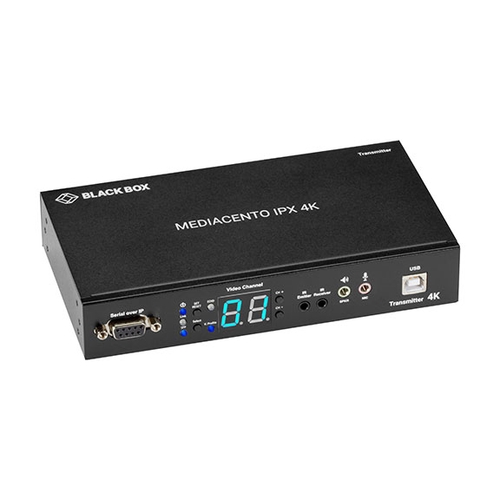

VX-HDMI-4KIP-TX: HDMI 1.3, IR, RS232, unlimited (within a LAN), Transmitter
VX-HDMI-4KIP-TX: HDMI 1.3, IR, RS232, unlimited (within a LAN), Transmitter
VX-HDMI-4KIP-TX: HDMI 1.3, IR, RS232, unlimited (within a LAN), Transmitter

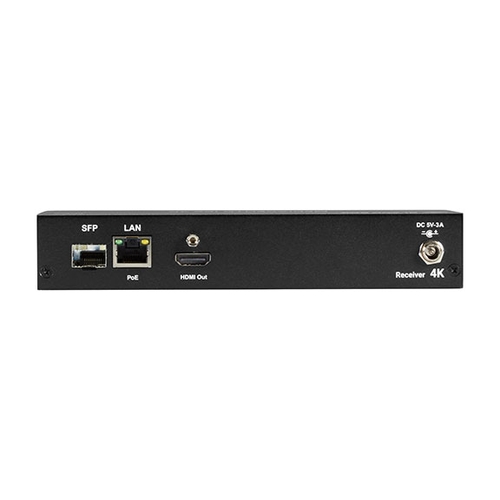

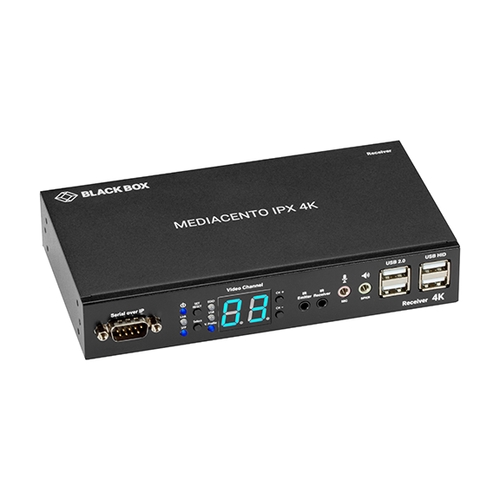

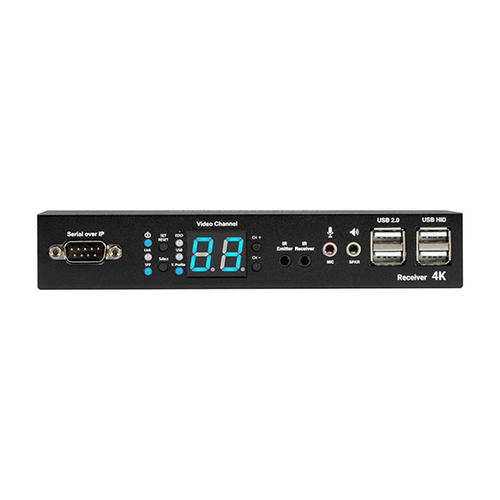

VX-HDMI-4KIP-RX: HDMI 1.3, IR, RS232, unlimited (within a LAN), Receiver
VX-HDMI-4KIP-RX: HDMI 1.3, IR, RS232, unlimited (within a LAN), Receiver
VX-HDMI-4KIP-RX: HDMI 1.3, IR, RS232, unlimited (within a LAN), Receiver


HDMI-over-IP Extender MediaCento IPX 4K, USB Audio Serial IR


Better 4K AV-over-IP extension, switching, and video walls.


  • Supports up to 4K UHD 4096 x 2160 @ 30Hz and 1920 x 1200 @ 60Hz and all 3D formats
  • Supports digital and analog audio embedding and extraction
  • 4K to 1080p downscaling
  • USB 2.0, bi-directional IR and serial
  • Any source to any screen over IP
  • Extend HDMI video and audio signals over a Gb Ethernet network
  • Create video walls up to 8x8 displays
  • USB 2.0 and USB HID support supports touchscreens and KVM capabilities
  • PoE power eliminates external power supplies
  • Maximum latency 2 frames or 33ms
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code
HDMI 1.3, IR, RS232
unlimited (within a LAN)

Receiver
  HDMI-over-IP Extender MediaCento IPX 4K, USB Audio Serial IR
HDMI-over-IP Extender MediaCento IPX 4K, USB Audio Serial IR
  VX-HDMI-4KIP-RX

Transmitter
  HDMI-over-IP Extender MediaCento IPX 4K, USB Audio Serial IR
HDMI-over-IP Extender MediaCento IPX 4K, USB Audio Serial IR
  VX-HDMI-4KIP-TX
Please order one MediaCento transmitter for each source, and one MediaCento receiver for each screen connected to your system. Order the MediaCento Controller, if you require Matrix Switch or Video Wall set-up.

Accessories

  Product     Code

  Stereo Audio Cable - 3.5-mm - M/M, 1.5m
Stereo Audio Cable - 3.5-mm
  EJ110-0005
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
  MediaCento IPX Controller
MediaCento IPX Controller
  VSW-MC-CTRL
  Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (8) 10/100/1000-Mbps Copper RJ45 PoE+, (2) 1G/10G SFP+ - PoE+, (8) 10/100/1000M PoE+ (RJ45) + (2) dual media 1G/10G SFP+, Full SNMP + web GUI
Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (8) 10/100/1000-Mbps Copper RJ45 PoE+, (2) 1G/10G SFP+
  LPB3010A
  Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (24) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+ - PoE+, (24) 10/100/1000M PoE+ (RJ45) + (2) dual media 10/100/1000M RJ45/SFP, Full SNMP + web GUI
Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (24) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+
  LPB3028A
  Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (48) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+ - PoE+, (48) 10/100/1000M PoE+ (RJ45) + (4) dual speed SFP/SFP+ slots, Full SNMP + web GUI
Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (48) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+
  LPB3052A
Rack/Mount Kit
  VESA/Wallmount Kit for MediaCento IPX
VESA/Wallmount Kit for MediaCento IPX
  VX-HDMI-IP-VESA

HDMI 4K video over IP

This attractively priced IP video distribution solution uses existing standards-based Ethernet technology and TCP/IP protocols to unicast HDMI 4K video signals on your Gigabit Ethernet network. In a multicast configuration, one transmitter can drive multiple receivers with no extra network load.

4K means better video
The MediaCento IPX 4K supports full 4K UHD for the best pictures ever. To ensure the video is also being displayed on 1080p displays, the unit supports 4K to 1080p downscaling.

Better audio: analog and digital
This MediaCento system supports embedded digital HDMI audio with surround sound plus analog audio embedding and extraction so you can include analog audio input from DVI sources and route audio signals to a separate amplifier.

Plug-and-play setup
Because the transmitter and receiver install directly into your existing LAN infrastructure, integration is easy. And you don't have to configure any IP settings. Connect your source, your display, a network switch, and you're ready to go.

PoE support for remote powering
The MediaCento IPX 4K is PoE powered eliminating the need for power supplies. Using a PoE network switch completely eliminates the need for external power supplies making installation easier.

USB support
The MediaCento IPX 4K is great for use with touchscreen signage applications. It can also extend USB signals for devices such as keyboards and mice for KVM management of a remote workstation.

Signals that go for miles
The MediaCento IPX 4K Unicast system transmits up to 328 feet (100 m) point to point but goes even further with a network switch added to the mix. Transmit over CATx cable or single-mode fiber cable. Compatible SFPs include LFP411, LFP312, LFP413, LFP414, and LFP418.

Supports serial connections to switch screens on/off
The MediaCento IPX 4K system supports RS-232 for configuration and control, and for extending bidirectional control signals.

Optimal PC-to-screen performance
MediaCento features EDID copy function and is HDCP 2.2-compliant.

Digital signage and video wall applications:

Hospitality
Bars/restaurants
Retail
Venues/events
Corporate multi-room solutions

MediaCento IPX 4K is also great for:

Touchscreen applications using the iCOMPEL Digital Signage system.
Basic KVM applications, such as extending signals for monitors, touchscreens, speakers, keyboards, mice, and other USB 2.0 devices.
Streaming video to classrooms in schools.
Corporate video sharing and training.
Sharing video in command and control room setup.
