CX QUAD IP

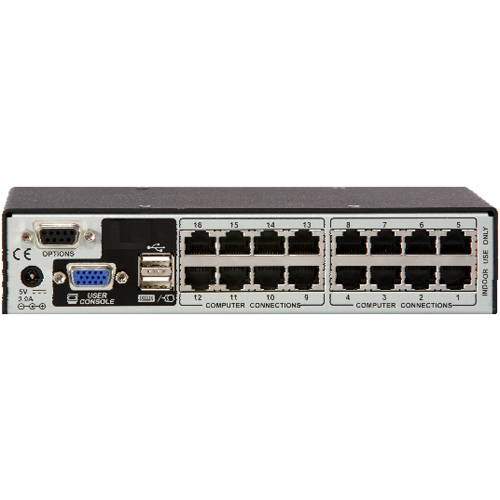

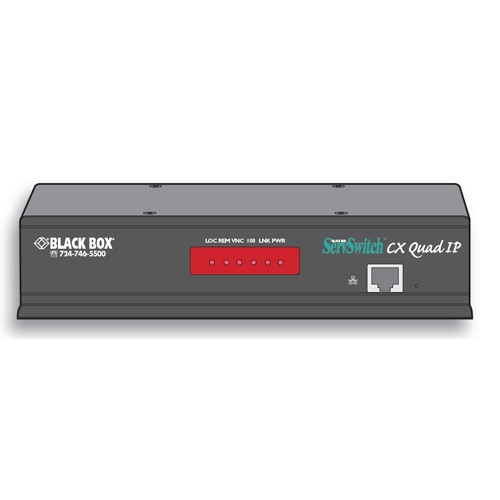

Photo may vary from actual product
CX QUAD IP


CX QUAD IP


High-end multi-platform KVM switching with up to 4 simultaneous IP users


  • Shared access for one local- and four IP-user consoles via Web browser or VNC.
  • 16 multiplatform Computer ports.
  • Perfect video quality up to 1600 x 1200.
  • Cascadable for up to 8 session and 32 ports in 1U.
  • Integrates with Wizard.Net in enterprise management software.
  • Easy computer selection.
  • Flash upgrade via LAN.
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)

  Product       Code
16 port
1 local + 4 IP users

USB HID
  ServSwitch CX UNO QUAD IP
ServSwitch CX UNO QUAD IP
  KV4161A

Accessories

  Product     Code

  ServSwitch CX SAM - 1 port, Single VGA, USB HID
ServSwitch CX SAM
  KV1401A
  ServSwitch CX SAM - 1 port, Single VGA, USB HID, Audio
ServSwitch CX SAM
  KV1403A
  ServSwitch CX SAM - 1 port, Single VGA, Sun, Audio
ServSwitch CX SAM
  KV1404A
  ServSwitch CX Server Access Module, USB, DisplayPort, and Audio - DisplayPort, USB HID, Audio
ServSwitch CX Server Access Module, USB, DisplayPort, and Audio
  KV1408A
  ServSwitch CX Server Access Module, USB, mini DisplayPort, and Audio - Mini DisplayPort, USB HID, Audio
ServSwitch CX Server Access Module, USB, mini DisplayPort, and Audio
  KV1409A
  CX Series KVM Switch Remote Unit - VGA, PS/2 Console - Single VGA, PS/2
CX Series KVM Switch Remote Unit - VGA, PS/2 Console
  KV04-REM
  CX Uno KVM Switch Remote Unit - VGA, PS/2, Audio - Single VGA, PS/2, Audio
CX Uno KVM Switch Remote Unit - VGA, PS/2, Audio
  KV04A-REM
  CX Uno KVM Switch Remote Unit - VGA, USB with Audio - Single VGA, USB HID, Audio & KVM Switching
CX Uno KVM Switch Remote Unit - VGA, USB with Audio
  KV04AU-REM
  CX Uno KVM Switch Remote Unit - VGA, USB with Audio and Skew Compensation - Single VGA, USB HID, Audio, DeSkew & KVM Switching
CX Uno KVM Switch Remote Unit - VGA, USB with Audio and Skew Compensation
  KV04AUS-REM
  CX Series KVM Switch Remote Unit - VGA, USB Console - Single VGA, USB HID & KVM Switching
CX Series KVM Switch Remote Unit - VGA, USB Console
  KV04U-REM
Rack/Mount Kit
  19" Rackmounting Kit 1U for Single Unit
19" Rackmounting Kit 1U for Single Unit
  RMK2004

The ideal multi-platform KVM switch with four simultaneous IP sessions
The CX QUAD IP is based on the CX IP Matrix series. This guarantees a high level of quality and compatibility across multiple server hardware and software platforms.

High-performance IP access
CX Quad IP allows one local user plus four global users (located anywhere that has a network/internet connection) to view and take full control of multiple host computer systems. Each global user simply requires a Real VNC client application which is supplied on CD and can also be downloaded from various locations, even from the CX Quad IP unit itself. Alternatively, the unit can quickly serve a Java applet to a global user, requiring only a standard internet browser to operate. The IP engine supports resolutions up to 1600 x 1200 at 60Hz to ensure there is enough power to allow smooth KVM over IP control. The console can also support 1920x1200 @60Hz in half-width mode on the IP ports.

High-performance local KVM console
The CX QUAD IP is provided with an independent high performance local KVM console connection that supports USB keyboards and mice and high quality video. That way you can use USB keyboards and mice to control your computers in the server room or IP connections to access systems from elsewhere. An OSD function also makes setup and control of the CX simple. In combination with a RS-232/V.24 power switch you get even a complete hard reboot function.

High Compatibility and flexible infrastructure
Like all models within the highly successful CX family, this unit takes full advantage of CAT5/5e/6 structured cabling to provide flexible installation and configuration. Every connected computer is linked by up to ten metres of standard CATx cable and one of five types of SAM (Server Access Module) according to the port arrangements on each computer. The CX Quad IP can directly support up to sixteen computers, however, this total can be increased to a maximum of 256 by adding CX UNO units in cascade to provide a much larger network of controlled computers. All CX models provide full enterprise level security to restrict access to authorized personnel.

Small form factor
Less than half the width of a standard 19" mountable device, the CX Quad IP supports via cascade up to 32 servers and eight IP sessions in 1U of rack space. Together with a KVM drawer like the ServView, it is an ideal solution for dense server rack environments with IP-based remote control options.

Power Management
The CX Quad IP has a power control port that enables a remote user to reset one or more power switches in the host system. Plus, dual power connectors enable the CX to draw power from its included wallmount adapter or from an optional redundant power supply if there's a power failure."

Integration into Wizard.Net
The CX QUAD IP is compatible with Wizard.Net enterprise management software and integrates nicely with CX UNO IP, CX IP, Wizard DXS and Wizard IP installations. A copy of the WIZARD.NET application is included within the package. This useful utility allows you to quickly and efficiently manage user groups and their access permissions across multiple devices. Optional power switch control allows you to remotely perform a hard reset on any host system, no matter how badly it may have locked up.

Integration with 19” KVM rack drawers
The CX Quad IP as well as the CX Uno and CX UNO IP will be available as slide-in-modules for the KVM drawers KVT127E and KVT517E from Black BOX. Thus you will get KVM switching plus a KVM console with keyboard, touchpad and 17” monitor in just 1U!
