Wallplate Control Panel, RS-232, 8-Button
Photo may vary from actual product
AVS-CTRL8
AVS-CTRL8
AVS-CTRL8
AVS-CTRL8


Wallplate Control Panel, RS-232, 8-Button


Wallplate-based control panel for AV devices


  • Designed to operate any AV or KVM switches or scalers with RS-232 control, or other AV devices with either RS-232, RS-485, IR, or relay control.
  • 8 backlit buttons with adjustable light.
  • Every button is fully programmable to perform operations such as turning a display on/off, select channels on a TV, or switch inputs on a matrix switcher.
  • Supports IR learning, page, toggle, compare and delay setting.
  • Customizable and changeable labels.
  • Easy use on programming software.
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code


Wallplate Control Panel, RS-232, 8-Button

Wallplate Control Panel, RS-232, 8-Button
  AVS-CTRL8

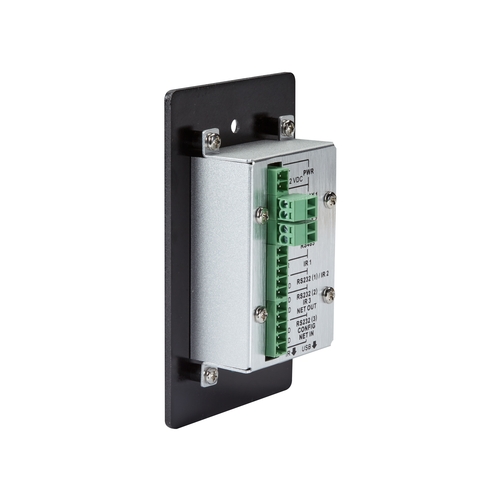

Standard design for US gang wall boxes, can alternatively be mounted in a desk or wall. Please call our tech support

Configuration Software and USB drivers are available in our technical downloads under support
https://www.black-box.eu/en-en/Info/Manuals/

8 programmable buttons

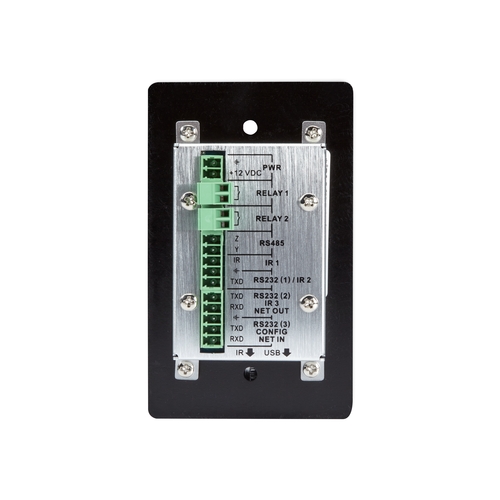

Each of the 8 buttons can be user programmed, using the included software, to send IR, relay control, or bi-directional RS-232 and RS-485 commands simultaneously to control third-party devices.

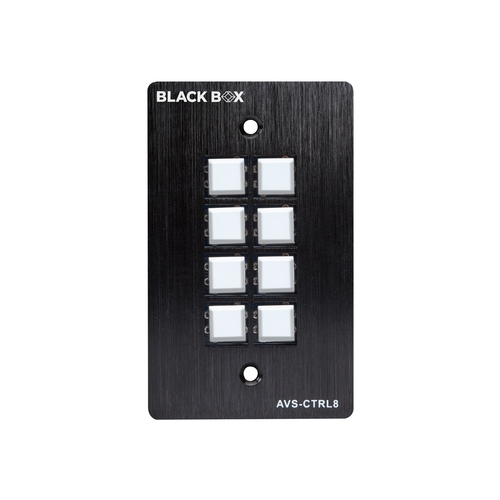

Sleek black metal wallplate design
The panel is designed in a high quality black metal finish with LED back lit buttons, and fits into a single gang outlet box. Please contact our tech support for questions on mounting the wallplate.

Additional features:
- ID looping function
- Maximum 99-unit programmable control panels can be looped and controlled together.
- Supports page, toggle, compare, and delay settings.
- The backlit brightness is controllable.
- The labels are customizable and changeable.
