Store home > KVM > Extenders > DisplayPort Extenders > Agility KVM over IP Fiber Extender - Dual-Monitor, DisplayPort, USB 2.0
Agility KVM over IP Fiber Extender - Dual-Monitor, DisplayPort, USB 2.0
Photo may vary from actual product

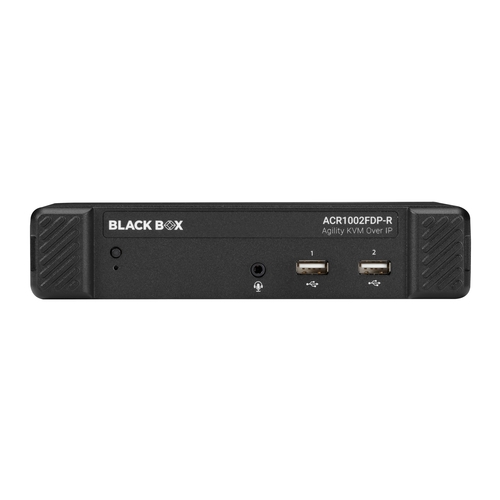

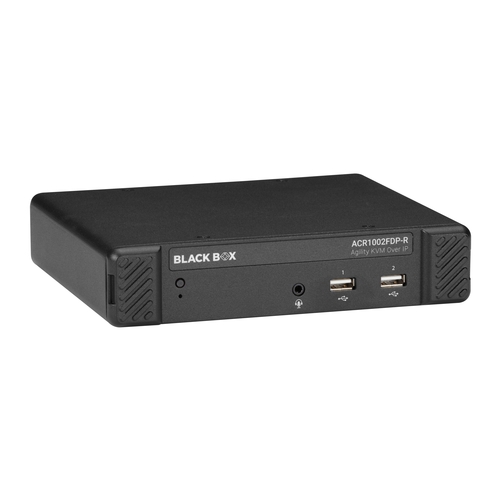

ACR1002FDP-R: Receiver, (2) Single link or (1) Dual link DVI, 2xDVI-D, Audio, USB 2.0, RS232
ACR1002FDP-R: Receiver, (2) Single link or (1) Dual link DVI, 2xDVI-D, Audio, USB 2.0, RS232
ACR1002FDP-R: Receiver, (2) Single link or (1) Dual link DVI, 2xDVI-D, Audio, USB 2.0, RS232

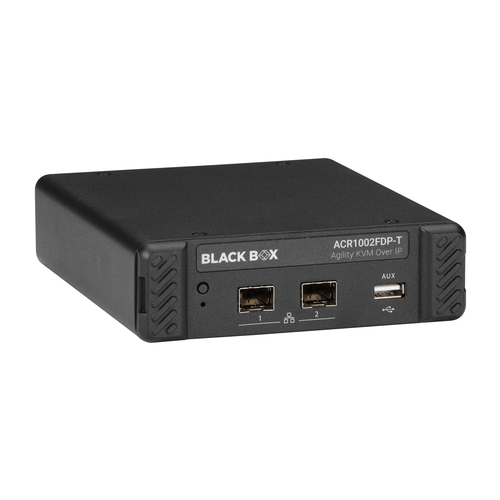

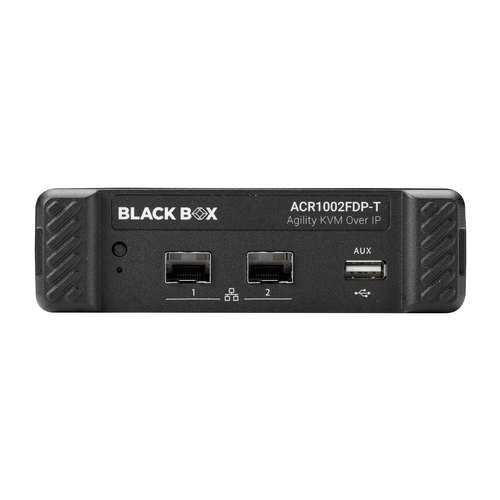

ACR1002FDP-T: Transmitter, (2) Single link or (1) Dual link DVI, 2xDVI-D, Audio, USB 2.0, RS232
ACR1002FDP-T: Transmitter, (2) Single link or (1) Dual link DVI, 2xDVI-D, Audio, USB 2.0, RS232
ACR1002FDP-T: Transmitter, (2) Single link or (1) Dual link DVI, 2xDVI-D, Audio, USB 2.0, RS232
ACR1002FDP-T: Transmitter, (2) Single link or (1) Dual link DVI, 2xDVI-D, Audio, USB 2.0, RS232


Agility KVM over IP Fiber Extender - Dual-Monitor, DisplayPort, USB 2.0


Delivers pixel-perfect dual-head DisplayPort video up to 2560 x 1600 at 60 Hz, audio, and USB 2.0 over one fiber connection.


  • Supports fiber at up to 1 GbE using optional SFP modules (1 SFP included, optional SFP for the second slot is not included)
  • Achieves DisplayPort resolutions of (1) 2560 x 1600 @ 60 Hz or (2) 1920 x 1200 @ 60 Hz
  • Provides bi-directional analog audio (with combined headset jack on the receiver)
  • Includes USB True Emulation for fast switching
  • Works with advanced diagnostic and troubleshooting tools
  • Plug-and-play

  Product       Code
Receiver
(2) Single link or (1) Dual link DVI

2xDVI-D, Audio, USB 2.0, RS232
  KVM over IP Fiber Extender Receiver - Dual-Monitor, DisplayPort, USB 2.0
KVM over IP Fiber Extender Receiver - Dual-Monitor, DisplayPort, USB 2.0
  ACR1002FDP-R
Transmitter
(2) Single link or (1) Dual link DVI

2xDVI-D, Audio, USB 2.0, RS232
  KVM over IP Fiber Extender Transmitter - Dual-Monitor, DisplayPort, USB 2.0
KVM over IP Fiber Extender Transmitter - Dual-Monitor, DisplayPort, USB 2.0
  ACR1002FDP-T

Accessories

  Product     Code

  DisplayPort Cable 4K 60Hz version 1.2, Male/Male with Latches - Video Cable, DisplayPort to DisplayPort, M/M, 1.8m
DisplayPort Cable 4K 60Hz version 1.2, Male/Male with Latches
  VCB-DP2-0006-MM-R2
  USB 2.0 Cable - Type A/Type B, M/M, 1.8m
USB 2.0 Cable
  USB05-0006
  DisplayPort Cable 4K 60Hz version 1.2, Male/Male with Latches - Video Cable, DisplayPort to DisplayPort, M/M, 0.9m
DisplayPort Cable 4K 60Hz version 1.2, Male/Male with Latches
  VCB-DP2-0003-MM
  SFP, 1250-Mbps, SGMII - 100m, RJ-45, CATx
SFP, 1250-Mbps, SGMII
  LFP443
Power Supply
  Spare/Redundant Power Supply 100-240VAC/0.7A; 12VDC/1.5A
Spare/Redundant Power Supply 100-240VAC/0.7A; 12VDC/1.5A
  PS656
Rack/Mount Kit
  19" Rackmounting Kit 1U for Single Unit
19" Rackmounting Kit 1U for Single Unit
  RMK2004
  KVM Extender Rackmount Kit for 2 units
KVM Extender Rackmount Kit for 2 units
  RMK2104
  SFP, 1250-Mbps - LC, MM 850nm, 550m
SFP, 1250-Mbps
  LFP441
  SFP, 1250-Mbps - LC, Single-mode 1310nm, 20km
SFP, 1250-Mbps
  LFP442

Locate your critical computing hardware in a secure and temperature-controlled environment away from the user workstations, while maintaining a pixel-perfect desktop experience.

The Black Box Agility high-performance IP KVM (keyboard, video, mouse) extenders drive dual-monitor DisplayPort video, audio, and USB over a single fiber connection. The extenders offer ideal color and pixel-perfect picture quality at up to 2560 x 1600 at 60 Hz and USB 2.0 with fast switching.

Plug-and-Play
Works out of the box with no need to install drivers or other software.

Access via Just One Fiber Cable Using IP Technology
Fiber models are available to suit your application

Drive Signals Long Distances
Extends distance up to 1640 feet (500 m) or 12 miles (20 km) over a single length of fiber via an SFP module

Enjoy Ideal Digital Video, with Real-Time Control
Delivers DisplayPort video resolutions up to (1) 2560 x 1600 @ 60 Hz or (2) 1920 x 1200 @ 60 Hz. Using a spatially-lossless encoding system, the extenders provide pixel-perfect, color-accurate video with no artifacts in real-time.

Supports USB Mass Storage Devices, Plus Keyboard, Mouse, Tablet, and Touch
Connect a variety of USB devices, ranging from USB-HID devices such as keyboards and mice to USB 2.0 mass storage devices. Disable USB-HID connectivity within the extender if needed for security.

Works with Mac Pro
Supports dithered video, which can significantly increase the normal video data rates. The extender TX uses a feature called Magic Eye that supports dithering without degrading overall link performance.

Redundant Network Operation
If the main network goes down, your extender keeps operating if the second network port is connected to a backup connection.

Offers Dual Touchscreen Support
Includes on-screen keyboard and floating launch button.
