KVXHP Series MST KVM Extender over CATx/Fiber - Quad-Monitor, 4K DisplayPort, USB HID, Serial, Audio, Local Video

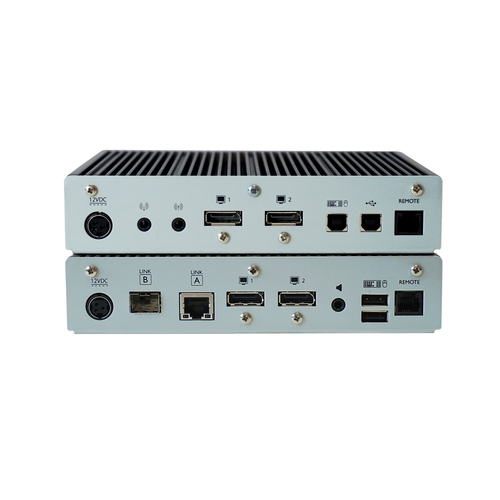

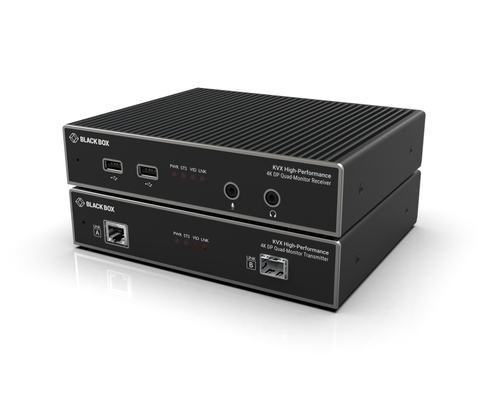

Photo may vary from actual product
KVXHP-400: Extender Kit, (1) DisplayPort 1.2 MST feeding up to (4) monitors, USB 2.0, RS-232, Audio
KVXHP-400: Extender Kit, (1) DisplayPort 1.2 MST feeding up to (4) monitors, USB 2.0, RS-232, Audio
KVXHP-400: Extender Kit, (1) DisplayPort 1.2 MST feeding up to (4) monitors, USB 2.0, RS-232, Audio
KVXHP-400: Extender Kit, (1) DisplayPort 1.2 MST feeding up to (4) monitors, USB 2.0, RS-232, Audio
KVXHP-400: Extender Kit, (1) DisplayPort 1.2 MST feeding up to (4) monitors, USB 2.0, RS-232, Audio
KVXHP-400: Extender Kit, (1) DisplayPort 1.2 MST feeding up to (4) monitors, USB 2.0, RS-232, Audio


KVXHP Series MST KVM Extender over CATx/Fiber - Quad-Monitor, 4K DisplayPort, USB HID, Serial, Audio, Local Video


Quad-Head HD KVM extender with DisplayPort 1.2 MST technology over copper or fiber


  • Quad-Head video at HD60 via DisplayPort 1.2 MST (Multi-Stream Technology)
  • Point to point extension up to 100m over CATx or 4km over fiber cable
  • CATx or Fiber flexibility
  • True USB emulation supports the most advanced keyboards and mice
  • Intelligent EDID management reduces monitor compatibility issues
  • Digital / Analog audio
  • 4 x Tri-color connection status LEDs
  • Single or Dual-Head models also available

  Product       Code
Extender Kit
(1) DisplayPort 1.2 MST feeding up to (4) monitors

USB 2.0, RS-232, Audio
  KVXHP Series MST KVM Extender over CATx/Fiber - Quad-Monitor, 4K DisplayPort, USB HID, Serial, Audio, Local Video
KVXHP Series MST KVM Extender over CATx/Fiber - Quad-Monitor, 4K DisplayPort, USB HID, Serial, Audio, Local Video
  KVXHP-400
NOTE(s):
For Fiber connectivity, please order the SFPs separately. The usage of other SFPs is not recommended.

MST-enabled monitors or MST hub required.

If the application requires 2 or more monitors in MST mode (including using an MST hub), the monitors must be HD and not 4K or the application will not function properly.

Accessories

  Product     Code

  DisplayPort Cable 4K 60Hz version 1.2, Male/Male with Latches - Video Cable, DisplayPort to DisplayPort, M/M, 1.8m
DisplayPort Cable 4K 60Hz version 1.2, Male/Male with Latches
  VCB-DP2-0006-MM-R2
  DisplayPort Cable 4K 60Hz version 1.2, Male/Male with Latches - Video Cable, DisplayPort to DisplayPort, M/M, 3m
DisplayPort Cable 4K 60Hz version 1.2, Male/Male with Latches
  VCB-DP2-0010-MM-R2
  DisplayPort Cable 4K 60Hz version 1.2, Male/Male with Latches - Video Cable, DisplayPort to DisplayPort, M/M, 0.9m
DisplayPort Cable 4K 60Hz version 1.2, Male/Male with Latches
  VCB-DP2-0003-MM
Power Supply
  Spare/Redundant Power Supply 100-240 VAC/1.5A; 12 VDC/5 A
Spare/Redundant Power Supply 100-240 VAC/1.5A; 12 VDC/5 A
  PS655
  KVXHP Series Extender Rackmount Tray
KVXHP Series Extender Rackmount Tray
  KVXHP-RMK
  MST Hub - DisplayPort 1.2, 4K, 4-Port - 4 ports, (4) DisplayPort 1.2
MST Hub - DisplayPort 1.2, 4K, 4-Port
  DPMSTHUB-4P
  10G SFP - 10-Gbps Singlemode Fiber, 1310nm, 10km, LC
10G SFP - 10-Gbps Singlemode Fiber, 1310nm, 10km, LC
  ACUSFP-SM-10G
  SFP+, 10-Gbps - LC, MM 850nm, 300m
SFP+, 10-Gbps
  LSP441
  SFP+, 10-Gbps - LC, Single-mode 1310nm, 20km
SFP+, 10-Gbps
  LSP442
  SFP+, 10-Gbps, LC, 1310nm, Single-mode - 1310nm SM LC, 10km
SFP+, 10-Gbps, LC, 1310nm, Single-mode
  LSP422
  SFP+, 10-Gbps, LC, 850nm, Multi-mode - 850nm MM LC, 300m
SFP+, 10-Gbps, LC, 850nm, Multi-mode
  LSP421
  SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible - 10m
SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible
  SFP-10G-AOC10M-BB

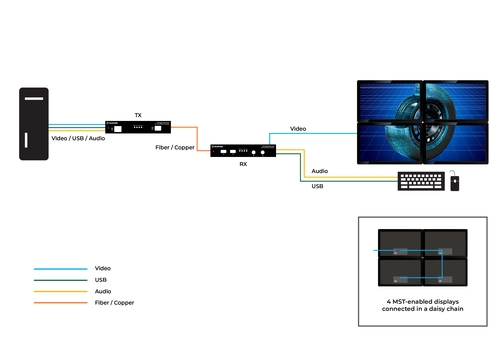

True Plug and play High-Performance point-to-point KVM extension. Using DisplayPort 1.2 (Multi-Stream Transport) Technology, KVXHP supports up to four external displays transmitted over a single cable. HD video, USB HID, and audio are all transmitted over a single CATx or Fiber cable. Whether your requirements are CATx or fiber, KVXHP is equipped to handle both interfaces providing a single solution for all use cases.

KVXHP supports four external MST enabled DisplayPort monitors with resolutions up to 1920x1200 at 60Hz using 8 bits per color and 4:4:4 chroma sampling, provides high-quality audio, EDID management, and Emulated USB HID.

19" Rackmount Option
The optional rackmount tray (KVXHP-RMK) holds up to two KVXHP extender units for quick mounting into any 19" rack and leaves enough space to hold the power supplies and cable management. To concentrate multiple KVM extensions in your rack, use our Central Power Hub solution (ACR1000-CPH8R-R2/ACR1000-CPH16R-R2) for a clutter-free, space-saving installation in 1RU. The hub powers up to eight or sixteen 12VDC devices replacing multiple single power supplies.

Single-head models for one monitor connection or dual-head models with support for two DisplayPort monitors are also available.

NOTE: For Fiber connectivity, please order the SFPs separately. The usage of other SFPs is not recommended.

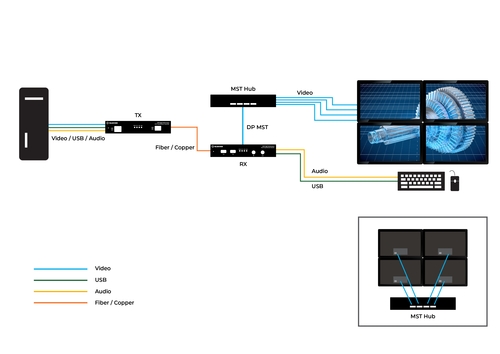

NOTE: MST-enabled monitors or MST hub required.

NOTE: If the application requires 2 or more monitors in MST mode (including using an MST hub), the monitors must be HD and not 4K or the application will not function properly.
