Industrial-Grade USB Hub
Photo may vary from actual product
Industrial-Grade USB Hub

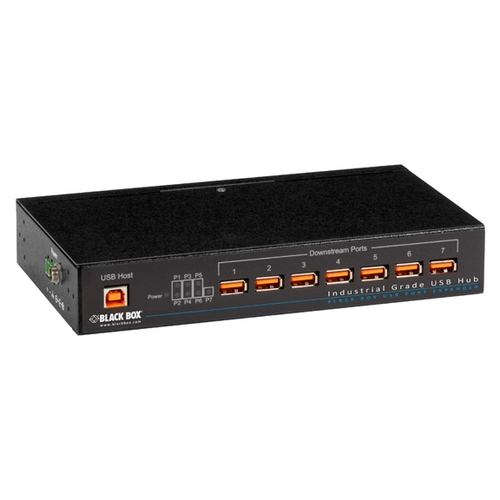

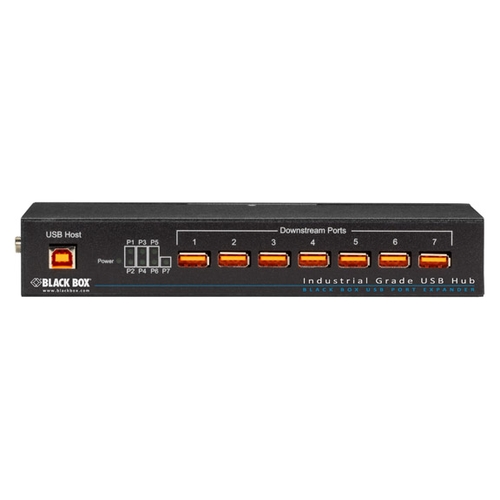

ICI207A: 7 ports

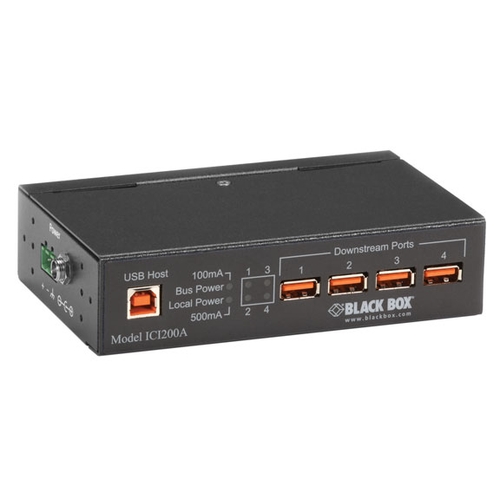

ICI200A: 4 ports
ICI200A: 4 ports


Industrial-Grade USB Hub


This rugged, ESD-protected hub helps ensures maximum uptime for high-speed USB devices.


  • Features high electrostatic discharge protection (Level 4, 15 kV).
  • Included high-retention ports to help keep USB cables tightly connected.
  • Withstands a wide temperature range: -40 to +80° C.
  • Housed in a durable, IP30-rated metal enclosure.
  • Tested for 50G shock and 4g vibration.
  • USB 1.1 and USB 2.0 compatible.
  • Supports USB speeds of 480 Mbps.
  • Includes panel- and DIN rail-mounting hardware.
  • USB bus-powered with external power as an option.
  • Use either a locking barrel plug and terminal block for power input.
  • Warranty: 5 Year Double Diamond™ Warranty (Standard)

  Product       Code


4 ports
  Industrial-Grade USB Hub
Industrial-Grade USB Hub
  ICI200A

7 ports
  Industrial-Grade USB Hub
Industrial-Grade USB Hub
  ICI207A
NOTE: A power supply is not included. To order, please see PS290 under accessories below

Accessories

  Product     Code

Power Supply
  Power Supply for Ind. USB Gateway, 100-240 VAC/12VDC, 4 kV Isolation
Power Supply for Ind. USB Gateway, 100-240 VAC/12VDC, 4 kV Isolation
  PS290

A great choice for factory, utility, and engineering applications, the Black Box® Industrial-Grade USB Hub enables more reliable USB device connectivity in harsh environments.
The hub expands one USB port into four or seven, so you can connect additional USB peripherals to your host system via its upstream port. Considerably more rugged than ordinary, office-grade USB hubs, it’s designed to allow you to operate USB peripherals in areas with lots of electromagnetic interference (EMI) and prevent data errors caused by such interference.

Tested to meet heavy industrial EMC standards, the hub is also designed to prevent ESD (electrostatic discharge) from damaging your connected USB devices—which makes it ideal for use near electronically noisy motor controls, variable frequency drives, and equipment with large electrical loads.

Because the hub has high-retention ports for device connections, standard USB cables are a lot less likely to shake loose—even in environments with lots of equipment vibration. (Disconnecting them requires up to 1.5 kg of force.) Cables click into the ports securely to help eliminate data loss.

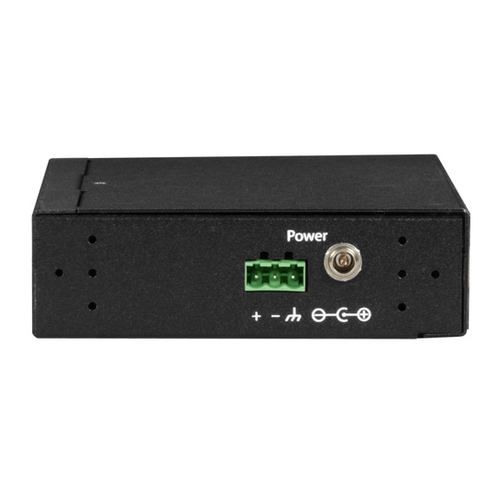

Also, because it can be powered via the USB bus, you don’t need to locate it next to a power outlet. But, if your downstream USB devices require extra power, the hub can be used with an external power supply. Through its terminal block input or locking barrel plug, it receives power externally from a 10–30-VDC source.

When the hub is using USB bus power, it provides a maximum of 100 mA to each downstream port; when powered externally, it provides 500 mA to each downstream port.

The hub includes hardware for mounting, including a DIN rail mounting bracket and panel-mount brackets.
