ICI202A: 4 ports
Photo may vary from actual product
Isolated USB Hub - Industrial-Grade
Isolated USB Hub - Industrial-Grade
Isolated USB Hub - Industrial-Grade
Isolated USB Hub - Industrial-Grade


Isolated USB Hub - Industrial-Grade


This rugged, ESD-protected and isolated hub helps ensures maximum uptime for USB devices.


  • Features high electrostatic discharge protection (Level 4, 15 kV).
  • Offers 4-kV isolation between upstream and downstream ports.
  • Included high-retention ports to help keep USB cables tightly connected.
  • Withstands a wide temperature range: -40 to +80° C.
  • Housed in a durable, IP30-rated metal enclosure.
  • UL® listed for use in Class 1 Division 2 hazardous areas.
  • Meets the EN60601-1-2 standard for medical electronics.
  • Tested for 50G shock and 4g vibration.
  • USB 1.1 and USB 2.0 compatible.
  • Supports USB speeds of 12 Mbps.
  • Includes panel- and DIN rail-mounting hardware.
  • Use either a locking barrel plug and terminal block for power input.
  • Warranty: 5 Year Double Diamond™ Warranty (Standard)

  Product       Code


4 ports
  Isolated USB Hub - Industrial-Grade
Isolated USB Hub - Industrial-Grade

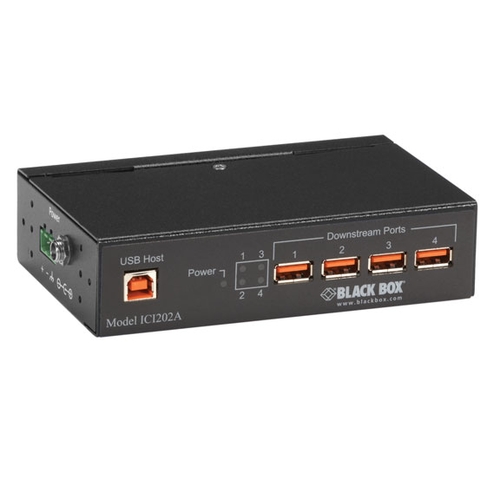

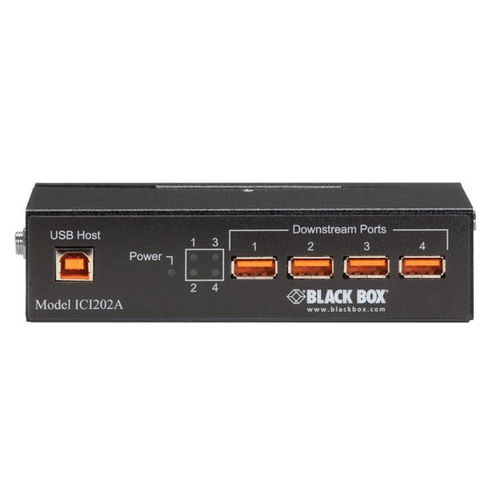

  ICI202A
NOTE: A power supply is not included. To order see PS290 power supply under accessories.

Accessories

  Product     Code

Power Supply
  Power Supply for Ind. USB Gateway, 100-240 VAC/12VDC, 4 kV Isolation
Power Supply for Ind. USB Gateway, 100-240 VAC/12VDC, 4 kV Isolation
  PS290

A great choice for factory, utility, engineering, and even healthcare applications, the Black Box® Industrial-Grade USB Hub with Isolation enables more reliable USB device connectivity in harsh environments.

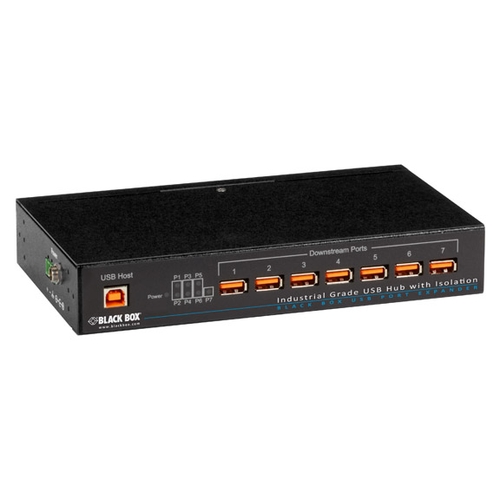

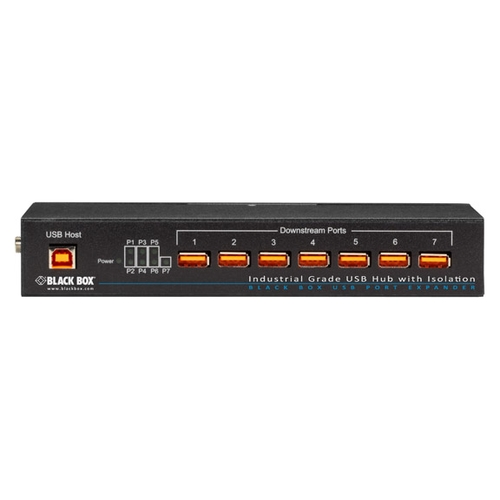

The hub expands one USB port into four or seven, so you can connect additional USB peripherals to your host system via its upstream port. Considerably more rugged than ordinary, office-grade USB hubs, it’s designed to allow you to operate USB peripherals in areas with lots of electromagnetic interference (EMI) and prevent data errors caused by such interference.

Tested to meet heavy industrial EMC standards, the hub is also designed to prevent ESD (electrostatic discharge) from damaging your connected USB devices—which makes it ideal for use near electronically noisy motor controls, variable frequency drives, and equipment with large electrical loads.

The hub supports full-speed (12 Mbps) USB 2.0 connections and offers isolation from ground loops. Use it, for instance, in areas where you are connecting a PLC in one cabinet to a drive in another cabinet, or in tightly packed medical cart. It enables data to pass unaffected while 4-kV isolation between the upstream and downstream USB ports helps prevent harm to important USB devices.

Because the hub has high-retention ports for device connections, standard USB cables are a lot less likely to shake loose—even in environments with lots of equipment vibration. Cables click into the ports securely to help eliminate data loss.

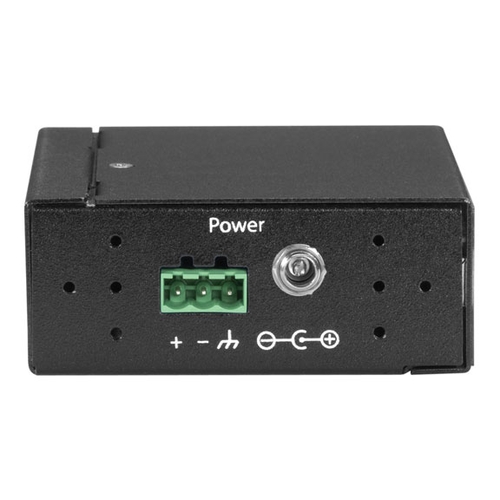

Through its terminal block input or locking barrel plug, it receives power externally from a 10–30-VDC source and provides 500 mA to each downstream port.

The hub includes hardware for mounting, including a DIN rail mounting bracket and panel-mount brackets.
