IC401A-R2: USB 1.1 & USB 2.0, 100m, 1 port

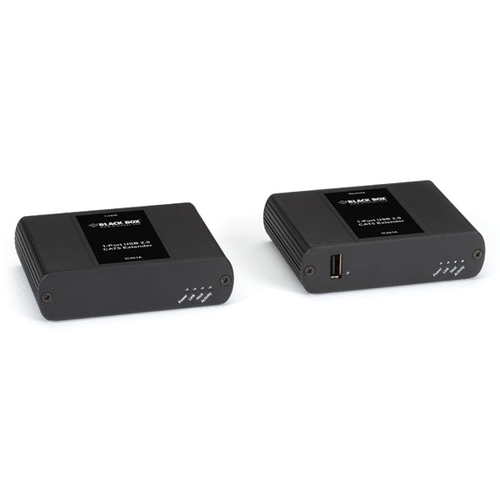

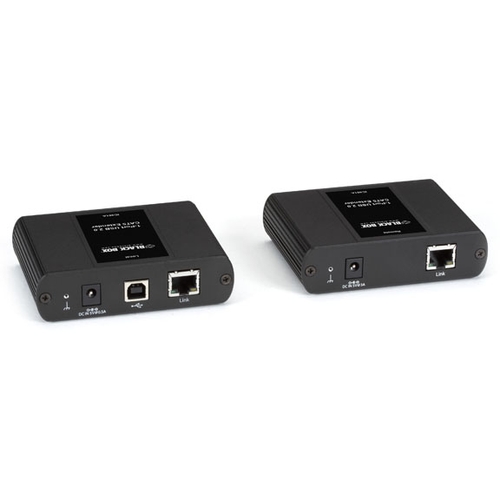

Photo may vary from actual product
USB 2.0 Extender - CATx, FCC Class B, 1-Port


USB 2.0 Extender - CATx, FCC Class B, 1-Port


Easily extend a wide range of USB devices beyond the desktop using CATx.


  • Extends USB 2.0 high-speed devices beyond the desktop up to 100 m.
  • Also extends USB 1.1 (low-speed or full-speed) devices.
  • Remote unit provides one USB 2.0 port.
  • Operates with USB 2.0 high-speed host controllers and USB 1.1 classic hosts.
  • Supports all USB device types at up to 480 Mbps.
  • Ready to operate right out of the box, no new driver installation required.
  • Supports all major operating systems.
  • AC power adapter at remote unit provides standard 1A to USB port.
  • Local unit has an optional power adapter available.
  • Ideal for a wide variety of USB devices, including printers, scanners, hard drives, audio devices, touchscreens, Web cams, and game controllers.
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)

  Product       Code
USB 1.1 & USB 2.0
100m

1 port
  USB 2.0 Extender - CATx, FCC Class B, 1-Port
USB 2.0 Extender - CATx, FCC Class B, 1-Port
  IC401A-R2

Accessories

  Product     Code

Rack/Mount Kit
  USB Extender Mounting Kit
USB Extender Mounting Kit
  IC401MK

The 1-Port Ultimate USB Extender is a single port USB 2.0 high speed extender, enabling USB 2.0 connections at up to 480Mbps over 100m of CAT5e or better cabling. The Extender provides a remote single port USB 2.0 powered hub delivering standard 1A power and supporting all USB 1.1 and 2.0 device types including isochronous web cams.
