IC101A: USB 1.1 & USB 2.0, 40m, 1 port

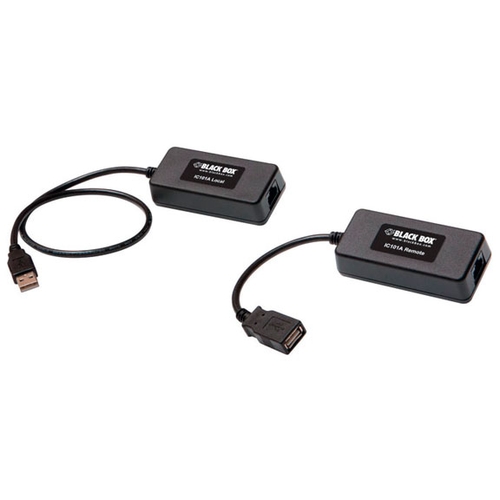

Photo may vary from actual product


USB 1.1 CATx Extender


Extends USB peripherals beyond the desktop up to 40 meters


  • Extend USB peripherals including keyboards, mice, interactive white boards, and game controllers up to 40 meters.
  • Some low-speed HID devices can be extended out to 85 meters.
  • Extender supplies up to 400mA to USB devices.
  • Will support USB 2.0 at a maximum of 12 Mbps, or 1.5 Mbps for low-speed USB 1.1 devices.
  • Plug and play. No software drivers needed.
  • Supports all major operating systems, including Windows®, Mac OS X®, and Linux®.
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code
USB 1.1 & USB 2.0
40m

1 port
  USB 1.1 CATx Extender
USB 1.1 CATx Extender
  IC101A

Accessories

  Product     Code

  USB 2.0 Cable - Type A/Type A, M/F, 3m
USB 2.0 Cable
  USB05E-0010
  USB 2.0 Cable - Type A/Type A, M/F, 1.8m
USB 2.0 Cable
  USB05E-0006
  USB 2.0 Cable - Type A/Type A, M/F, 0.9m
USB 2.0 Cable
  USB05E-0003-R2

Available Current—400mA max available to Remote Extender when Local Extender is supplied with 700mA
Link Connector—RJ-45
Pig Tail Length—Local: 45.7 cm (18"); Remote: 15.2 cm (6")
Range —
Full-speed and low-speed: Up to 40 m (131 ft.);
Low-speed: Up to 85 m (279 ft.)
USB Connector—
Local: (1) USB Type A Plug;
Remote: (1) USB Type A receptacle
Compliance—
Emissions: FCC (Class A), CE (Class A)
Immunity: CE Criteria A
Environmental: RoHS
Safety: CPSIA, Flammability V-1
Size (Each Extender) — 8.5H x 4W x 2.2D cm (3.34"H x 1.57"W x .87"D)
Weight (Each Extender)— 49.9 g (0.11 lb.)
Environmental —
Operating temperature: 0 to 55 ° C (32 to 151° F);
Operating humidity: 0 to 94% relative, noncondensing
