MEG250AE-R2: DIN-Rail mounting, 2 wires, 100Mbps, 12 - 48 VDC

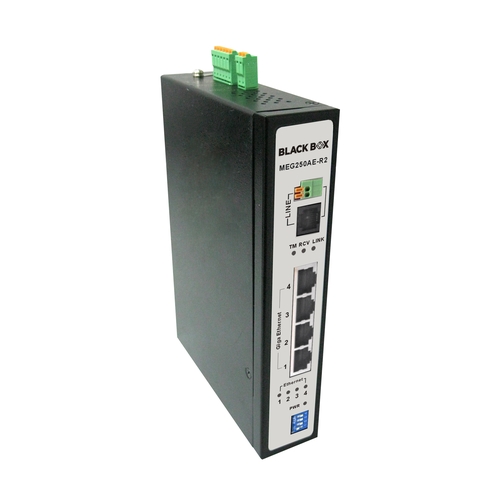

Photo may vary from actual product
VDSL2 Industrial Bridge
VDSL2 Industrial Bridge


VDSL2 Industrial Bridge

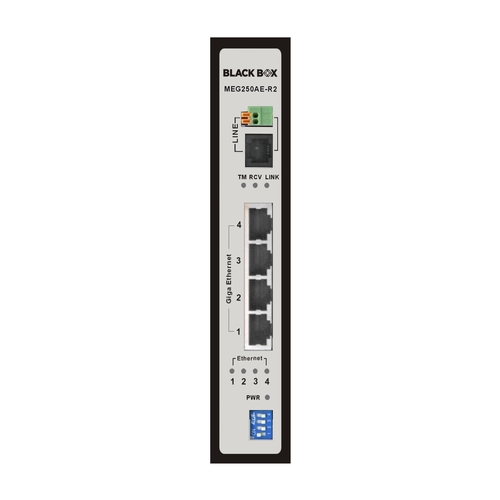

VDSL2 single port bridge equipped with four 10/100Mbps Ethernet ports.


  • VDSL2 Modem with 100Mbps symmetric throughput.
  • Long reach mode up to 1.9km using 24AWG phone wire
  • Integrated 4-port 10/100Mbps switch.
  • Large packet size up to 1536 bytes.
  • Easiest configuration – transmitter and receiver mode through DIP selectable.

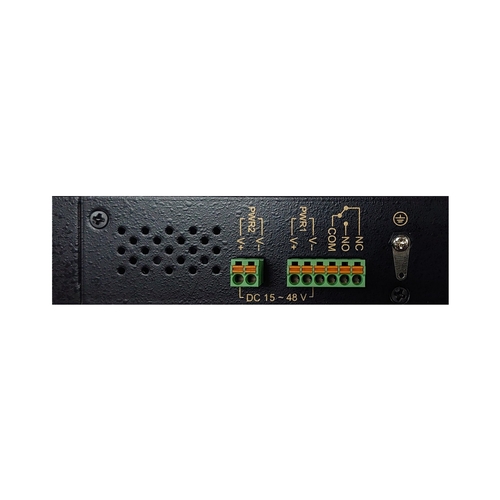

  • Direct DC input with redundant dual 12-48VDC power input.
  • Alarm relay contact (relay output 1A@24VDC).
  • Overload current protection.
  • Operating temperature from -20 – up to 70°C.
  • DIN-rail mountable IP30 metal case.

  Product       Code
DIN-Rail mounting
2 wires
100Mbps

12 - 48 VDC
  VDSL2 Industrial Bridge
VDSL2 Industrial Bridge
  MEG250AE-R2 New!
Note1: MEG250AE is sold as a single unit, for a complete route you need at least two units.
Note2: Please order a power supply separately if needed

Accessories

  Product     Code

  VDSL2 Mini Modem, 100 Mbit/s Ethernet Extender over Copper - Desktop, 2 wires, 100Mbps, 90-240 VAC
VDSL2 Mini Modem, 100 Mbit/s Ethernet Extender over Copper
  MEG101AE-R5

The Industrial VDSL2 Bridge is the latest addition to the well-established VDSL Extender family from Black Box. Like the VDSL2 Extenders (MEG201AE-R2) the new VDSL2 Bridge provides high speed transmissions using the telephone wires that are already installed within the facility. The bridge transmits data at 100 Mbps as well as broadband Multimedia services to all stations required. To configure for either local Central Office (CO) or remote customer premise equipment (CPE) operation, just flip a DIP-switch.

Ready for industrial applications
The Industrial VDSL2 Bridge is designed especially for industrial applications with a rugged metal IP30 chassis supporting Din-rail mount installations and an extended temperature range from -20° up to +70° Celsius. Integrated surge and overload current protection ensure a long life cycle. Redundant power and direct DC inputs from 12 to 48VDC complete the intelligent design.

Integrated Ethernet Switch
The VDSL2 Bridge is equipped with four 10/100Mbps Ethernet ports that provide an economical solution for your industrial requirements like factories, MRTs, train stations, ticketing machines, parking systems and other point-to-point applications.

Comprehensive feature set
The VDSL2 Bridge has a wide range of features including easy configuration, alarm relay contacts, anti-noise interleave delay, reverse polarity protection and the support of large packet sizes up to 1536 bytes.

Link aggregation
The Industrial VDSL2 Bridge works perfectly together with the VDSL2 Switch (MEG821AE). MEG821AE is a fully enabled Layer II switch that provides 8-ports to aggregate multiple VDSL2 links at a central point.
