LGC5210A: (2) 10/100/1000 Mbps RJ45, (1) 100/1000M SFP, range dep. on SFP, Mode dep. on SFP, Connector dep. on SFP, AC/DC
Photo may vary from actual product
LGC5210A: (2) 10/100/1000 Mbps RJ45, (1) 100/1000M SFP, range dep. on SFP, Mode dep. on SFP, Connector dep. on SFP, AC/DC

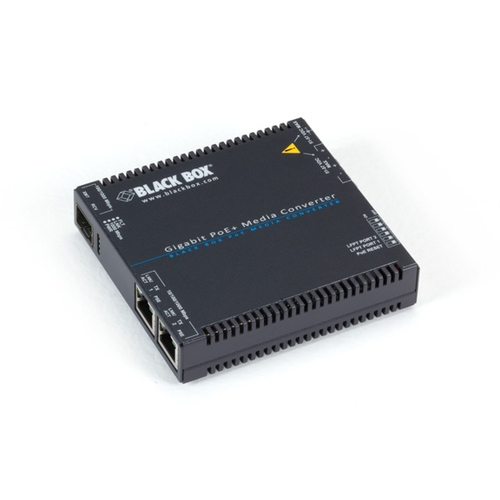

Gigabit PoE+/PSE Media Converter


Connect with fiber and provide power to remote PoE+ devices.

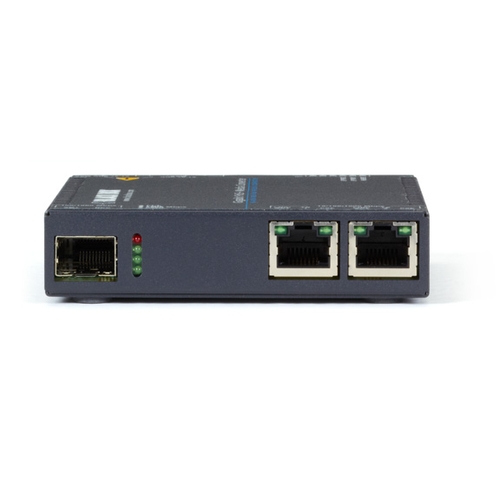

  • Features two 10-/100-/1000-Mbps copper ports and one fiber port.
  • Both UTP ports are autosensing with Auto MDI/MDI-X; both UTP ports support 802.3at PoE +.
  • Acts as power sourcing equipment (PSE) on the copper side to power PoE+ devices.
  • Features an extended temperature range when used with DC terminal-block power.
  • Rugged metal chassis.
  • Warranty: 6 Year Double Diamond™ Warranty (Standard)

  Product       Code
(2) 10/100/1000 Mbps RJ45
(1) 1000BaseLX SM SC
15km
Singlemode
SC

AC/DC
  Gigabit PoE+/PSE Media Converter
Gigabit PoE+/PSE Media Converter
  LGC5212A
(1) 100/1000M SFP
range dep. on SFP
Mode dep. on SFP
Connector dep. on SFP

AC/DC
  Gigabit PoE+/PSE Media Converter
Gigabit PoE+/PSE Media Converter
  LGC5210A

Accessories

  Product     Code

  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
  SFP, 1250-Mbps - LC, MM 850nm, 550m
SFP, 1250-Mbps
  LFP441
  SFP, 1250-Mbps - LC, Single-mode 1310nm, 20km
SFP, 1250-Mbps
  LFP442
  SFP, 1250-Mbps, SGMII - 100m, RJ-45, CATx
SFP, 1250-Mbps, SGMII
  LFP443
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403
Rack/Mount Kit
  Wallmount Bracket for PoE PSE Media Converters
Wallmount Bracket for PoE PSE Media Converters
  LGC5200-WALL
  DIN Rail Clip for Media Converters
DIN Rail Clip for Media Converters
  LXC-DR

This tough media converter is the ideal way to extend your network over fiber and also power a PoE+ device. Use it to link to faraway PoE+ devices such as IP security cameras, wireless access points, and VoIP phones.

Fiber Options
All models of the Gigabit PoE+ PSE Media Converters feature two autosensing 10/100/1000 UTP ports. On the fiber side there are three options to choose from: LGC5211A provides one multimode fiber port that can extend a network connection up to 550 meters, LGC5212A has one single-mode fiber port to extend a network connection up to 15 kilometers and LGC5210A finally offers an SFP port that can be customized to virtually any interface—including multimode fiber, single-mode fiber, or Gigabit copper—through the use of a standard SFP.

Power over Ethernet
Both UTP ports support 802.3at Power over Ethernet Plus, enabling the converter to power a PoE+ PD device.

Power Options
The Gigabit PoE Media Converter can be powered three ways: from an AC power supply (LGC5210-PS included), via the DC power jack, or via the DC terminal block. When used with DC power to the terminal block, the converter supports an extended operating temperature range of 0 to +70° C.

The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter, enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately).
