Store home > Networking > Converters > Media > Economy DIN rail 10-100 Media Converter 4P

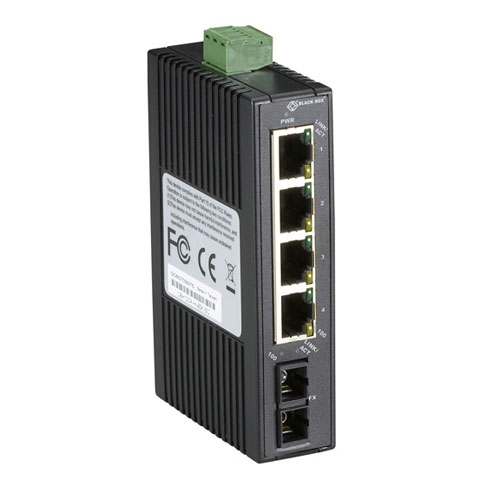

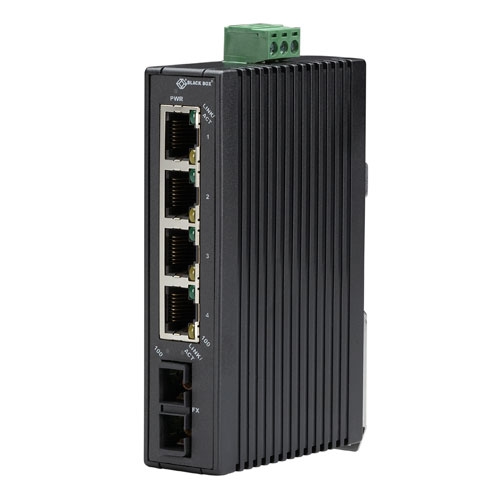

LBH120A-H-SC: (4) 10/100 Mbps RJ45, (1) 100BaseFX MM SC, 2km
Photo may vary from actual product

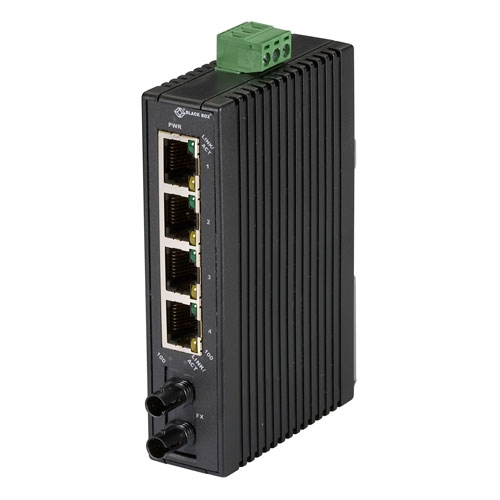

LBH120A-H-ST: (4) 10/100 Mbps RJ45, (1) 100BaseFX MM ST, 2km
LBH120A-H-20K-SC: (4) 10/100 Mbps RJ45, (1) 100BaseFX SM SC, 20km


Economy DIN rail 10-100 Media Converter 4P


Price affordable DIN rail-mountable media converter enables you to extend your network up to 40 km over fiber.


  • Direct DC power: 12 to 48VDC.
  • Extended temperature range of -10 to +60° C.
  • Distances of up to 40 kilometers.
  • Adds 4 ports to your 10/100M network.
  • Plug & Play operation.
  • DIN rail mountable.
  • Warranty: 5 Year Double Diamond™ Warranty (Standard)

  Product       Code
(4) 10/100 Mbps RJ45
(1) 100BaseFX MM SC

2km
  Economy DIN rail 10-100 Media Converter 4P
Economy DIN rail 10-100 Media Converter 4P
  LBH120A-H-SC
(1) 100BaseFX MM ST

2km
  Economy DIN rail 10-100 Media Converter 4P
Economy DIN rail 10-100 Media Converter 4P
  LBH120A-H-ST
(1) 100BaseFX SM SC

20km
  Economy DIN rail 10-100 Media Converter 4P
Economy DIN rail 10-100 Media Converter 4P
  LBH120A-H-20K-SC

These inexpensive, unmanaged Layer 2 media converters easily enable you to extend your 10- or 100Mbps network over 100Mbps fiber optic cable over distances up to 40 kilometers. In addition it adds four ports at the edge of your network.

The converter features an industrial-strength plastic case and complies with IEC 61000-Part 6-2 generic standards for electromagnetic compatibility (EMC) in industrial environments. It offers full wire-speed forwarding rates across the network.
Auto MDI/MDI-X copper port auto-negotiates for 10/100Mbps speed and auto detects full-or half-duplex mode.

The converters can be installed easily on a DIN rail. The mounting kit is included.
