Store home > Networking > Switches > Managed Switches > Industrial Gigabit Ethernet Managed L2+ Switch - PoE+, Extreme Temperature - INDRy
LIE1082A: Web smart / SNMP V1/2/3 / CLI, 6 RJ45-ports:(4) 10/100/1000 PoE/PoE+,(2) 10/100/1000 non PoE + (2) SFPs 100/1000M
Photo may vary from actual product
Industrial Gigabit Ethernet Managed L2+ Switch - PoE+, Extreme Temperature - INDRy


Industrial Gigabit Ethernet Managed L2+ Switch - PoE+, Extreme Temperature - INDRy


Compact PoE+ switch designed for harsh environments and mission-critical applications.


  • PoE 802.3af and PoE+ 802.3at compatible. Delivers up to 30W per port. Dependent on the power supply used.
  • Use to connect and power security cameras and access points.
  • Rated for extreme temperatures of -40 to +75° C.
  • Managed switch supports LACP, Spanning Tree, and ring fail-over for redundancy and resiliency.
  • Dual DC power inputs for redundancy.
  • IP30-rated housing is also rated for shock and vibration protection.
  • Manage through a Web interface, SNMP or command-line interface (CLI).
  • DIN rail or wall mount.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code
Web smart / SNMP V1/2/3 / CLI

6 RJ45-ports:(4) 10/100/1000 PoE/PoE+,(2) 10/100/1000 non PoE + (2) SFPs 100/1000M
  Industrial Gigabit Ethernet Managed L2+ Switch - PoE+, Extreme Temperature - INDRy
Industrial Gigabit Ethernet Managed L2+ Switch - PoE+, Extreme Temperature - INDRy
  LIE1082A

Accessories

  Product     Code

  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
  DIN Rail Power Supplies - 48VDC, 40W
DIN Rail Power Supplies
  MDR-40-48
  DIN Rail Power Supplies - 48VDC, 120w
DIN Rail Power Supplies
  SDR-120-48
  DIN Rail Power Supplies - 48VDC, 240w
DIN Rail Power Supplies
  SDR-240-48
  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
  CAT6 S/FTP GigaTrue® 3 Lockable Patch Cable, LSZH - Blue, 3m
CAT6 S/FTP GigaTrue® 3 Lockable Patch Cable, LSZH
  C6PC60S-BL-03M
  CAT6 S/FTP GigaTrue® 3 Lockable Patch Cable, LSZH - Blue, 5m
CAT6 S/FTP GigaTrue® 3 Lockable Patch Cable, LSZH
  C6PC60S-BL-05M
  FO OS1/2 Single-Mode Enhanced Patch Cables LSZH - LC-LC Duplex, 1m
FO OS1/2 Single-Mode Enhanced Patch Cables LSZH
  EFE080-001M
  FO OS1/2 Single-Mode Enhanced Patch Cables LSZH - LC-LC Duplex, 2m
FO OS1/2 Single-Mode Enhanced Patch Cables LSZH
  EFE080-002M
  FO OS1/2 Single-Mode Enhanced Patch Cables LSZH - LC-LC Duplex, 5m
FO OS1/2 Single-Mode Enhanced Patch Cables LSZH
  EFE080-005M
  OM3 Patch Cable 50µm (LZ0H) - Purple, LC-LC Duplex, 3m
OM3 Patch Cable 50µm (LZ0H)
  EFE350-003M
  OM3 Patch Cable 50µm (LZ0H) - Purple, LC-LC Duplex, 5m
OM3 Patch Cable 50µm (LZ0H)
  EFE350-005M

PoE+ for convenience

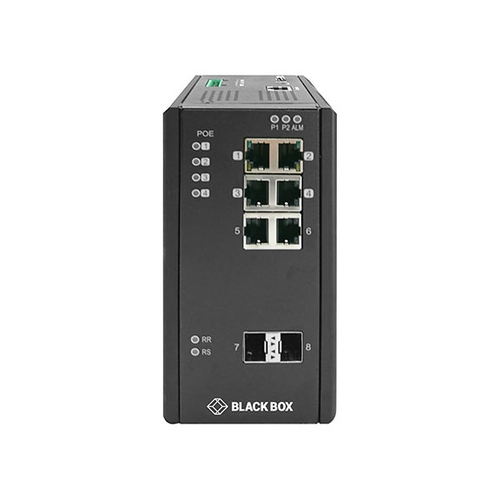

LIE1082A has (4) 10/10/1000-Mbps RJ-45 PoE/PoE+ copper ports, (2) 10/100/1000-Mbps copper ports and (2) 100/1000 Ethernet SFP slots for network flexibility and scalability. You can extend your network over multimode or single-0mode fiber at distances up to 80 km, depending on the SFP you choose.

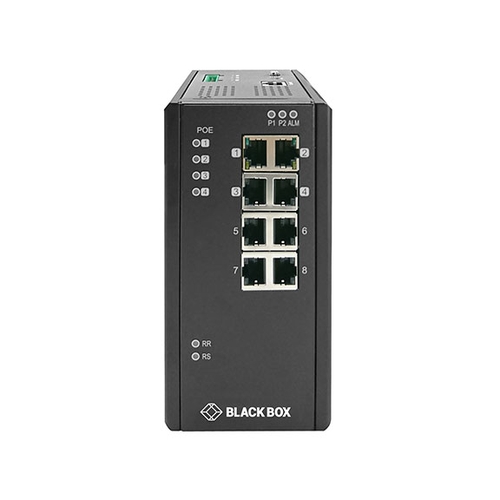

LIE1080A has eight 10/10/1000-Mbps PoE/PoE+ copper ports. These ports can power distant access points, security cameras, building access devices and industrial equipment in harsh environments where it's impractical to run electrical wires. The switch features full wire-speed forwarding rates, auto-negotiates for network speeds and Auto-MDI/MDI-X, eliminating the need for crossover cables.

Extreme applications
Encased in an IP30-rated metal case, this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for:
  • Security and surveillance, particularly to backhaul IP security camera data.
  • Military applications, especially in ships and other vehicles.
  • Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
  • Oil and gas fields or remote equipment monitoring and control.
  • Building automation for controlling HVAC and lighting systems.

Maximize uptime
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. You'll also eliminate the need to send IT technicians on site—thus lowering costs.
The switch is fully manageable through SNMP, a Web browser, Telnet. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications.
The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging, MAC-based trunking, IP-multicast IGMP snooping, rapid spanning tree for redundancy. Plus, it has 802.1x port-based authentication for security.
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. You'll also eliminate the need to send IT technicians on site—thus lowering costs.

Fast failovers
For redundancy, the switch has two DC power inputs. If one power source fails, the switch automatically falls over to the second power source. It offers a 20 millisecond or less failover. In addition, an alarm will alert you in case of a power failure. The switch also gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol, and a ring protocol.

Installation options
The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-12, MDR-40-24, MDR-40-48, and SDR-240-48) are sold separately and will determine the amount of watts available for PoE operation.
