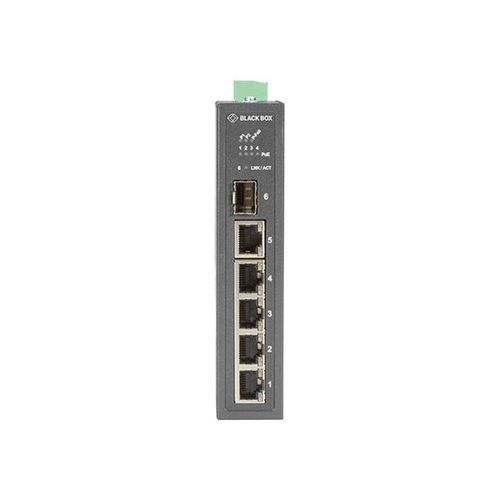

LPH3061A: -40 to +75° C, 6-port: (4) 10/100 RJ45 PoE+, (1) 10/100/1000 RJ45, (1) SFP, 48 VDC
Photo may vary from actual product
LPH3061A: -40 to +75° C, 6-port: (4) 10/100 RJ45 PoE+, (1) 10/100/1000 RJ45, (1) SFP, 48 VDC
LPH3061A: -40 to +75° C, 6-port: (4) 10/100 RJ45 PoE+, (1) 10/100/1000 RJ45, (1) SFP, 48 VDC
LPH3061A: -40 to +75° C, 6-port: (4) 10/100 RJ45 PoE+, (1) 10/100/1000 RJ45, (1) SFP, 48 VDC

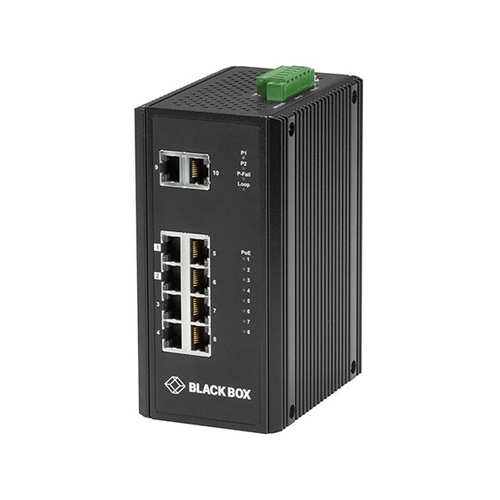

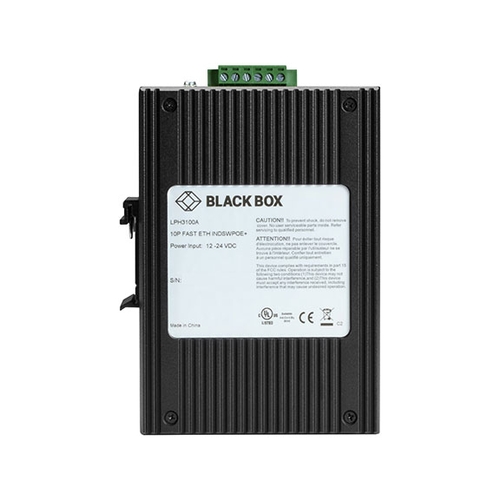

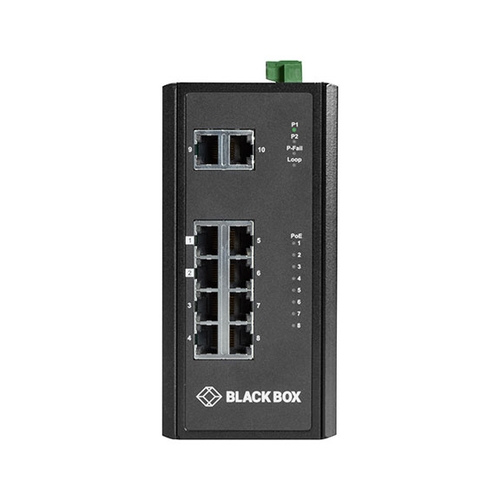

LPH3100A: -40 to +75° C, 10-port: (8) 10/100/1000 RJ45 PoE+, (2) 10/100/1000 RJ45, 12 - 24 VDC
LPH3100A: -40 to +75° C, 10-port: (8) 10/100/1000 RJ45 PoE+, (2) 10/100/1000 RJ45, 12 - 24 VDC
LPH3100A: -40 to +75° C, 10-port: (8) 10/100/1000 RJ45 PoE+, (2) 10/100/1000 RJ45, 12 - 24 VDC
LPH3100A: -40 to +75° C, 10-port: (8) 10/100/1000 RJ45 PoE+, (2) 10/100/1000 RJ45, 12 - 24 VDC


Industrial Ethernet PoE+ Switch - Unmanaged, Extreme Temperature


Power PoE devices in harsh environments.


  • Provides eight 10/100/1000 PoE + and two Gigabit copper ports.
  • Extended temperature range of -40 to +167° F (-40 to +75° C) with an IP30 case.
  • Ideal for security and surveillance, building automation, oil/gas facilities, military applications and factories.
  • EMS Level 3 protection for extreme outdoor environments.
  • Supports redundant 12–24 VDC power.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code
-40 to +75° C
6-port: (4) 10/100 RJ45 PoE+, (1) 10/100/1000 RJ45, (1) SFP

48 VDC
  Industrial Ethernet PoE+ Switch - Unmanaged, Extreme Temperature
Industrial Ethernet PoE+ Switch - Unmanaged, Extreme Temperature
  LPH3061A
10-port: (8) 10/100/1000 RJ45 PoE+, (2) 10/100/1000 RJ45

12 - 24 VDC
  Industrial Ethernet PoE+ Switch - Unmanaged, Extreme Temperature
Industrial Ethernet PoE+ Switch - Unmanaged, Extreme Temperature
  LPH3100A

Accessories

  Product     Code

  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
  FO OS1/2 Single-Mode Enhanced Patch Cables LSZH - LC-LC Duplex, 1m
FO OS1/2 Single-Mode Enhanced Patch Cables LSZH
  EFE080-001M
  FO OS1/2 Single-Mode Enhanced Patch Cables LSZH - LC-LC Duplex, 2m
FO OS1/2 Single-Mode Enhanced Patch Cables LSZH
  EFE080-002M
  FO OS1/2 Single-Mode Enhanced Patch Cables LSZH - LC-LC Duplex, 3m
FO OS1/2 Single-Mode Enhanced Patch Cables LSZH
  EFE080-003M
  OM3 Patch Cable 50µm (LZ0H) - Purple, LC-LC Duplex, 3m
OM3 Patch Cable 50µm (LZ0H)
  EFE350-003M

Reliable and rugged
Unlike the Ethernet switches in your wiring closet or computer center, the switches at the edges of your network have to withstand extreme temperatures and conditions. This is where the Industrial Unmanaged Gigabit Ethernet PoE+ Switch from Black Box comes in. Use this rugged switch in harsh environments with temperature extremes of -40° to +75°C, such as loading docks, remote monitoring stations and industrial facilities.

PoE versatility

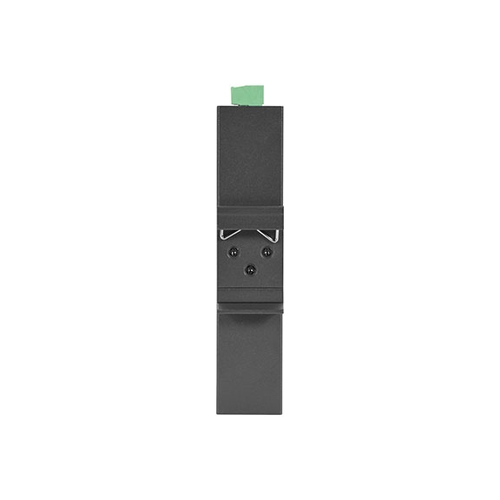

Use the switch's four or eight PoE ports to power remote PoE/PoE+ PSD devices such as security cameras, traffic signals, wireless access points, building access devices and automation equipment in areas where it may be difficult to run electrical wiring. The rugged IP30 metal case is sealed to resist contaminants such as dust, dirt and moisture and can be DIN-rail or wall mounted.

A multitude of applications
  • Security and surveillance, particularly to backhaul IP security camera data
  • Military applications, especially in ships and other vehicles
  • Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment
  • Oil and gas fields or remote equipment monitoring and control
  • Building automation for controlling HVAC and lighting systems. Security/surveillance to backhaul IP camera data.

Redundant power

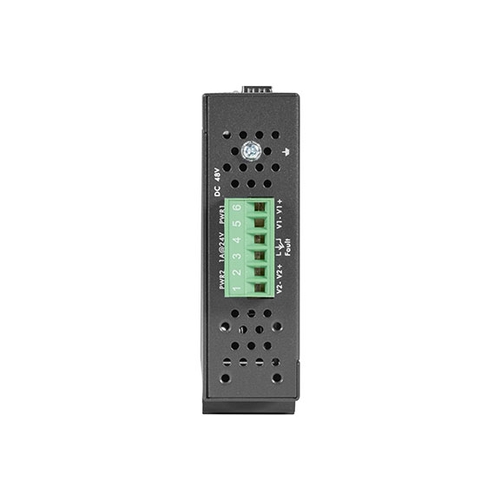

LPH3061A features 48 VDC redundant power, which is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resettable Fuse. The former tolerates reverse power wiring while the later protects the switch from overload currents. For PoE, the switch has a power budget of 90 watts.

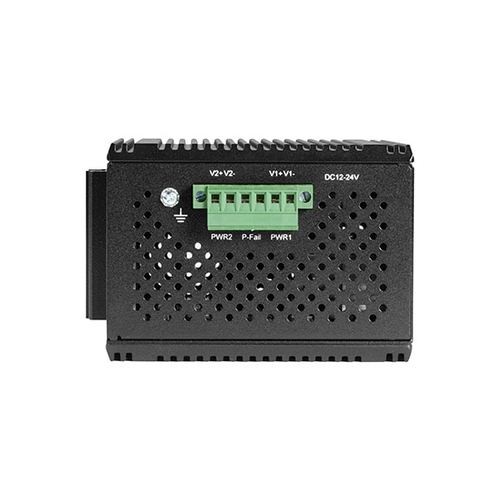

LPH3100A has two 12-24 VDC power inputs with a P-fail relay. If one power source fails, the switch automatically falls over to the second power source.

Alarm alerts
Each port has two LEDs to show link and collision status. The switch also has a P-Fail LED which, in the event of a power failure, will activate the alarm to notify administrators.

Easy to set up
The switch is literally plug-and-play. All ports are autosensing for speed and duplex, adjusting to the connected device automatically. They also feature Auto MDI/MDI-X, eliminating the need for crossover cables.
