INDRy II S
Photo may vary from actual product
LIG401A: -40 to +75° C, (4) 10/100/1000M RJ45 + (1) SFP-slot, 12-58 VDC
LIG401A: -40 to +75° C, (4) 10/100/1000M RJ45 + (1) SFP-slot, 12-58 VDC
LIG401A: -40 to +75° C, (4) 10/100/1000M RJ45 + (1) SFP-slot, 12-58 VDC
LIG401A: -40 to +75° C, (4) 10/100/1000M RJ45 + (1) SFP-slot, 12-58 VDC


INDRy II S


Unmanaged Gigabit Switch for harsh environments

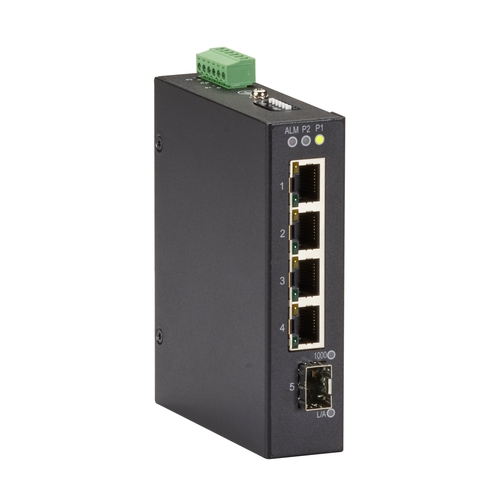

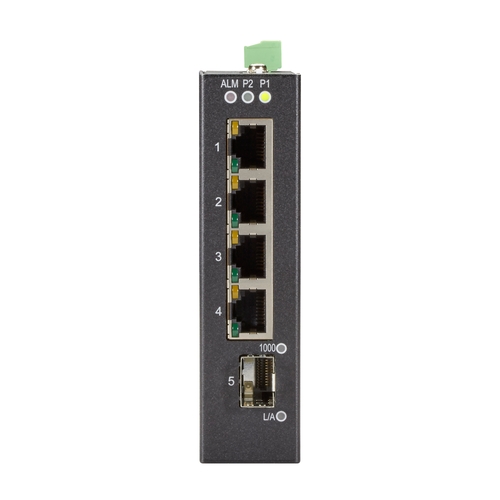

  • Provides four Gigabit 10-/100-/1000M copper ports plus one Multirate SFP Slot.
  • Supports 802.1p and TOS/DS Quality of Service with four queues per port.
  • Allows 9K jumbo frames.
  • Extended operating temperature from -40 to +75° C.

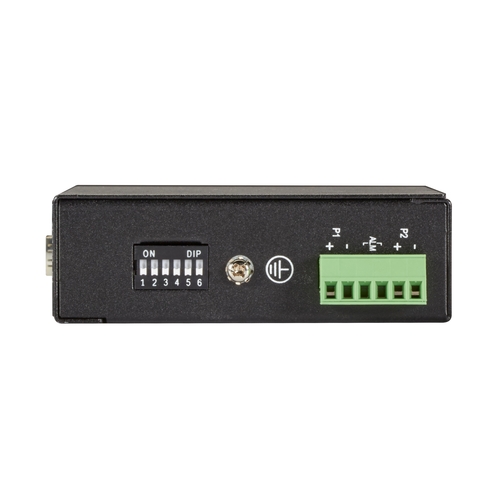

  • Dual power input (12 to 58 VDC) and reverse polarity protection.
  • IP30 rated, fanless design.
  • Meets numerous harsh/industrial standards.
  • Options for DIN rail- and wall- mounting.

  Product       Code
-40 to +75° C
(4) 10/100/1000M RJ45 + (1) SFP-slot

12-58 VDC
  INDRy II S
INDRy II S
  LIG401A

Accessories

  Product     Code

  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403
  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420

The INDRy II S provides five full Gigabit ports to fulfill the needs of the rapid growth of communication traffic in industrial networks. The Gigabit Switch is designed to support standard industrial applications without the need of a complex setup. It allows a true plug-and-play installation while offering comprehensive feature set.

Four ports are 10-/100-/1000 Mbps copper ports (RJ-45), the fifth port is a flexible multirate SFP-slot. Equip this slot with 100-FX or 1000BaseSX/LX/LH SFP-modules according to your needs.
