LGH1000 Series Hardened Ethernet Switch

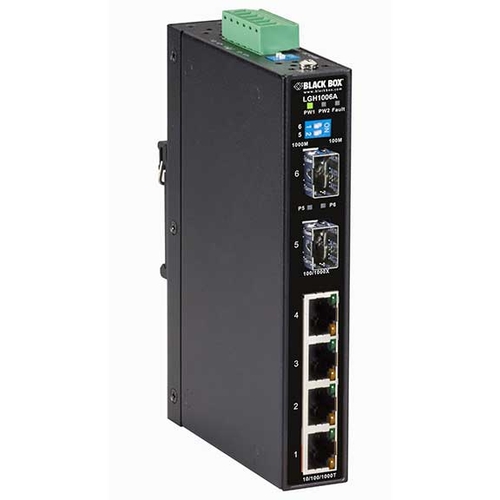

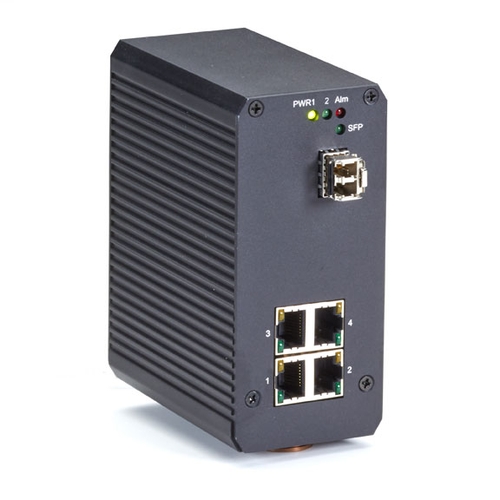

Photo may vary from actual product
LGH1000 Series Hardened Ethernet Switch
LGH1000 Series Hardened Ethernet Switch
LGH1006A: -40 to +70° C, (4) 10/100/1000M RJ45 + (2) SFP-slots, Without power supply
LGH1006A: -40 to +70° C, (4) 10/100/1000M RJ45 + (2) SFP-slots, Without power supply
LGH1006A: -40 to +70° C, (4) 10/100/1000M RJ45 + (2) SFP-slots, Without power supply


LGH1000 Series Hardened Ethernet Switch


SFP fiber uplink extends your network in harsh environments.


  • Rated for extreme temperatures.
  • IP31 metal enclosure for use in harsh indoor environments.

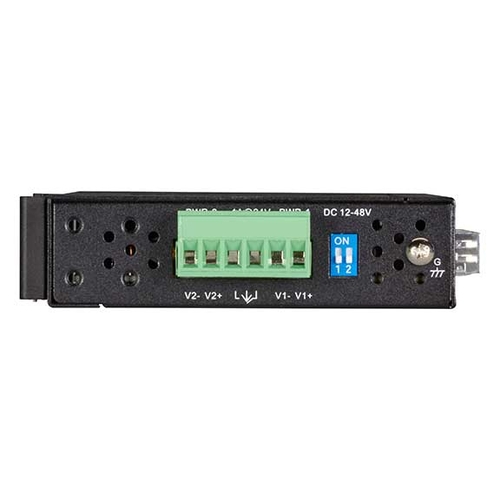

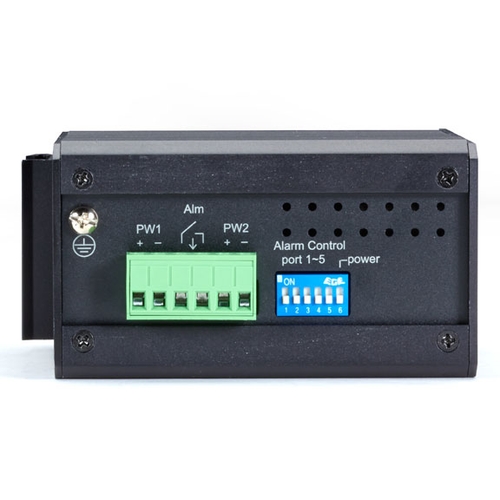

  • Dual DC power inputs for redundant power.
  • SFP port enables single-mode or multimode Gigabit fiber uplinks over long distances.
  • Provides four 10/100/1000Mbps RJ-45 ports and one or two Gigabit SFP slot(s).
  • Use in harsh applications, including factories, oil/gas fields, military vehicles/ships, HVAC controls, security and surveillance, and more.
  • Built-in smart alarm warns of power or port failures.

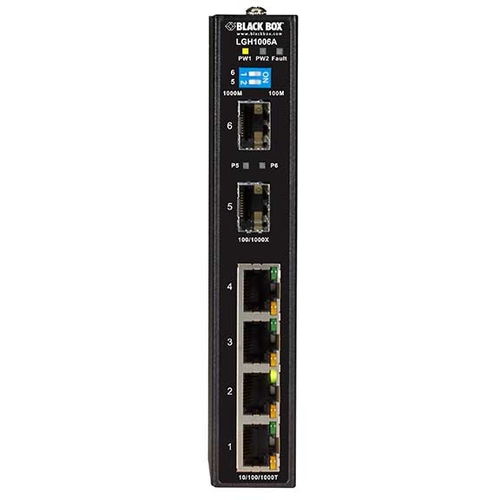

  • LEDs indicate power, alarm, speed, and link/activity.
  • DIN rail or wall mount.
  • Warranty: 5 Year Double Diamond™ Warranty (Standard)

  Product       Code
-40 to +70° C
(4) 10/100/1000M RJ45 + (2) SFP-slots

Without power supply
  LGH1000 Series Hardened Ethernet Switch
LGH1000 Series Hardened Ethernet Switch
  LGH1006A
Note: This industrial switch does not include a power supply. Use it with the MDR-40-12, MDR-40-24, SDR-120-48, or the SDR-240-48.

Accessories

  Product     Code

  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
  DIN Rail Power Supplies - 24VDC, 120w
DIN Rail Power Supplies
  SDR-120-24
  DIN Rail Power Supplies - 48VDC, 120w
DIN Rail Power Supplies
  SDR-120-48
  DIN Rail Power Supplies - 48VDC, 240w
DIN Rail Power Supplies
  SDR-240-48
  DIN Rail Power Supplies - 12VDC, 40W
DIN Rail Power Supplies
  MDR-40-12
  DIN Rail Power Supplies - 24VDC, 40W
DIN Rail Power Supplies
  MDR-40-24
  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416

Reliable and scalable.
The very reliable LGH1000 Hardened Ethernet Switches, (4) 10/100/1000-Mbps and (2) GE SFP, are designed for the far edges of your network. Use it in cold, dirty, indoor environments with temperature extremes of -40° to +70°C, such as loading docks or monitoring stations. This rugged switch comes in an IP31-rated enclosure that can be DIN-rail or wall mounted.

The 100/1000Base-X Ethernet SFP ports give you networking flexibility and scalability. You can extend your network over multimode or single-mode fiber at distances up to 30 kilometers, depending on the SFP you choose. Black Box SFPs (LFP401, LFP402, LFP403, LFP404, LFP411, LFP412, LFP413, LFP414, LFP416, LFP418, LFP420, and LFP421) are recommended.

For redundancy, the switch has two DC power inputs. If one power source fails, the switch automatically falls over to the second power source. In addition, a smart alarm will alert you in case of a power or port failure.

For easy, plug-and-play setup, the 10/100/1000-Mbps Ethernet ports are autosensing with Auto MDI/MDI-X.

A multitude of applications.
This switch can be used in a wide variety of applications, such as:
• Security and surveillance, particularly to backhaul IP security camera data.
• Military applications, especially in ships and other vehicles.
• Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
• Oil and gas fields or remote equipment monitoring and control.
• Building automation for controlling HVAC and lighting systems.
