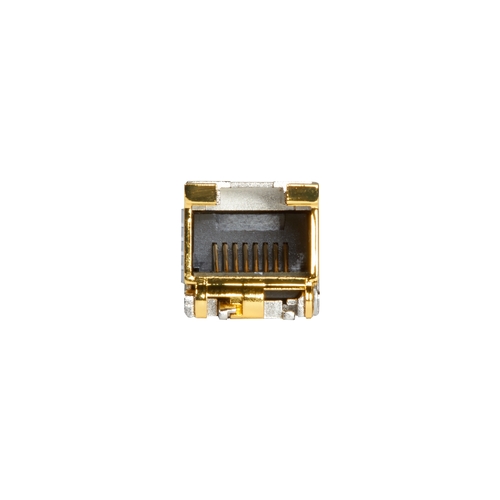

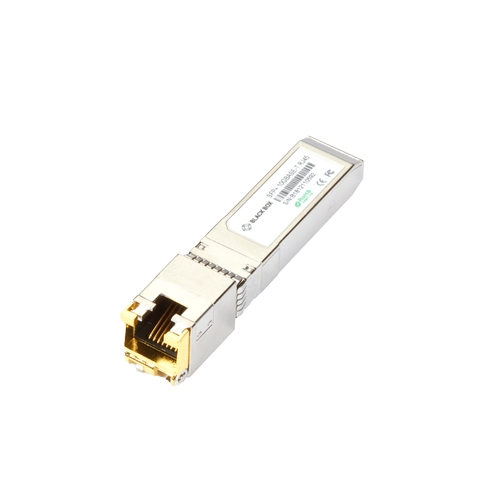

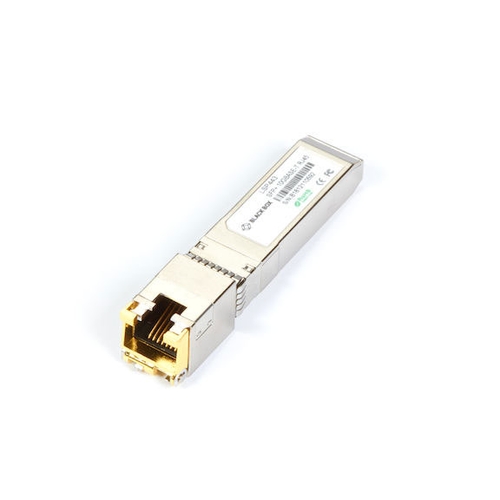

LSP443: 30m, RJ-45, CATx
Photo may vary from actual product
LSP443: 30m, RJ-45, CATx


SFP+, 10-Gbps, RJ-45


Modular flexible optical transceivers for data communications equipment.


  • 10 Gigabit Ethernet up to 30m over Cat 6A cable.
  • Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T.
  • Hot-pluggable SFP footprint.
  • Compact RJ-45 connector assembly.
  • Ambient Operating temperature: 0°C to +60°C.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code
30m
RJ-45

CATx
  SFP+, 10-Gbps, RJ-45
SFP+, 10-Gbps, RJ-45
  LSP443

Accessories

  Product     Code

  Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (48) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+ - PoE+, (48) 10/100/1000M PoE+ (RJ45) + (4) dual speed SFP/SFP+ slots, Full SNMP + web GUI
Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (48) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+
  LPB3052A
  Managed Gigabit Ethernet Switch with 10GbE uplinks - Full SNMP management, (44) RJ45 + (4) dual media UTP/SFP 10/100/1000 + (4) 1/10Gbps SFP+
Managed Gigabit Ethernet Switch with 10GbE uplinks
  LGB5052A-R3

SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi-Source Agreement (MSA). They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3. SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.
