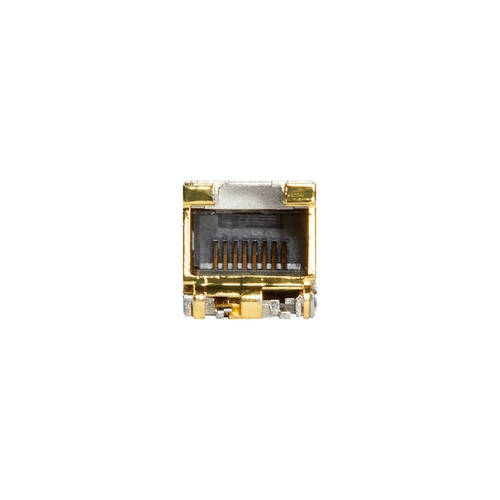

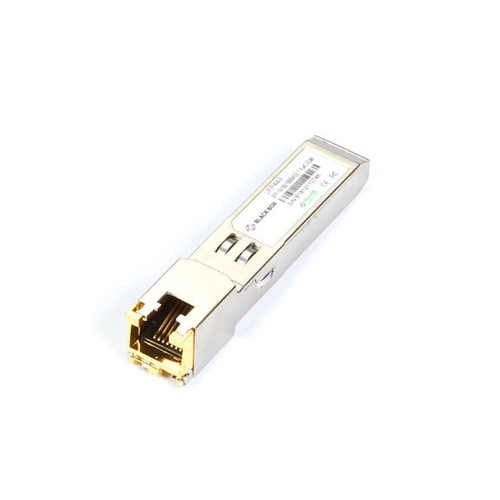

LFP443: 100m, RJ-45, CATx
Photo may vary from actual product
LFP443: 100m, RJ-45, CATx


SFP, 1250-Mbps, SGMII


Modular flexible optical transceivers for data communications equipment.


  • 10/100/1000 BASE-T operation in host systems with SGMII interface.
  • Up to 1.25 Gbps bi-directional data links for Gigabit Ethernet over CATx cable.
  • Hot-pluggable SFP footprint.
  • Low power dissipation (1.05W typical).
  • Compact RJ-45 connector assembly.
  • Fully metal enclosure, for lower EMI.
  • Extended operating temperature: 0°C to +70°C.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code
100m
RJ-45

CATx
  SFP, 1250-Mbps, SGMII
SFP, 1250-Mbps, SGMII
  LFP443

Accessories

  Product     Code

  Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (24) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+ - PoE+, (24) 10/100/1000M PoE+ (RJ45) + (2) dual media 10/100/1000M RJ45/SFP, Full SNMP + web GUI
Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (24) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+
  LPB3028A
  Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (48) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+ - PoE+, (48) 10/100/1000M PoE+ (RJ45) + (4) dual speed SFP/SFP+ slots, Full SNMP + web GUI
Gigabit Ethernet (1000-Mbps) Managed PoE+ Switch - (48) 10/100/1000-Mbps Copper RJ45 PoE+, (4) 1G/10G SFP+
  LPB3052A
  Managed Gigabit Ethernet Switch with 10GbE uplinks - Full SNMP management, (44) RJ45 + (4) dual media UTP/SFP 10/100/1000 + (4) 1/10Gbps SFP+
Managed Gigabit Ethernet Switch with 10GbE uplinks
  LGB5052A-R3

The 10/100/1000 BASE-T Copper SFP transceiver is based on the SFP Multi-Source Agreement (MSA). It is compatible with the Gigabit Ethernet standards as specified in IEEE Standard 802.3. The 10/100/1000 BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features. 10/100/1000 BASE-T is compatible with 1000BASE-X auto-negotiation but does not have a link indication feature (RX_LOS is internally grounded).
