MEG101AE-R5: Desktop, 2 wires, 100Mbps, 90-240 VAC

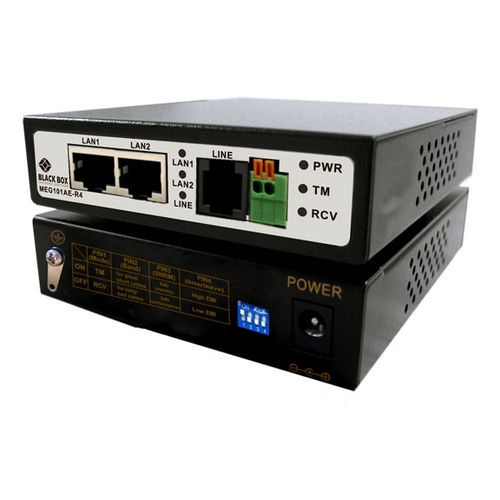

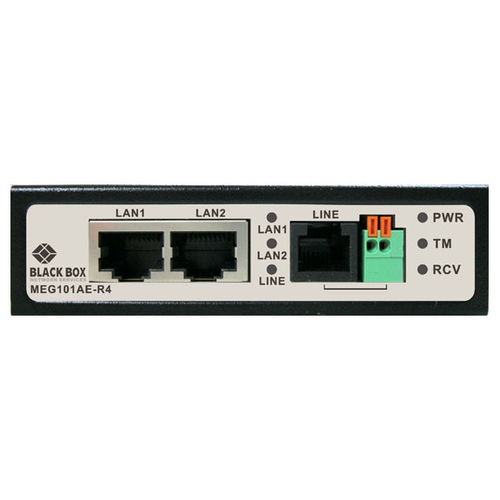

Photo may vary from actual product
VDSL2 Mini Modem, 100 Mbit/s Ethernet Extender over Copper
MEG101AE-R5: Desktop, 2 wires, 100Mbps, 90-240 VAC


VDSL2 Mini Modem, 100 Mbit/s Ethernet Extender over Copper


Connect remote locations to your Ethernet over copper/phone wires with up to 100Mbps


  • Uses 2 copper wires to extend Ethernet over the distance.
  • High bandwidth up to 100Mbps symmetric over 300 meters.
  • Support long reach mode up to 3 km with 24-gauge phone wire at lower speeds.
  • Anti-noise interleave delay to improve signal quality.
  • Supports long packet size up to 1536 bytes.
  • Allows configuration for SNR and frequency band.
  • Integrated surge protection.
  • Selectable CO or CPE mode over DIP switches for point-to-point extensions.
  • Wall mountable.

  Product       Code
Desktop
2 wires
100Mbps

90-240 VAC
  VDSL2 Mini Modem, 100 Mbit/s Ethernet Extender over Copper
VDSL2 Mini Modem, 100 Mbit/s Ethernet Extender over Copper
  MEG101AE-R5 New!
Please order two modems for a point-to-point extension.

Accessories

  Product     Code

  VDSL2 Industrial Bridge - DIN-Rail mounting, 2 wires, 100Mbps, 12 - 48 VDC
VDSL2 Industrial Bridge
  MEG250AE-R2

The VDSL2 Mini Modem is equipped with two 10/100 Mbps Ethernet ports that provide an economical solution to connect remote locations to the central network over just two copper wires beyond the Ethernet limits.

Compliant with VDSL and VDSL2 the Mini Modem supports a maximum bandwidth of 100 Mbps symmetric. Depending on the wire, the VDSL2 Modem allows distances of up to 300-400 meters at 100Mbps or up to 3 kilometers at lower speeds.

For a point-to-point extension, order two of the VDSL2 Mini Modems. Using simple DIP-switches, each unit can be configured in a CO (transmitter) or CPE (receiver) mode.
