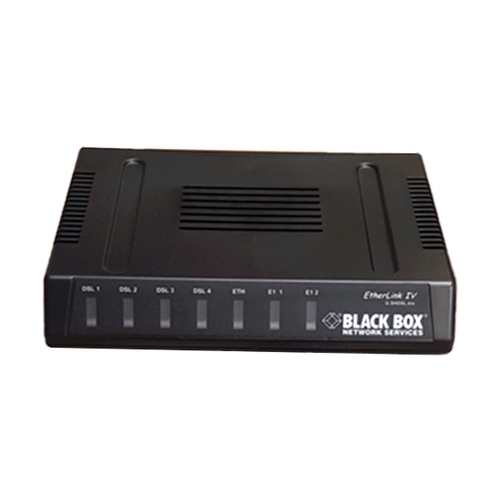

MDS952AE-10BT-R2: Desktop, 2 wires, 5.7Mbps, 48 VDC
Photo may vary from actual product

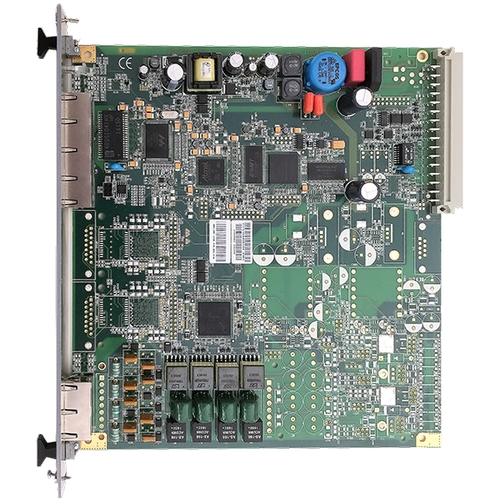

MDS958C-NR-R2: Rack Module, 8 wires, 22.8Mbps, 48 VDC no remote power

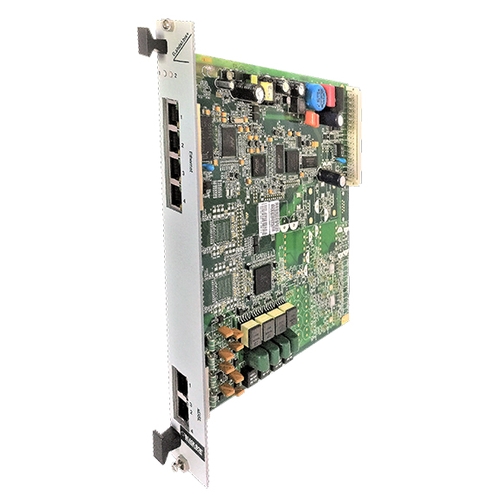

MDS958C-NR-R2: Rack Module, 8 wires, 22.8Mbps, 48 VDC no remote power

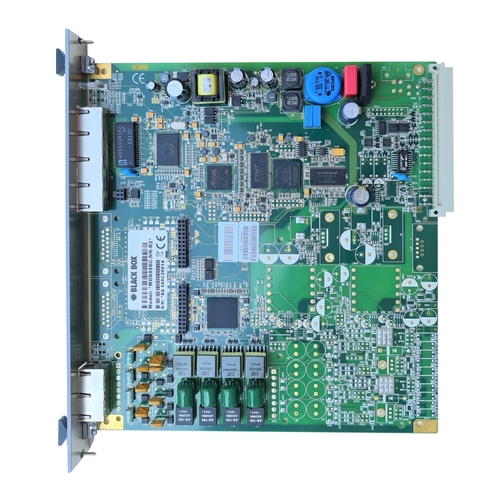

MDS958C-NR-R2: Rack Module, 8 wires, 22.8Mbps, 48 VDC no remote power


EtherLink II


DSL Modems for high-speed or long distance Ethernet connections (Metro Ethernet)


  • G SHDSL BIS and G SHDSL multi-rate line coding.
  • Support 802 3ah Ethernet First Mile.
  • Up to 5.7 Mbps at 3.5km.
  • Fallback mode to G.SHDSL beyond 3.5km.
  • Layer 2 managed Ethernet Switch with VLAN support 10/100BaseT.
  • Spanning Tree (RSTP) for ring applications.
  • Built in cross connect (Multipoint).
  • Console, Telnet and SNMP management.
  • Repeater available.

  Product       Code
Desktop
2 wires
5.7Mbps

48 VDC
  Etherlink II Advanced
Etherlink II Advanced
  MDS952AE-10BT-R2
Rack Module
8 wires
22.8Mbps

48 VDC no remote power
  Etherlink II
Etherlink II
  MDS958C-NR-R2
EtherLink II must be used in pairs.

Accessories

  Product     Code

Power Supply
  Spare Power Supply for Etherlink Series
Spare Power Supply for Etherlink Series
  MDS95XA-PS

This family of DSL Modems and Extenders operates within the 802.3ah standard offering you more bandwidth, compatibility and manageability.
The models available allow the use of 1, 2 or 4 twisted pair lines:

Choice of models
  • MDS952AE-10BT-R2 – connection over 1 twisted pair (2 wires) – up to 5.7 Mbps
  • MDS958C – 8-wire module connects to four 2-wires dektop models (MDS952)

All models are protected against over-voltage resulting from line failures and lightning. If your route is longer than the 802.3ah standard allows, the modems fall back into the standard G.SHDSL operating mode. The same will happen on routes that do not meet the circuit quality needs of the extenders. Even with the G.SHDSL standard a maximum bandwidth of 2.3 Mbps is possible over long distances. These new generation Extenders are capable of operating at up to 30km depending on the quality, length and diameter of your wires. Stable operation of the modems is ensured. Even if some of the wires fail when using the 4 or 8 wire modems the route will still operate with lower bandwidth. The 802.3ah management makes it then possible to check the remote extender.

EtherLINK II Ethernet extenders are sold as single items. Please order a pair of modems for a complete point to point link.
