LPR1111: 1 port PD, 1 port PSE

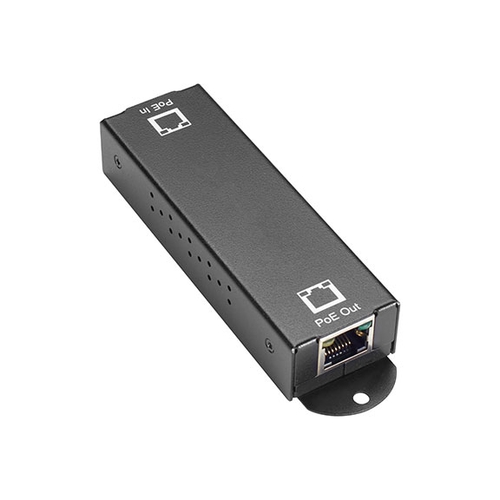

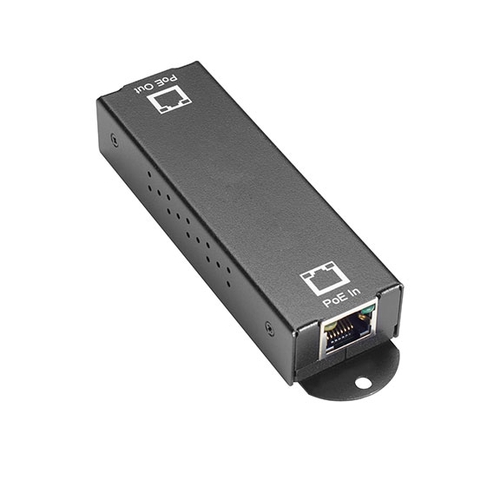

Photo may vary from actual product
LPR1111: 1 port PD, 1 port PSE


10/100/1000BASE-T PoE+ Ethernet Repeater - 802.3at, 1-Port


Extend Gigabit data and PoE up to 600 meters.


  • Extends both Gigabit Ethernet and PoE up to 600 meters, which is far beyond the typical 100-meter limit.
  • Plug-and-play capability, with autosensing and auto-negotiating 10-/100-/1000-Mbps Ethernet ports.
  • Delivers IEEE 802.3af standard power, excellent for VoIP phone systems, remote access points, and IP cameras.
  • Auto MDI/MDI-X means no need for a crossover cable.
  • Works with 802.3af POE or 802.3at POE+.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code


1 port PD, 1 port PSE
  10/100/1000BASE-T PoE+ Ethernet Repeater - 802.3at, 1-Port
10/100/1000BASE-T PoE+ Ethernet Repeater - 802.3at, 1-Port
  LPR1111

This PoE Repeater acts as a PoE extender, enabling you to extend PoE connections beyond the 100-meter Ethernet CATx limit to access faraway PoE devices such as Wifi access points and IP cameras.

The repeater passes along both data and power, so it needs no separate power supply; use one repeater for an additional 100 meters reach or daisy-chain several repeaters for further reach. Up to 5 repeaters can be used in a link for ranges up to 600 meters.

Each PoE extender provides one (1) 10-/100-/1000-Mbps PD input port, and one (1) 10-/100-/1000-Mbps PSE output port.

This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,155,012; 8,902,760; 8,942,107; 9,019,838 and/or 9,049,019.


PoE Power Available with Multiple LPR1111's PoE Repeaters in a link
1x 802.3at PoE Repeater: up to 200m, 0.58A PD Current, 42.4V PD Voltage, 24.592 PD power max.
2x 802.3at PoE Repeater: up to 300m, 0.53A PD Current, 38.0V PD Voltage, 17.900 PD power max.
3x 802.3at PoE Repeater: up to 400m, 0.48A PD Current, 33.7V PD Voltage, 16.176 PD power max.
4x 802.3at PoE Repeater: up to 500m, 0.40A PD Current, 31.4V PD Voltage, 12.560 PD power max.
5x 802.3at PoE Repeater: up to 600m, 0.28A PD Current, 30.8V PD Voltage, 8.624 PD power max.


  • All the values listed here are the MAX.value from tests based on a PoE switch with 56Voutput performed in an ideal lab environment. The actual value may be different due to network environments and the quality of your cable.
