Store home > Networking > Office Networking > PoE > Splitters > Gigabit PoE++ Splitter
LPS2012: 12VDC, 6A
Photo may vary from actual product

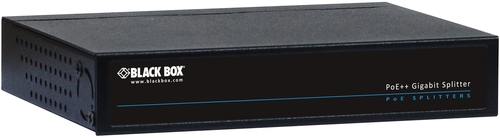

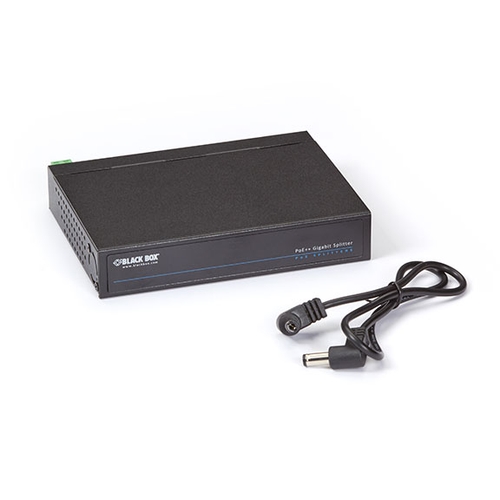

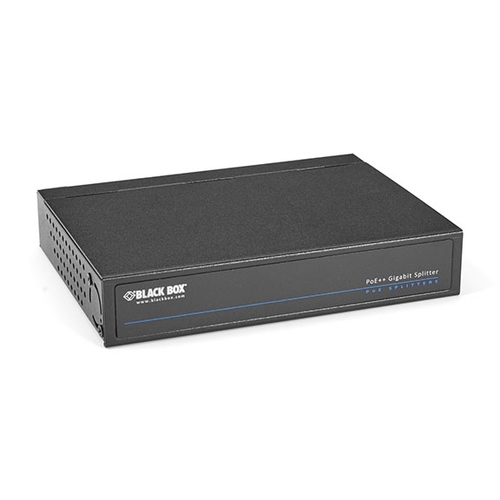

Gigabit PoE++ Splitter
Gigabit PoE++ Splitter
Gigabit PoE++ Splitter


Gigabit PoE++ Splitter


Support high-powered PoE cameras and access points.


  • Splits a PoE or PoE+ signal into separate power and data sources.
  • Complies with the LTPoE++™ standard with up to 90W of input power.
  • Receives up to 90W input power from an LTPoE++ switch or injector.
  • Connect high-powered PTZ cameras, access points, or other PoE devices.
  • Use with newer power-hungy PDs, such as picocells, base stations, even heaters for pan-tilt-zoom cameras.
  • Provides 12 VDC, 6 amps or 24 VDC, 3,2 amps of power output over CATx cable.
  • Smart plug-and-play operation.
  • Put PoE equipment where you need it without worrying about power outlets.
  • Supports Gigabit Ethernet as well as 802.3af PoE and 802.3at PoE+.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code


12VDC, 6A
  Gigabit PoE++ Splitter
Gigabit PoE++ Splitter
  LPS2012

Approvals — FCC Class A, CE, RoHS2

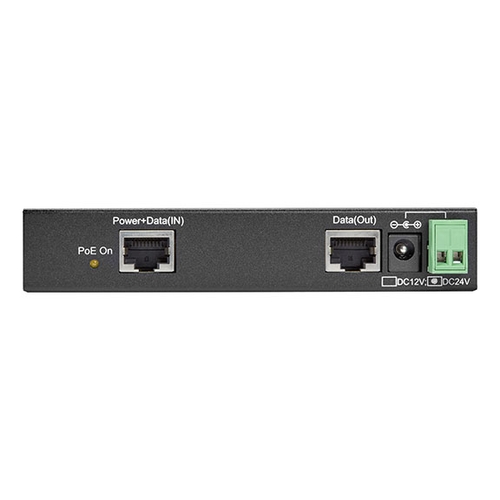

Connectors — (1) RJ-45 input; (1) RJ-45 output; (1) power output DC jack terminal block
Environmental—
Operating temperature: 0 to +40° C (+32 to +104° F);
Storage temperature: -20 to +90° C (-4 to +194° F);
Humidity: 10 to 90% noncondensing
Indicators — LEDs: PoE/PD (PSE connect): On
Power —
Input: LTPoE++ compliant;
Output: LPS2012A: 12 V/6.4 A; LPS2024A: 24 V/3.2 A
Power consumption: 90 watts
Standards — LTPoE++; IEEE 802.3af, 802.3at, 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-TX
Dimensions — 2.4 x 13 x 7.5 cm (0.9"H x 5.1"W x 2.9"D)
Weight — 0.3 kg (0.6 lb.)
