Media Converter 10/100/1000-Mbps Copper to 1000-Mbps Fibre
Photo may vary from actual product
LGC210A-R2: (1) 10/100/1000 Mbps RJ45, 1000BaseX SFP, range dep. on SFP, Mode dep. on SFP, Connector dep. on SFP, 100–240 VAC
LGC210A-R2: (1) 10/100/1000 Mbps RJ45, 1000BaseX SFP, range dep. on SFP, Mode dep. on SFP, Connector dep. on SFP, 100–240 VAC
LGC211A-R2: (1) 10/100/1000 Mbps RJ45, (1) 1000BaseSX MM SC, 550m, Multimode, SC, 100–240 VAC
LGC211A-R2: (1) 10/100/1000 Mbps RJ45, (1) 1000BaseSX MM SC, 550m, Multimode, SC, 100–240 VAC
LGC211A-R2: (1) 10/100/1000 Mbps RJ45, (1) 1000BaseSX MM SC, 550m, Multimode, SC, 100–240 VAC
LGC211A-R2: (1) 10/100/1000 Mbps RJ45, (1) 1000BaseSX MM SC, 550m, Multimode, SC, 100–240 VAC
LGC212A-R2: (1) 10/100/1000 Mbps RJ45, (1) 1000BaseLX SM SC, 10km, Single-mode 1310nm, SC, 100–240 VAC
LGC212A-R2: (1) 10/100/1000 Mbps RJ45, (1) 1000BaseLX SM SC, 10km, Single-mode 1310nm, SC, 100–240 VAC
LGC212A-R2: (1) 10/100/1000 Mbps RJ45, (1) 1000BaseLX SM SC, 10km, Single-mode 1310nm, SC, 100–240 VAC
LGC212A-R2: (1) 10/100/1000 Mbps RJ45, (1) 1000BaseLX SM SC, 10km, Single-mode 1310nm, SC, 100–240 VAC


Media Converter 10/100/1000-Mbps Copper to 1000-Mbps Fibre


Extend a copper-based network via fiber a maximum distance of 80 km through the use of an SFP.


  • Compliant to EN60950, UL62368, and EN62368
  • Converts 10/100/1000BASE-TX to 1000BASE-LX at fiber port speed
  • Use as a standalone unit or with available chassis (LHGC-RACK)
  • Supports frame size of 9000 bytes
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code
(1) 10/100/1000 Mbps RJ45
(1) 1000BaseSX MM SC
550m
Multimode
SC

100–240 VAC
  Media Converter 10/100/1000-Mbps Copper to 1000-Mbps Fibre
Media Converter 10/100/1000-Mbps Copper to 1000-Mbps Fibre
  LGC211A-R2
(1) 1000BaseLX SM SC
10km
Single-mode 1310nm
SC

100–240 VAC
  Media Converter 10/100/1000-Mbps Copper to 1000-Mbps Fibre
Media Converter 10/100/1000-Mbps Copper to 1000-Mbps Fibre
  LGC212A-R2
1000BaseX SFP
range dep. on SFP
Mode dep. on SFP
Connector dep. on SFP

100–240 VAC
  Media Converter 10/100/1000-Mbps Copper to 1000-Mbps Fibre
Media Converter 10/100/1000-Mbps Copper to 1000-Mbps Fibre
  LGC210A-R2

Accessories

  Product     Code

  SFP, 1250-Mbps, SGMII - 100m, RJ-45, CATx
SFP, 1250-Mbps, SGMII
  LFP443
  Media Converter Chassis 14-slot 2U - Chassis, 14 Slots, Dual AC Power Supply
Media Converter Chassis 14-slot 2U
  LHGC-RACK
Power Supply
  Spare Power Supply for LHGC-RACK left side
Spare Power Supply for LHGC-RACK left side
  LHGC-RACK-PS-L
  Spare Power Supply for LHGC-RACK right side
Spare Power Supply for LHGC-RACK right side
  LHGC-RACK-PS-R
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
  SFP, 1250-Mbps - LC, MM 850nm, 550m
SFP, 1250-Mbps
  LFP441
  SFP, 1250-Mbps - LC, Single-mode 1310nm, 20km
SFP, 1250-Mbps
  LFP442
  Gigabit Managed Ethernet Switch - 10-Ports - Full SNMP management, (8) 10/100/1000 RJ45 + (2) 100/1000 RJ45/SFP
Gigabit Managed Ethernet Switch - 10-Ports
  LGB1110A
  Gigabit L2+ Managed Switch - Web GUI + SNMP V1/2/3, (24) 10/100/1000M + (2) 100/1000 RJ45/SFP + (1) console port
Gigabit L2+ Managed Switch
  LGB1126A-R2

Extend your network
Meet your massive networking needs. This media converter lets you extend your copper-based network via fiber to a maximum distance of 80 km through the use of an SFP. Also, it's quick and easy to install.

Support multiple standards
It meets the standard you need it to. It's fully compliant with IEEE802.3, IEEE802.3U, 10/100/1000BASE-TX, and 1000BASE-FX standards.

Status updates

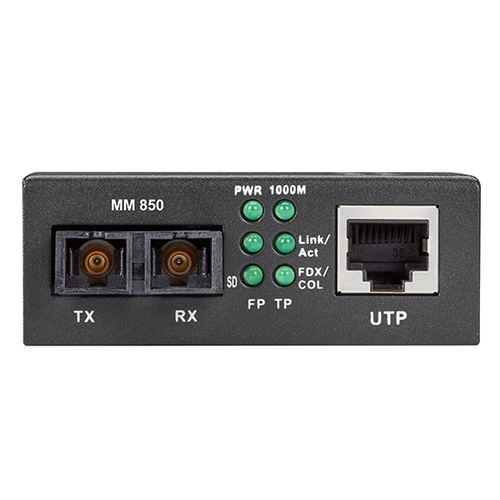

Know how your media converter is performing. Operation status can be locally monitored through a set of diagnostic LEDs located on the front panel.
