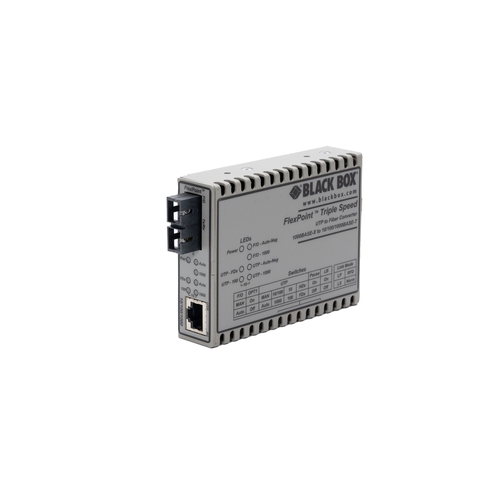

FlexPoint Modular Media Converter
Photo may vary from actual product
LMC1017A-MMSC: Multimode, (1) 10/100/1000 Mbps RJ45, (1) 1000BaseSX MM SC, SC, 550m, 110 VAC
LMC1017A-MMSC: Multimode, (1) 10/100/1000 Mbps RJ45, (1) 1000BaseSX MM SC, SC, 550m, 110 VAC
LMC1017A-MMST: Multimode, (1) 10/100/1000 Mbps RJ45, (1) 1000BaseSX MM ST, ST, 550m, 110 VAC
LMC1017A-SMSC: Singlemode, (1) 10/100/1000 Mbps RJ45, (1) 1000BaseLX SM SC, SC, 12km, 110 VAC
LMC1017A-SMST: Singlemode, (1) 10/100/1000 Mbps RJ45, (1) 1000BaseLX SM ST, ST, 12km, 110 VAC


FlexPoint Modular Media Converter


Extend LAN reach with fiber media converters


  • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs.
  • Compact size.
  • Powered by an AC power supply or the optional rackmountable chassis.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
  • DIP switches enable you to configure port settings.
  • Supports jumbo frames up to 10,240 bytes.
  • Enables you to send data much farther and more securely than what's possible for copper Ethernet.
  • Autonegotiates for speed to achieve the best possible mode of operation.
  • UTP port supports full- and half-duplex operation.
  • To prevent congestion, supports automatic and manual pause function for flow control.
  • Supports jumbo frames up to 10,240 bytes.
  • Remote fault indicators signal loss of link for far-end fault and link fault conditions.
  • Loopback mode supports end-to-end testing.
  • Manual switches give you the option to control port operation.
  • Hardware available for mounting the converter to a wall or a DIN rail.
  • Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.
  • RoHS compliant.
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)

  Product       Code
Multimode
(1) 10/100/1000 Mbps RJ45
(1) 1000BaseSX MM SC
SC
550m

110 VAC
  FlexPoint Modular Media Converter
FlexPoint Modular Media Converter
  LMC1017A-MMSC
(1) 1000BaseSX MM ST
ST
550m

110 VAC
  FlexPoint Modular Media Converter
FlexPoint Modular Media Converter
  LMC1017A-MMST
Singlemode
(1) 10/100/1000 Mbps RJ45
(1) 1000BaseLX SM SC
SC
12km

110 VAC
  FlexPoint Modular Media Converter
FlexPoint Modular Media Converter
  LMC1017A-SMSC
(1) 1000BaseLX SM ST
ST
12km

110 VAC
  FlexPoint Modular Media Converter
FlexPoint Modular Media Converter
  LMC1017A-SMST

Accessories

  Product     Code

  FlexPoint 14-Slot Power Chassis - 19" chassis, 14 Slots, Single 115-230VAC
FlexPoint 14-Slot Power Chassis
  LMC200
  FlexPoint 5-Slot - Rackmount tray, 5 Slots, Without power supply
FlexPoint 5-Slot
  LMC205
Rack/Mount Kit
  FlexPoint Wallmounting Hardware
FlexPoint Wallmounting Hardware
  LMC206-WALL
  DIN Rail Mounting Kit
DIN Rail Mounting Kit
  LMC207-DRM
  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403

FlexPoint™ Media Converters from Black Box are versatile and cost-effective standalone converters that provide flexibility and reliability for your expanding LAN.

The variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.

Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC or DC power supplies.

For easy installation and troubleshooting, LEDs indicate the availability of power, port activity and link status, and duplex mode. Remote fault indicators signal loss of link for far-end fault and link fault conditions. Detection of these indicators or link modes can be propagated to the other port to notify connected end devices of faults.
