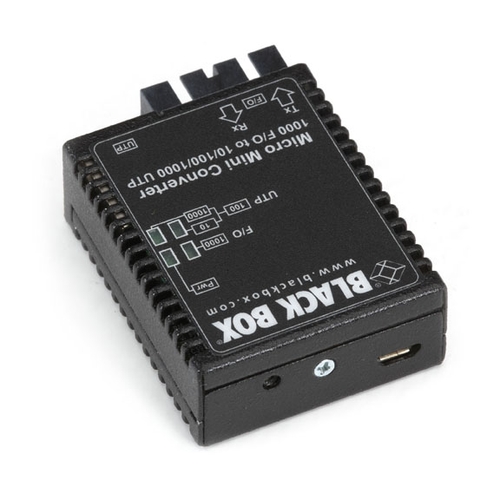

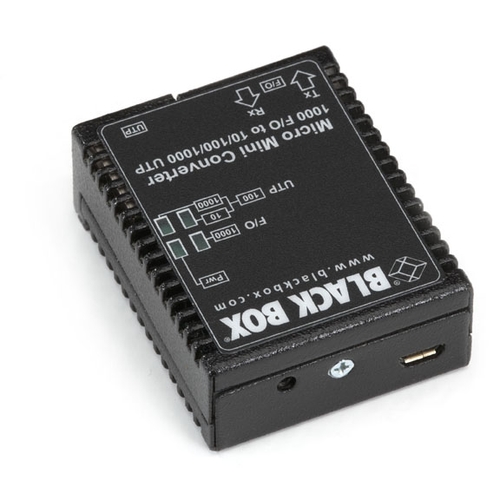

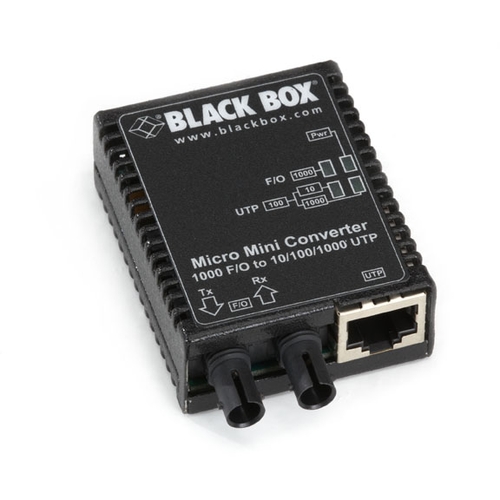

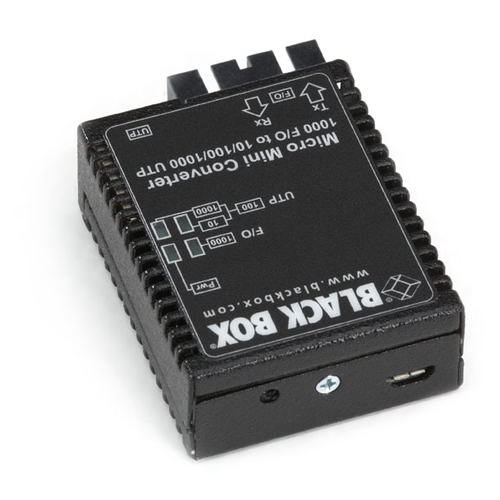

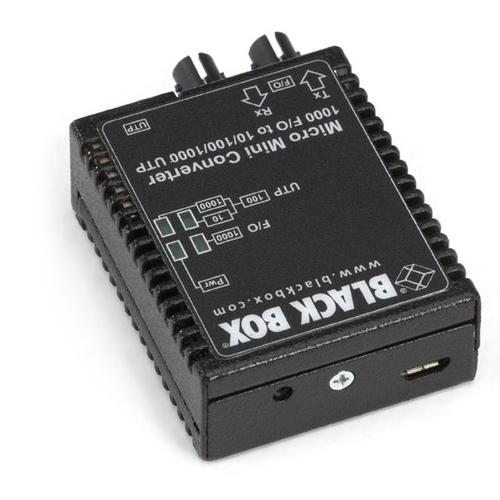

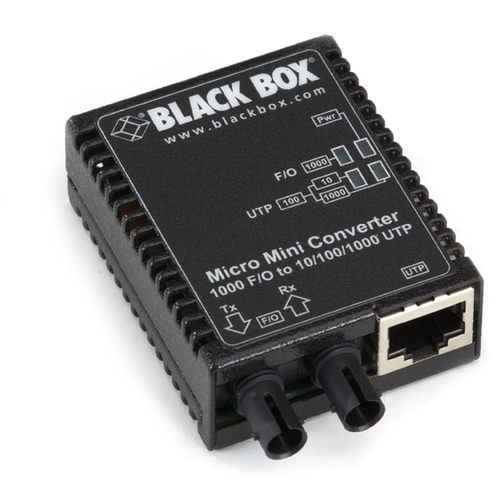

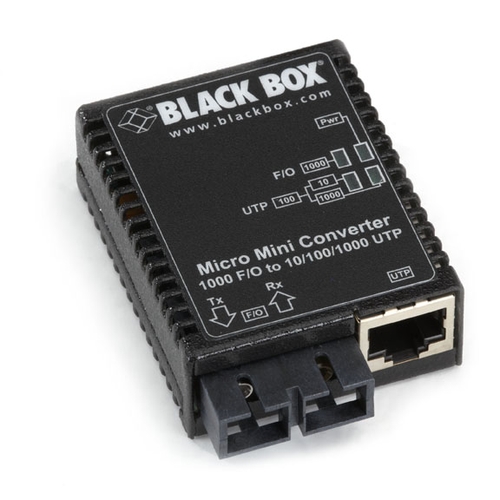

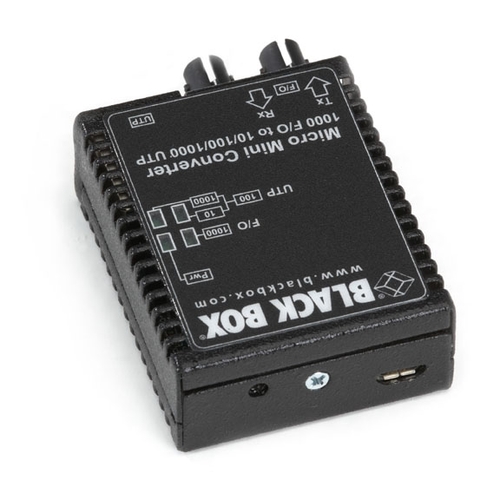

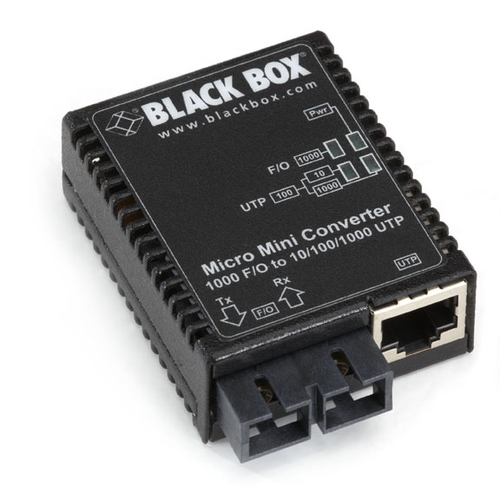

Micro Mini Media Converter 1000FX


10-/100-/1000-Mbps Copper to 1000-Mbps Duplex Fibre


  • Bring fiber to the desktop conveniently and cost-effectively
  • USB-powered for portability, use it with the included power adapter
  • SFP port supports Gigabit Ethernet using 1250-Mbps SFP transceivers
  • UTP port supports 10/100/1000BASE-T
  • Supports Jumbo Ethernet frames up to 10,240 bytes
  • LED indicators for power, UTP, and fiber status
  • Ultra compact, weighing only 2.5 ounces
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)

  Product       Code
Multimode
(1) 10/100/1000 Mbps RJ45
(1) 1000BaseSX MM SC
SC
550m

AC, USB
  Micro Mini Media Converter 1000FX
Micro Mini Media Converter 1000FX
  LMC4002A

AC, USB
  Micro Mini Media Converter 1000FX
Micro Mini Media Converter 1000FX
  LMC4002AE
(1) 1000BaseSX MM ST
ST
550m

AC, USB
  Micro Mini Media Converter 1000FX
Micro Mini Media Converter 1000FX
  LMC4001A

AC, USB
  Micro Mini Media Converter 1000FX
Micro Mini Media Converter 1000FX
  LMC4001AE
Singlemode
(1) 10/100/1000 Mbps RJ45
(1) 1000BaseLX SM SC
SC
12km

AC, USB
  Micro Mini Media Converter 1000FX
Micro Mini Media Converter 1000FX
  LMC4004A
(1) 1000BaseLX SM ST
ST
12km

AC, USB
  Micro Mini Media Converter 1000FX
Micro Mini Media Converter 1000FX
  LMC4003A
Mode dep. on SFP
(1) 10/100/1000 Mbps RJ45
(1) SFP (1000M)
Connector dep. on SFP
range dep. on SFP

AC, USB
  Micro Mini Media Converter 1000FX
Micro Mini Media Converter 1000FX
  LMC4000A

AC, USB
  Micro Mini Media Converter 1000FX
Micro Mini Media Converter 1000FX
  LMC4000AE

Accessories

  Product     Code

  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
  SFP, 1250-Mbps - LC, MM 850nm, 550m
SFP, 1250-Mbps
  LFP441
  SFP, 1250-Mbps - LC, Single-mode 1310nm, 20km
SFP, 1250-Mbps
  LFP442
  SFP, 1250-Mbps, SGMII - 100m, RJ-45, CATx
SFP, 1250-Mbps, SGMII
  LFP443
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
Rack/Mount Kit
  Wallmount Bracket
Wallmount Bracket
  LMC400-WALL

The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical. Weighing only 2.5 ounces and about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fiber connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fiber-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case. The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fiber side, the converter accepts SFPs for connection to a variety of Gigabit Ethernet fiber types. Use it with Black Box 1250-Mbps SFPs (LFP411, LFP412, LFP413, LFP414) or any other standard 1250-Mbps SFP. Because it can be powered through a computer's USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.
