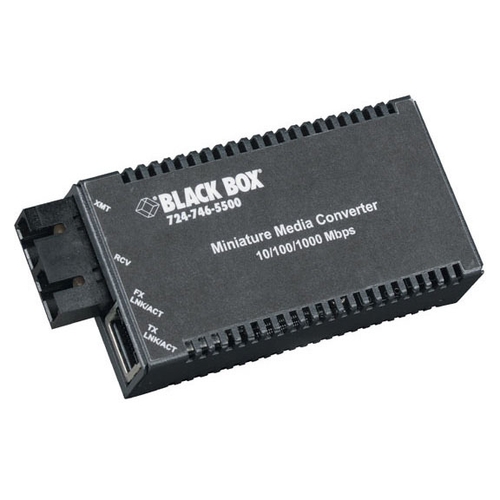

LGC120A-R4: Multimode, (1) 10/100/1000 Mbps RJ45, (1) 1000BaseSX MM SC, SC, 220m, AC/USB/opt chassis
Photo may vary from actual product

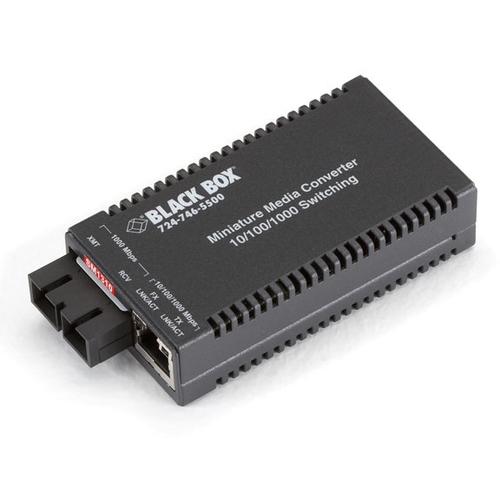

LGC126A-R4: Singlemode, (1) 10/100/1000 Mbps RJ45, (1) 1000Base SSF SM SC (1550RX/1310TX), SC, 10km, AC/USB/opt chassis

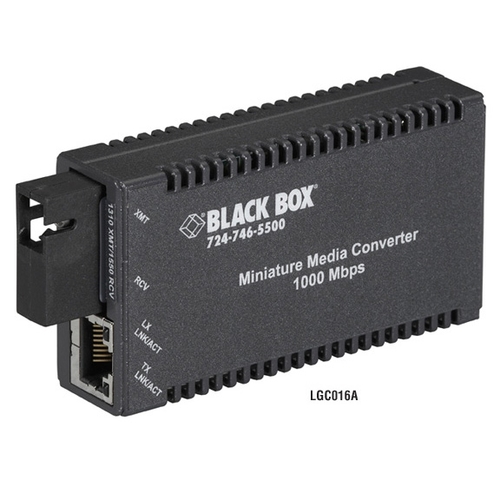

LGC125A-R4: Singlemode, (1) 10/100/1000 Mbps RJ45, (1) 1000Base SSF SM SC (1310RX/1550TX), SC, 10km, AC/USB/opt chassis

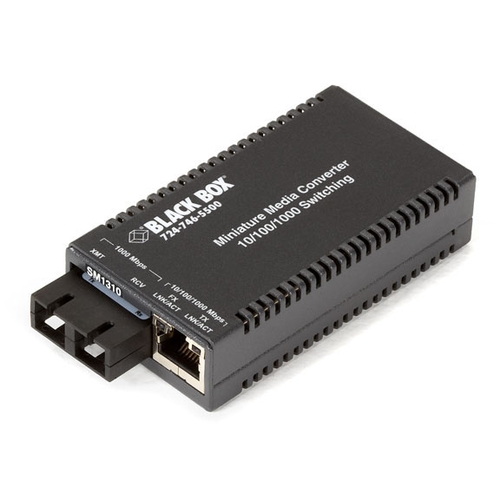

LGC121A-R4: Singlemode, (1) 10/100/1000 Mbps RJ45, (1) 1000BaseLX SM SC, SC, 10km, AC/USB/opt chassis
LGC122A-R4: Singlemode, (1) 10/100/1000 Mbps RJ45, (1) 1000BaseLX SM SC, SC, 40km, AC/USB/opt chassis


MiC 10/100/1000 Mbps Converter


Autosensing Gigabit Miniature Media Converters
These tiny Gigabit converters automatically sense speed on the copper side.


  • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
  • Compact size; measures just 0.8H x 1.8W x 3.4D cm.
  • Powered by a universal AC power supply or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
  • Warranty: 6 Year Double Diamond™ Warranty (Standard)

  Product       Code
Multimode
(1) 10/100/1000 Mbps RJ45
(1) 1000BaseSX MM SC
SC
220m

AC/USB/opt chassis
  MiC 10/100/1000 Mbps Converter
MiC 10/100/1000 Mbps Converter
  LGC120A-R4
Singlemode
(1) 10/100/1000 Mbps RJ45
(1) 1000BaseLX SM SC
SC
10km

AC/USB/opt chassis
  MiC 10/100/1000 Mbps Converter
MiC 10/100/1000 Mbps Converter
  LGC121A-R4
40km

AC/USB/opt chassis
  MiC 10/100/1000 Mbps Converter
MiC 10/100/1000 Mbps Converter
  LGC122A-R4
(1) 1000Base SSF SM SC (1310RX/1550TX)
SC
10km

AC/USB/opt chassis
  MiC 10/100/1000 Mbps Converter
MiC 10/100/1000 Mbps Converter
  LGC125A-R4
(1) 1000Base SSF SM SC (1550RX/1310TX)
SC
10km

AC/USB/opt chassis
  MiC 10/100/1000 Mbps Converter
MiC 10/100/1000 Mbps Converter
  LGC126A-R4
Copper to Single Strand Fibre Modules must be used in pairs. Order (1) 1310-nm TX/1550-nm RX and (1) 1550-nm TX/1310-nm RX module for each connection.

Accessories

  Product     Code

  MiC Converter Rack - Rackmount power tray, 18 Slots, Internal AC power supply
MiC Converter Rack
  LHC018A-AC-R2
Rack/Mount Kit
  DIN Rail Clip for Media Converters
DIN Rail Clip for Media Converters
  LXC-DR
Adaptors & Adaptor Cables
  USB Power Cable
USB Power Cable
  LHC021A

  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
  • Easy to install. Just plug and play.
  • Autosensing copper ports make them perfect for migrating networks from Ethernet to Fast Ethernet all the way to Gigabit Ethernet.
  • Compact size.
  • Supports distances of 10 kilometers (6.2 mi.).

For extra versatility, you can power the Miniature Media Converter through the external AC power supply included with each converter or through the optional rackmount PowerTray (sold separately).

Like to install state-of-the-art networks

But not all of your devices work with Gigabit speed? These compact Triple-speed media converters provide the perfect solution for you. Autosensing copper ports make them perfect for migrating networks from Ethernet to Fast Ethernet all the way to Gigabit Ethernet.
Use inexpensive CAT5e twisted-pair cable on the copper side. You never need to worry about what kind of cable to use. The Auto MDI/MDI-X automatically adapts to straight or cross pinned cables.
On the fibre end the speed is always 1000 Mbps Gigabit enabling long distance transmissions over 10, 40 or even 70 kilometers depending on the model. If you are short with fibres, choose the WDM models for a very economic use of fibre and high bandwidth. For WDM applications you need to order the media converts in complementary pairs i.e. combine a 1310TX/1550RX model on one end with an 1550TX/1310RX model on the other end.

Power the media converters three ways:

Simply through the included external 100-240VAC AC power supply. Or alternate you may also use the optional USB Power Adapter Cable (LHC021A), which plugs into a PCs USB port allowing quick Fibre-To-The-Desk installations. For growing networks use the optional 19" rack mount PowerTray. The PowerTray with included rack mount ears provides power for up to 18 converters in only 5U of rack space.
These media converters combine a professional technology in a compact space saving design. And the installation is easy with just plug and play

Use these media converters together with the one of the Gigabit Switches from Black Box and work all the way from your workstation to your data center with Gigabit technology.
