Media Converter 10/100M Copper to 100M Fibre, Pure Networking Series

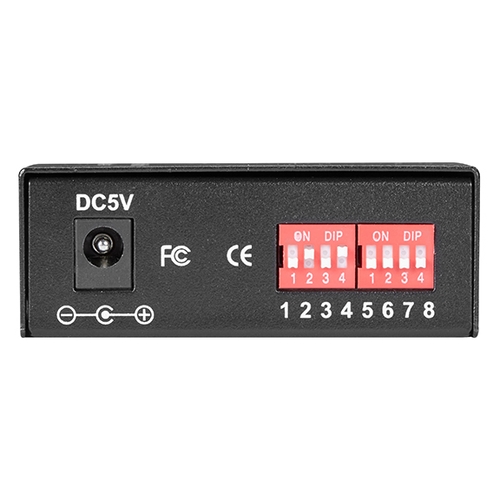

Photo may vary from actual product
LHC212A: 10/100BaseTX, 100BaseFX, 20km, Single-mode 1310nm, SC, 100–240 VAC
LHC212A: 10/100BaseTX, 100BaseFX, 20km, Single-mode 1310nm, SC, 100–240 VAC
LHC212A: 10/100BaseTX, 100BaseFX, 20km, Single-mode 1310nm, SC, 100–240 VAC
LHC211A: 10/100BaseTX, 100BaseFX, 2km, Multimode, SC, 100–240 VAC
LHC211A: 10/100BaseTX, 100BaseFX, 2km, Multimode, SC, 100–240 VAC
LHC211A: 10/100BaseTX, 100BaseFX, 2km, Multimode, SC, 100–240 VAC
LHC210A: 10/100BaseTX, 100BaseFX, range dep. on SFP, Mode dep. on SFP, Connector dep. on SFP, 100–240 VAC
LHC210A: 10/100BaseTX, 100BaseFX, range dep. on SFP, Mode dep. on SFP, Connector dep. on SFP, 100–240 VAC
LHC210A: 10/100BaseTX, 100BaseFX, range dep. on SFP, Mode dep. on SFP, Connector dep. on SFP, 100–240 VAC
LHC211A: 10/100BaseTX, 100BaseFX, 2km, Multimode, SC, 100–240 VAC
LHC212A: 10/100BaseTX, 100BaseFX, 20km, Single-mode 1310nm, SC, 100–240 VAC


Media Converter 10/100M Copper to 100M Fibre, Pure Networking Series


Quickly convert 10/100BASE-TX to 100BASE-FX


  • Extend LAN reach beyond 100 meter limit of copper CATx cabling by converting links to fibre.
  • Use fibre to the desk for top secret data networks to prevent eavesdropping and RFI interference using media converters at the desktop.
  • 10-Mbps and 100-Mbps data forward rates.
  • Know operation status through LEDs on front panel.
  • Switch controller and buffer memory.
  • Fully compliant with IEEE802.3, IEEE802.3U, 10/100BASE-TX, 100BASE-FX.
  • Flow Control: IEEE802.3x flow control for full duplex mode. Back-pressure flow control for half duplex mode.
  • Use as a standalone unit or slide-in module.
  • Link fault pass through functionality.

  Product       Code
10/100BaseTX
100BaseFX
2km
Multimode
SC

100–240 VAC
  Media Converter 10/100M Copper to 100M Fibre, Pure Networking Series
Media Converter 10/100M Copper to 100M Fibre, Pure Networking Series
  LHC211A
20km
Single-mode 1310nm
SC

100–240 VAC
  Media Converter 10/100M Copper to 100M Fibre, Pure Networking Series
Media Converter 10/100M Copper to 100M Fibre, Pure Networking Series
  LHC212A
range dep. on SFP
Mode dep. on SFP
Connector dep. on SFP

100–240 VAC
  Media Converter 10/100M Copper to 100M Fibre, Pure Networking Series
Media Converter 10/100M Copper to 100M Fibre, Pure Networking Series
  LHC210A

Accessories

  Product     Code

  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403
  Media Converter Chassis 14-slot 2U - Chassis, 14 Slots, Dual AC Power Supply
Media Converter Chassis 14-slot 2U
  LHGC-RACK
Power Supply
  Spare Power Supply for LHGC-RACK left side
Spare Power Supply for LHGC-RACK left side
  LHGC-RACK-PS-L
  Spare Power Supply for LHGC-RACK right side
Spare Power Supply for LHGC-RACK right side
  LHGC-RACK-PS-R

High-quality media conversion
These media converters get your copper-based network where it needs to go. They let you extend your copper-based network via fibre to a maximum distance of 120 km through the use of an SFP (LHC210A), providing your deployment with the connectivity it needs.

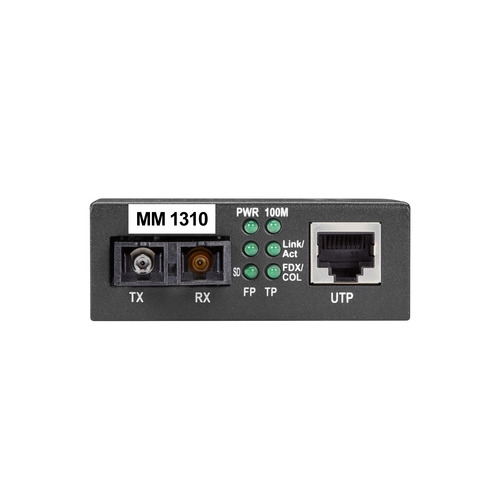

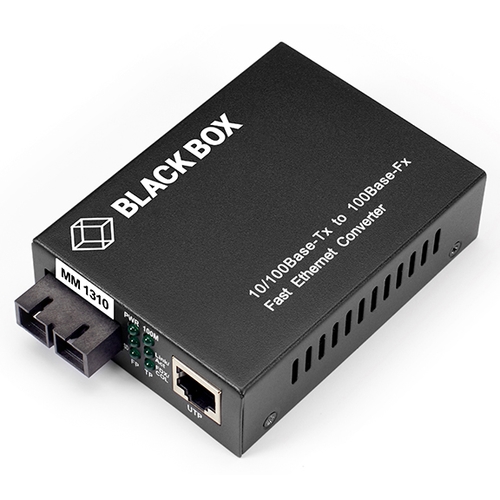

LHC211A easily converts 10/100BASE-TX to 100BASE-FX Multimode SC over distances up to 2km.

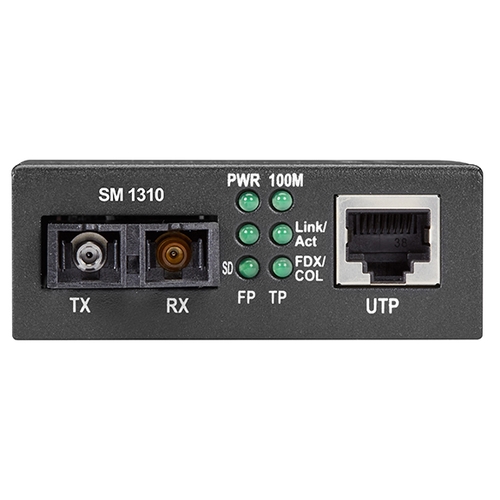

LHC212A converts 10/100BASE-TX to 100BASE-FX Singlemode SC (1310-nm) up to 20km

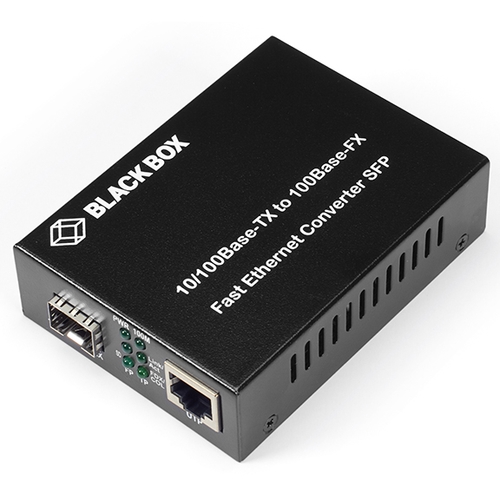

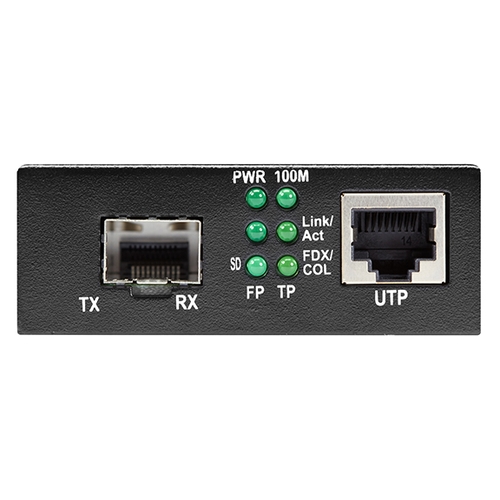

LHC210A: converters 10/100BASE-TX to 10/100 Mbps Fibre through a flexible SFP port that can be populated with a multimode or single-mode SFP transceiver.

Support multiple standards
Meets whatever standard you need it to. It’s fully compliant with IEEE802.3, IEEE802.3U, 10/100BASE-TX and 100BASE-FX.

Straightforward installation
The media converters easily install with plluag-and-play technology into your network.
Use them in a stand-alone application or consolidate up to 14 converter in the chassis LHGC-Rack. The installation is quick and easy.

Status updates
Know how your media converter is performing. Operation status can be locally monitored through a set of diagnostic LEDs located on the front panel.

Know link media issues immediately
Features helpful Link Fault Pass Through (LFP) functionality. LFP immediately alarms administrators to the problem with the link media and provides an efficient solution to monitor the net.
