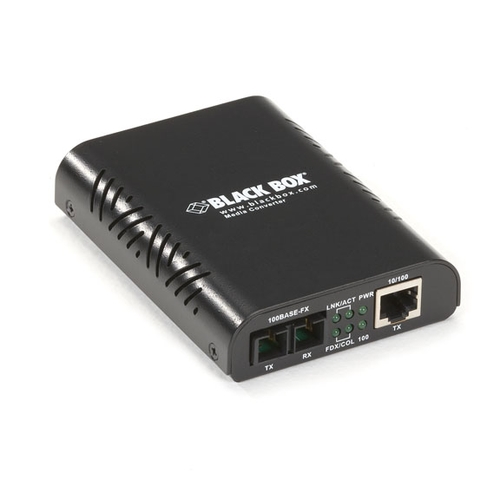

LBMC300-MMSC: (1) 10/100 Mbps RJ45, (1) 100BaseFX MM SC, 2km, Multimode, SC, AC

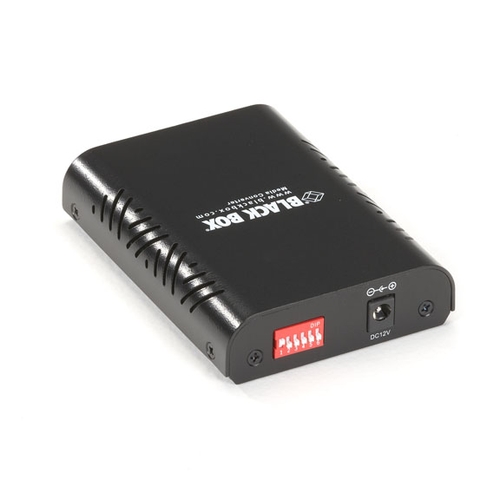

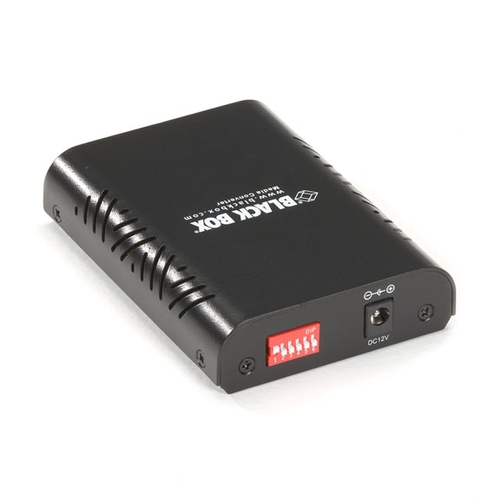

Photo may vary from actual product
LBMC300-MMSC: (1) 10/100 Mbps RJ45, (1) 100BaseFX MM SC, 2km, Multimode, SC, AC

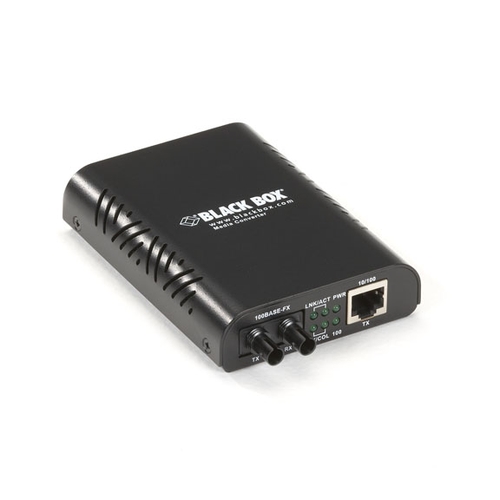

LBMC300-MMST: (1) 10/100 Mbps RJ45, (1) 100BaseFX MM ST, 2km, Multimode, ST, AC
LBMC300-MMST: (1) 10/100 Mbps RJ45, (1) 100BaseFX MM ST, 2km, Multimode, ST, AC


LinkGain 10/100BASE-TX to 100BASE-FX Media Converter


Extend your network over multimode fibre


  • Extends your network up to 2 kilometers over multimode fibre.
  • Plug-and-play installation.
  • Use as a standalone unit or rackmount in the 16-Slot LinkGain Chassis.
  • Link Fault Pass Through (LFP) shuts down a link if the other side fails.
  • Auto-sensing 10-/100-Mbps copper ports feature MDI/MDI-X.
  • Must be used in pairs.

  Product       Code
(1) 10/100 Mbps RJ45
(1) 100BaseFX MM SC
2km
Multimode
SC

AC
  LinkGain 10/100BASE-TX to 100BASE-FX Media Converter
LinkGain 10/100BASE-TX to 100BASE-FX Media Converter
  LBMC300-MMSC
(1) 100BaseFX MM ST
2km
Multimode
ST

AC
  LinkGain 10/100BASE-TX to 100BASE-FX Media Converter
LinkGain 10/100BASE-TX to 100BASE-FX Media Converter
  LBMC300-MMST
Must be used in pairs.

Connectors —
(1) pair SC or ST,
(1) RJ-45
Power — External 100-240-VAC power supply, 1.92 watts maximum
Size — 2.3H x 10.9W x 8.1D cm (0.9"H x 4.3"W x 3.2"D)
Weight — 0.2 kg (0.3 lb.)
Environmental —
Operating temperature: 0 to 45° C (32 to 113° F);
Storage temperature: -10 to +70° C (14 to 158° F);
Operating humidity: 5-95%, noncondensing
Approvals — CE, RoHS
