LGC5300A: (1) 10/100/1000 Mbps RJ45, 1000BaseX SFP, range dep. on SFP, Mode dep. on SFP, Connector dep. on SFP, 46-57 VDC
Photo may vary from actual product
PoE Industrial Gigabit Ethernet Media Converter

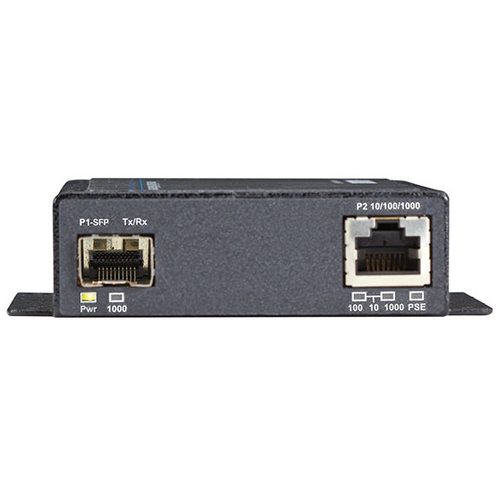

LGC5300A: (1) 10/100/1000 Mbps RJ45, 1000BaseX SFP, range dep. on SFP, Mode dep. on SFP, Connector dep. on SFP, 46-57 VDC

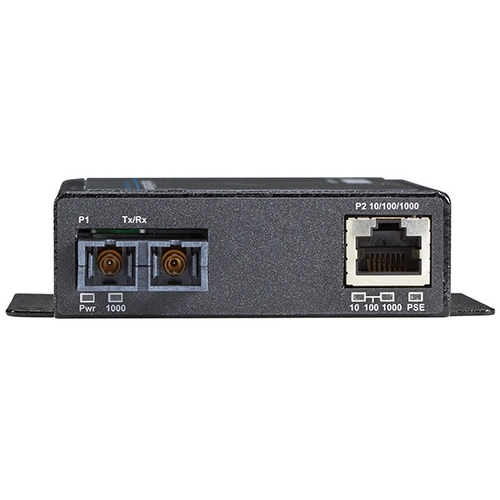

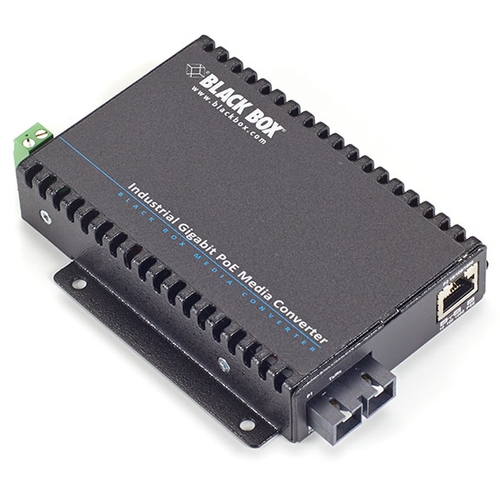

LGC5301A: (1) 10/100/1000 Mbps RJ45, (1) 1000BaseSX MM SC, 550m, Multimode, SC, 46-57 VDC
LGC5301A: (1) 10/100/1000 Mbps RJ45, (1) 1000BaseSX MM SC, 550m, Multimode, SC, 46-57 VDC


PoE Industrial Gigabit Ethernet Media Converter


Industrial strength to power to remote PoE devices.


  • Converts 10/100/1000BASE-T copper to 1000BASE-X fiber.
  • Withstands extreme temperatures of -40° to +65°.
  • Powers your remote security cameras, wireless access points, and more.
  • Acts as power sourcing equipment (PSE) on the copper side to power PoE devices.
  • Supports IEEE 802.3af PoE standards.
  • Multimode, Singlemode or option with an SFP port that can be customized to the interface of your choice.
  • Compatible with legacy pre-IEEE standard powered devices.
  • PoE+ models are also available.
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)

  Product       Code
(1) 10/100/1000 Mbps RJ45
(1) 1000BaseSX MM SC
550m
Multimode
SC

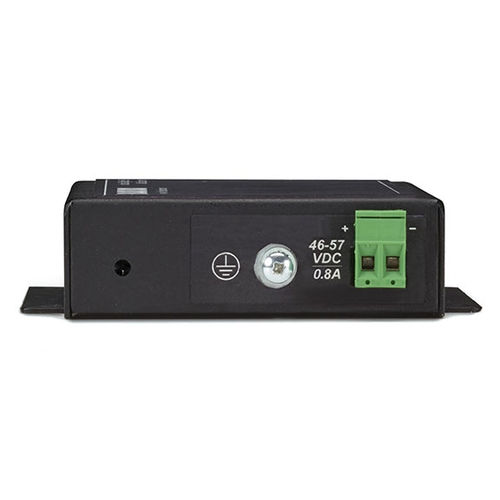

46-57 VDC
  PoE Industrial Gigabit Ethernet Media Converter
PoE Industrial Gigabit Ethernet Media Converter
  LGC5301A
1000BaseX SFP
range dep. on SFP
Mode dep. on SFP
Connector dep. on SFP

46-57 VDC
  PoE Industrial Gigabit Ethernet Media Converter
PoE Industrial Gigabit Ethernet Media Converter
  LGC5300A

Accessories

  Product     Code

  DIN Rail Power Supplies - 24VDC, 120w
DIN Rail Power Supplies
  SDR-120-24
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
  DIN Rail Power Supplies - 48VDC, 120w
DIN Rail Power Supplies
  SDR-120-48
  DIN Rail Power Supplies - 48VDC, 240w
DIN Rail Power Supplies
  SDR-240-48
  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
  DIN Rail Power Supplies - 48VDC, 40W
DIN Rail Power Supplies
  MDR-40-48
Rack/Mount Kit
  DIN Rail Mounting Kit
DIN Rail Mounting Kit
  LMC207-DRM

Use this tough media converters to extend your network over fiber. They support PoE (IEEE 802.3af) and provide up to 15.4W of power per copper port. The devices convert 10/100/1000BASE-T UTP to 1000BASE-X fiber and provide PoE to remote equipment. Because it is Power Sourcing Equipment (PSE), it can link faraway PoE devices via your standard Ethernet cable.

The converters operate in extreme temperatures of -40° to +65° C and are ideal for powering PDs such as security cameras, wireless access points, security cameras, building access devices, and automation equipment in harsh environments. They are especially useful at powering devices in hard-to-reach locations with limited access to AC power outlets, such as ceilings, closets, even the factory floor. The cost of running electrical power to each device is eliminated by sending power over the Ethernet cable.

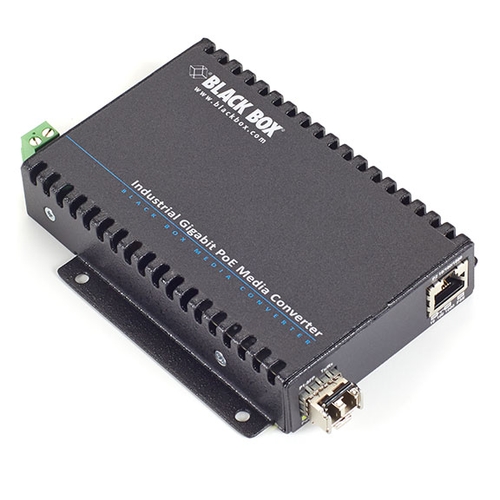

The model with SFP port enables easy adaptability to different fiber types, multimode or single-mode, even Gigabit copper, depending on the SFP transceiver you use.

Other features include link modes, which can propagate link faults from fiber to copper and copper to fiber. A PoE power reset function disables the power output in the case of a link failure on the receiving end. This gives the powered device two seconds to re-initialize.

This compact media converter can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. It can also be mounted on a 1U 19" rackmount shelf.
