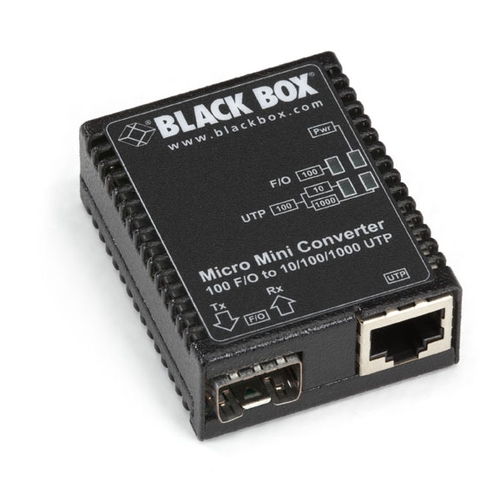

LMC400A: (1) 10/100/1000 Mbps RJ45, (1) 100M SFP, range dep. on SFP, Mode dep. on SFP, Connector dep. on SFP, AC
Photo may vary from actual product
LMC400A: (1) 10/100/1000 Mbps RJ45, (1) 100M SFP, range dep. on SFP, Mode dep. on SFP, Connector dep. on SFP, AC
LMC404A: (1) 10/100/1000 Mbps RJ45, (1) 100BaseFX SM SC, 30km, Singlemode, SC, AC, USB

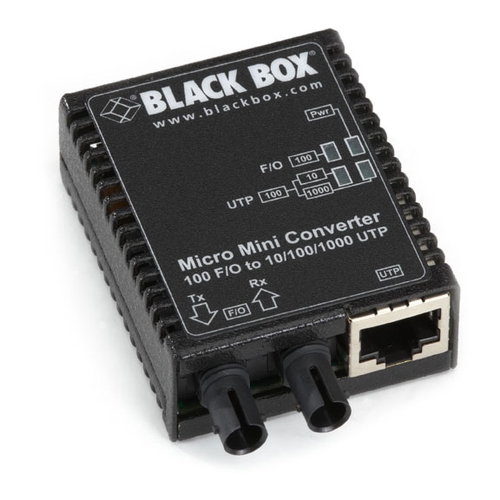

LMC401A: (1) 10/100/1000 Mbps RJ45, (1) 100BaseFX MM ST, 5km, Multimode, ST, AC
LMC401A: (1) 10/100/1000 Mbps RJ45, (1) 100BaseFX MM ST, 5km, Multimode, ST, AC

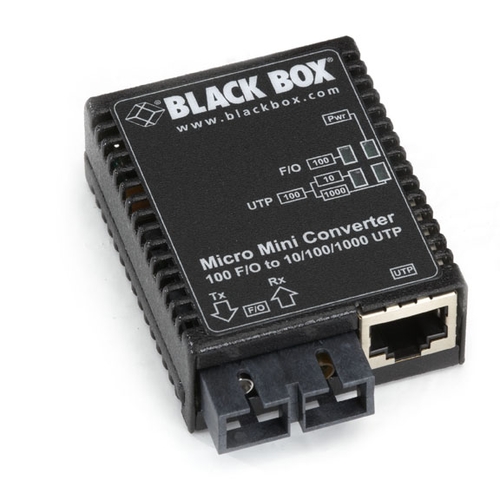

LMC402A: (1) 10/100/1000 Mbps RJ45, (1) 100BaseFX MM SC, 5km, Multimode, SC, AC
LMC403A: (1) 10/100/1000 Mbps RJ45, (1) 100BaseFX SM ST, 30km, Multimode, ST, AC, USB
LMC403A: (1) 10/100/1000 Mbps RJ45, (1) 100BaseFX SM ST, 30km, Multimode, ST, AC, USB
LMC404A: (1) 10/100/1000 Mbps RJ45, (1) 100BaseFX SM SC, 30km, Singlemode, SC, AC, USB
LMC402A: (1) 10/100/1000 Mbps RJ45, (1) 100BaseFX MM SC, 5km, Multimode, SC, AC
LMC402A: (1) 10/100/1000 Mbps RJ45, (1) 100BaseFX MM SC, 5km, Multimode, SC, AC
LMC402A: (1) 10/100/1000 Mbps RJ45, (1) 100BaseFX MM SC, 5km, Multimode, SC, AC

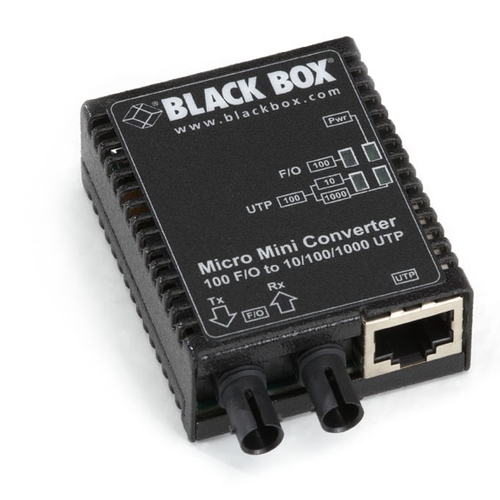

Micro Mini Media Converter 100FX


10-/100-/1000Mbps Copper to 100-Mbps Duplex Fibre


  • Bring fibre to the desktop conveniently and cost-effectively.

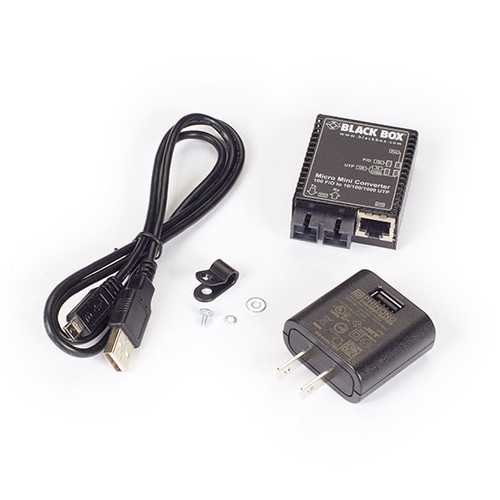

  • USB-powered for portability, or use it with the included power adapter.
  • Plug-and-play capability with autonegotiation.
  • UTP port supports 10/100/1000BASE-T.
  • Supports Jumbo Ethernet frames up to 10.240 bytes.
  • LED indicators for power, UTP, and fibre status.
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)

  Product       Code
(1) 10/100/1000 Mbps RJ45
(1) 100BaseFX MM SC
5km
Multimode
SC

AC
  Micro Mini Media Converter 100FX
Micro Mini Media Converter 100FX
  LMC402A

AC
  Micro Mini Media Converter 100FX
Micro Mini Media Converter 100FX
  LMC402AE
(1) 100BaseFX MM ST
5km
Multimode
ST

AC
  Micro Mini Media Converter 100FX
Micro Mini Media Converter 100FX
  LMC401A

AC
  Micro Mini Media Converter 100FX
Micro Mini Media Converter 100FX
  LMC401AE
(1) 100BaseFX SM SC
30km
Singlemode
SC

AC, USB
  Micro Mini Media Converter 100FX
Micro Mini Media Converter 100FX
  LMC404A

AC, USB
  Micro Mini Media Converter 100FX
Micro Mini Media Converter 100FX
  LMC404AE
(1) 100BaseFX SM ST
30km
Multimode
ST

AC, USB
  Micro Mini Media Converter 100FX
Micro Mini Media Converter 100FX
  LMC403A
(1) 100M SFP
range dep. on SFP
Mode dep. on SFP
Connector dep. on SFP

AC
  Micro Mini Media Converter 100FX
Micro Mini Media Converter 100FX
  LMC400A

Accessories

  Product     Code

Rack/Mount Kit
  Wallmount Bracket
Wallmount Bracket
  LMC400-WALL
  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403

The Micro Mini Media Converter is ideal for bringing fibre to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical.

Weighing only 70 gramms and having about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fibre connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fibre-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case.

The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fibre side, the converter has an ST or SC connector for connection to single-mode or multimode. On the fibre side, LMC400A accepts SFPs for connection to a variety of Fast Ethernet fibre types. Use 155-Mbps SFPs.

Because it can be powered through a computer’s USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fibre in areas where a spare power outlet may not be available. When plugged into a computer’s USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.
