MiC PoE PD 10-100 Converter

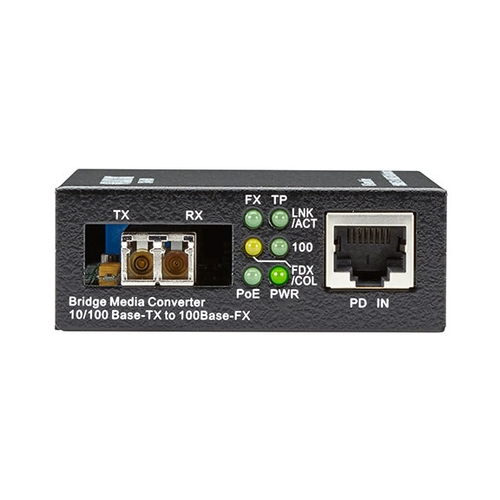

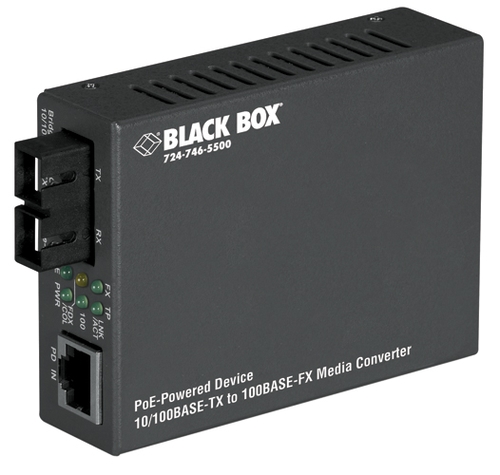

Photo may vary from actual product
LPD504A: (1) 10/100 Mbps RJ45, (1) 100BaseFX MM LC, 2km, Multimode, LC, AC
LPD504A: (1) 10/100 Mbps RJ45, (1) 100BaseFX MM LC, 2km, Multimode, LC, AC
LPD504A: (1) 10/100 Mbps RJ45, (1) 100BaseFX MM LC, 2km, Multimode, LC, AC


MiC PoE PD 10-100 Converter


Compact copper to fibre converters powered over Ethernet


  • Translate 10/100M copper to 100M fibre connections.
  • Connect PoE switches, mid-span hubs and other 802.3af PSE.
  • Link fault propagation enhances link integrity.
  • Fault detection prevents from data transmission over faulty links.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code
(1) 10/100 Mbps RJ45
(1) 100BaseFX MM LC
2km
Multimode
LC

AC
  MiC PoE PD 10-100 Converter
MiC PoE PD 10-100 Converter
  LPD504A

Bridge long distance Fast Ethernet fibre optic segments over Ethernet or Fast Ethernet copper cabling without the need for a power source. These media converters are compatible with the 802.3af Power over Ethernet standard and draw their power via an UTP cable connected to a PoE power source equipment, such as our PoE L2 Managed Gigabit Ethernet Switch (LPB200A). This setup makes the converter ideal for remote areas of a network without AC power outlets.

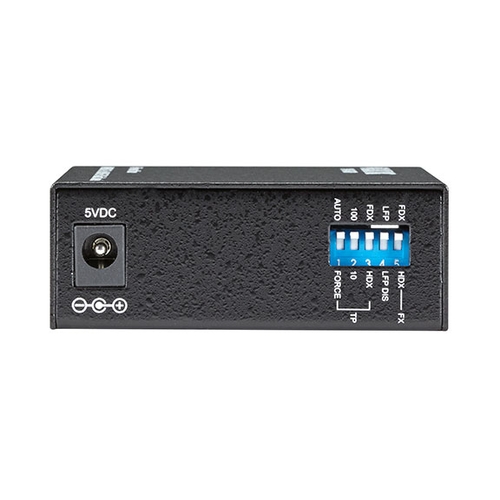

The configuration of the units is quick and easy doing over DIP-swicthes
