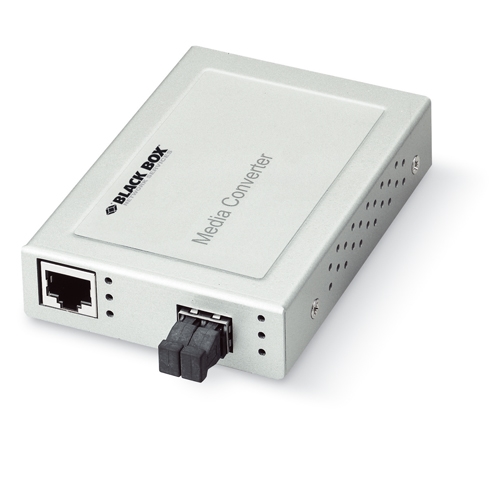

XS 10-100 Converter
Photo may vary from actual product


XS 10-100 Converter


XS 10/100 Mbps Media Converters - Ultra-compact Design


  • UTP port supports auto-MDIX and autonegotiation.
  • Use UTP port with up to 100 metres UTP/STP cable.
  • HDX/FDX operation of fibre switch-controlled.
  • Flow control capability.
  • Optionally, DIN-Rail or Wall mountable .
  • Expandable into 19" XS Media Conversion System.

  Product       Code
(1) 10/100 Mbps RJ45
(1) 100BaseFX MM SC
2km
Multimode
SC

AC
  XS 10-100 Converter
XS 10-100 Converter
  LMCS202AE-SC
(1) 100BaseFX MM ST
2km
Multimode
ST

AC
  XS 10-100 Converter
XS 10-100 Converter
  LMCS202AE-ST
(1) 100BaseFX SM SC
20km
Singlemode
SC

AC
  XS 10-100 Converter
XS 10-100 Converter
  LMCS203AE-SC20

Accessories

  Product     Code

Rack/Mount Kit
  Kit for wall mounting LMCS2xx and LGE217
Kit for wall mounting LMCS2xx and LGE217
  LGE200-WALL

These media converters are designed to bridge a 10/100BASE-T signal to a 100BASE-FX signal. Use them to extend the connection distance between two Fast Ethernet twisted-pair devices via fibre cable transparently with no performance degradation.

This converter series is based on a switching hub design. It supports auto negotiation and flow control functions on the twisted-pair port. Different types of fibre connectors are available: SC and ST for multimode or SC for single-mode cables.

The XS Media Converters feature an aesthetically pleasing design and informative LEDs that show you the status of your link.

You can use the XS Media Converters "right out of the box" as a standalone device, or you can order a wall or DIN rail mounting kit (sold separately) or even a 16-slot rack chassis. For additional reliability and stability, add a redundant power supply for the 16-slot rack chassis.
