Store home > Networking > Office Networking > Media Converters > Desktop > MiC 10-100 WDM Converter
LHC028A-R4: (1) 10/100 Mbps RJ45, (1) 100BaseFX SSF SM SC 1310TX/1550RX, 20km, SM WDM, SC, AC, USB

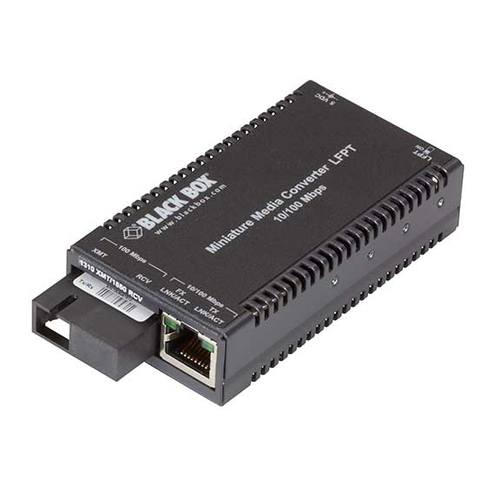

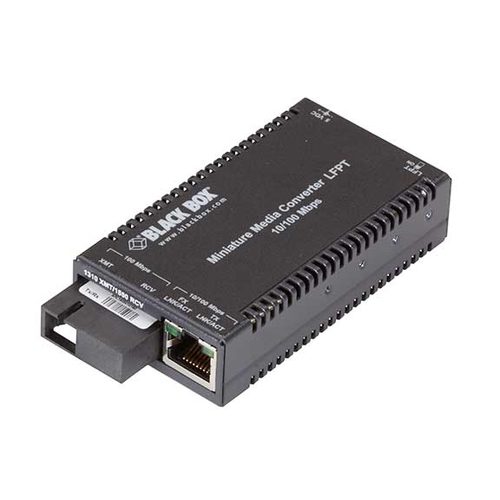

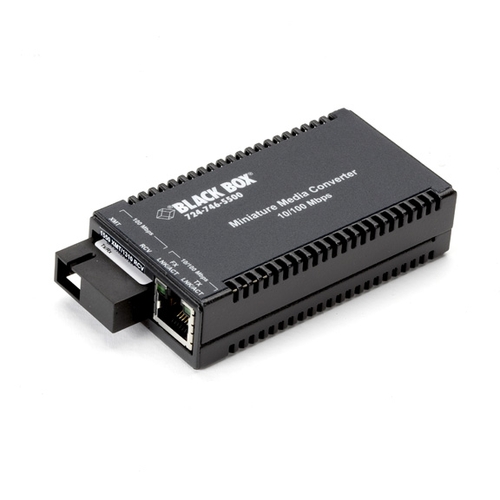

Photo may vary from actual product
LHC029A-R4: (1) 10/100 Mbps RJ45, (1) 100BaseFX SSF SM SC 1550TX/1310RX, 20km, SM WDM, SC, AC, USB
LHC043A-R4: (1) 10/100 Mbps RJ45, (1) 100BaseFX SSF MM SC 1550TX/1310RX, 2km, MM WDM, SC, AC, USB
LHC043A-R4: (1) 10/100 Mbps RJ45, (1) 100BaseFX SSF MM SC 1550TX/1310RX, 2km, MM WDM, SC, AC, USB


MiC 10-100 WDM Converter


10/100Mbps Single Strand Fiber Miniature Media Converter - Perfect for bringing fiber to the desktop


  • Converts 10Base-T/100BASE-TX to 100BASE-FX.
  • Compact size - just 2H x 4.6W x 8.6D cm.
  • Operates with just one fibre (single strand fibre).
  • Works as standalone or chassis-based converter.

  Product       Code
(1) 10/100 Mbps RJ45
(1) 100BaseFX SSF SM SC 1310TX/1550RX
20km
SM WDM
SC

AC, USB
  MiC 10-100 WDM Converter
MiC 10-100 WDM Converter
  LHC028A-R4
(1) 100BaseFX SSF SM SC 1550TX/1310RX
20km
SM WDM
SC

AC, USB
  MiC 10-100 WDM Converter
MiC 10-100 WDM Converter
  LHC029A-R4
(1) 100BaseFX SSF MM SC 1550TX/1310RX
2km
MM WDM
SC

AC, USB
  MiC 10-100 WDM Converter
MiC 10-100 WDM Converter
  LHC043A-R4
First select the range and then order one of each.

NOTE: Single-strand models must be used in matching pairs—use LHC042A-R4 with LHC043A-R4; use LHC028A-R4 with LHC029A-R4

Accessories

  Product     Code

  MiC Converter Rack - Rackmount power tray, 18 Slots, Internal AC power supply
MiC Converter Rack
  LHC018A-AC-R2
Adaptors & Adaptor Cables
  USB Power Cable
USB Power Cable
  LHC021A
Rack/Mount Kit
  DIN Rail Clip for Media Converters
DIN Rail Clip for Media Converters
  LXC-DR

The Miniature Media Converter (MiC) brings fibre to the desktop more conveniently and at a lower cost than installing fibre NICs. These 10/100Mbps single-strand fibre Ethernet converters are as multimode as well as singlemode version available.By using these single-strand fibre converters you are doubling the capacity of your installed or rented fibres. Universal AC, USB and rackmount AC or DC power options For extra versatility, we offer standard Miniature Media Converters that can be powered through an external AC power supply.
