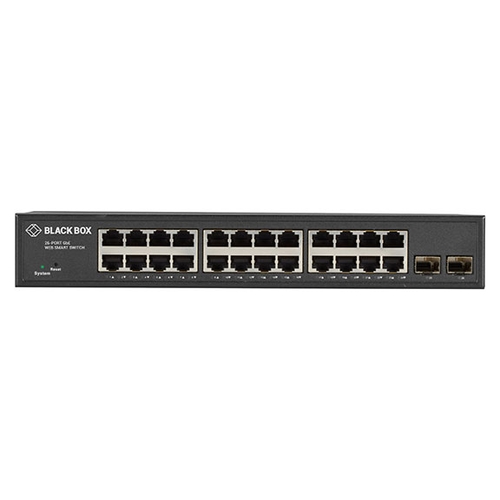

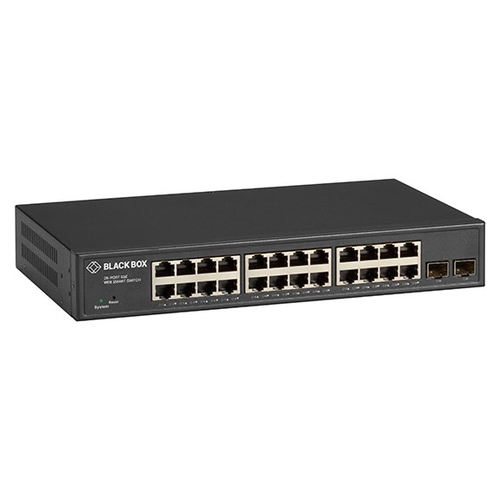

LGB2126A: web smart/SNMP V1V2c, (24) 10/100/1000M RJ45 + (2) 100/1000 SFPs
Photo may vary from actual product
LGB2126A: web smart/SNMP V1V2c, (24) 10/100/1000M RJ45 + (2) 100/1000 SFPs
LGB2126A: web smart/SNMP V1V2c, (24) 10/100/1000M RJ45 + (2) 100/1000 SFPs
LGB2126A: web smart/SNMP V1V2c, (24) 10/100/1000M RJ45 + (2) 100/1000 SFPs

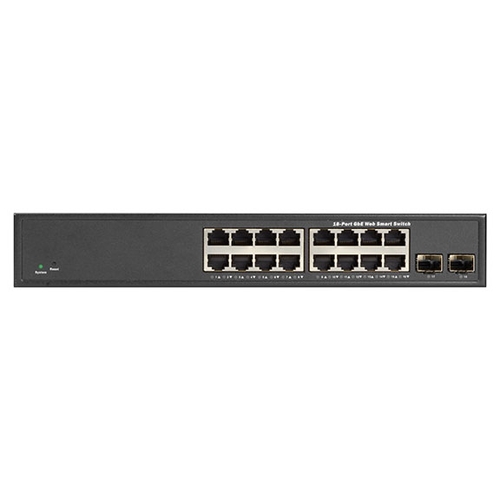

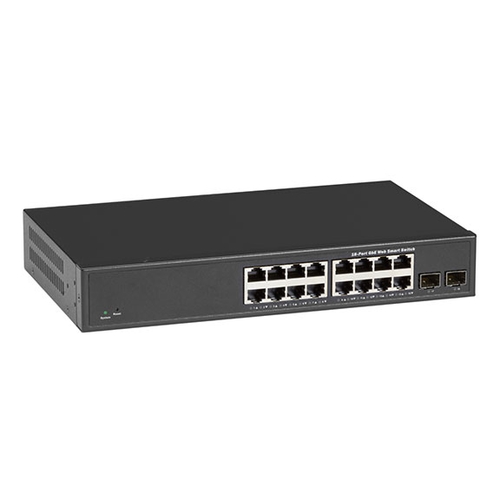

LGB2118A-R2: web smart/SNMP V1V2c, (16) 10/100/1000M RJ45 + (2) 100/1000 SFPs
LGB2118A-R2: web smart/SNMP V1V2c, (16) 10/100/1000M RJ45 + (2) 100/1000 SFPs
LGB2118A-R2: web smart/SNMP V1V2c, (16) 10/100/1000M RJ45 + (2) 100/1000 SFPs


Gigabit Switch, Web Smart Eco Fanless


This layer 2 switch delivers high performance, scalability, and availability for your LAN access network


  • Access up to 26 Gigabit Ethernet or Fast Ethernet devices through your office network.
  • Management interfaces include HTTP/HTTPs, SNMP, Telnet, SSH
  • Includes two SFP ports for fibre Gigabit Ethernet uplinks with an SFP Optical Transceiver.
  • Go green and reduce energy costs. Supports the IEEE 802.3az Energy Efficient Ethernet standard.
  • Web smart features provide easier manageability, security, QoS, and performance.
  • Configurable QoS parameters for prioritizing and managing traffic for real-time applications.
  • It's fanless so it reduces noise, moving parts, and the chance for failure.
  • It reduces power consumption by turning off ports not in use.
  • Port mirroring enables you to isolate network errors without disrupting data flow.
  • Port- and tag-based VLAN.
  • Ports autosense for speed and auto negotiate for duplex.
  • Support loop detection for maintenance.
  • LGB2126A: Embedded Device Management System (DMS) provides easier management , installation and troubleshooting in video surveillance, wireless access point and other applications.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code
web smart/SNMP V1V2c

(16) 10/100/1000M RJ45 + (2) 100/1000 SFPs
  Gigabit Switch, Web Smart Eco Fanless
Gigabit Switch, Web Smart Eco Fanless
  LGB2118A-R2

(24) 10/100/1000M RJ45 + (2) 100/1000 SFPs
  Gigabit Switch, Web Smart Eco Fanless
Gigabit Switch, Web Smart Eco Fanless
  LGB2126A

Accessories

  Product     Code

  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
  SFP, 1250-Mbps - LC, MM 850nm, 550m
SFP, 1250-Mbps
  LFP441
  SFP, 1250-Mbps - LC, Single-mode 1310nm, 20km
SFP, 1250-Mbps
  LFP442
  SFP, 1250-Mbps, SGMII - 100m, RJ-45, CATx
SFP, 1250-Mbps, SGMII
  LFP443
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403

Looking to grow your office network the smart way? The Eco Fanless Gigabit Smart Switch enables you to connect up to 26 Gigabit Ethernet, Fast Ethernet, or Ethernet devices. You can even populate four switch ports with the optional Small Form Factor Pluggable (SFP) Optical Transceivers and connect to fiber-based Gigabit Ethernet.
The switch offers the versatility you need in growing your network the green way. And it offers browser-based management capability plus Quality of Service (QoS), port mirroring, tag- and port-baed VLAN, and bandwidth-aggregation capability.

Choose from two models with (16) 10/100/1000 Gigabit UTP ports, plus (2) SFP ports or (24) 10/100/1000BASE-T UTP ports and (2) SFP Gigabit ports.

Web smart.
The switch has the easy-to-use management capabilities network administrators need. Simply access a switch via your Web browser and log on to monitor, configure, and control each port’s activity. It also supports SNMP V1/V2c.
In addition; the switch supports Quality of Service (QoS), port mirroring, tag- and port-based VLAN.

Put some fiber in your data diet.
The last two ports give you the option to connect to fibre-based Gigabit Ethernet. Add one of our Small Form Factor Pluggable (SFP) Optical Transceivers (sold separately) for short-, medium-, or long-distance fiber optic connections. The transceivers are hot-swappable and available in multimode and single-mode versions.

Keeping it real time.
This switch not only supports 802.1p Priority Queue control on Layer 2, but it also provides enhanced QoS support for real-time applications like Voice over IP (VoIP). And it supports Layer 4 TCP/UDP port and ToS classification.

Mirror, mirror on the port.
Port mirroring copies traffic from one specific port to a second target port. This mechanism enables you to track network errors or abnormal packet transmissions without interrupting the flow of data. All ports on the switch are capable of port mirroring.

The traffic report.
You can use VLAN to isolate traffic between different users and thus provide better security. Plus VLAN enables you to confine the broadcast traffic to the same VLAN broadcast domain to boost network performance. In addition, IGMP V1/V2 snooping limits bandwidth-intensive multicast traffic to only the requesters.

Life in the fast lane.
The switch enables you to combine ports to create a multilink, load-sharing trunk. Port trunks are useful for switch-to-switch cascading, which provides very fast, full-duplex speeds for high-volume communications.

All ports are autosensing for speed and autonegotiating for duplex. The switch's Auto MDI/MDI-X feature means you never need a crossover cable. Furthermore, the switch supports IEEE 802.x flow control for full-duplex mode and collision-based backpressure for half-duplex mode.
